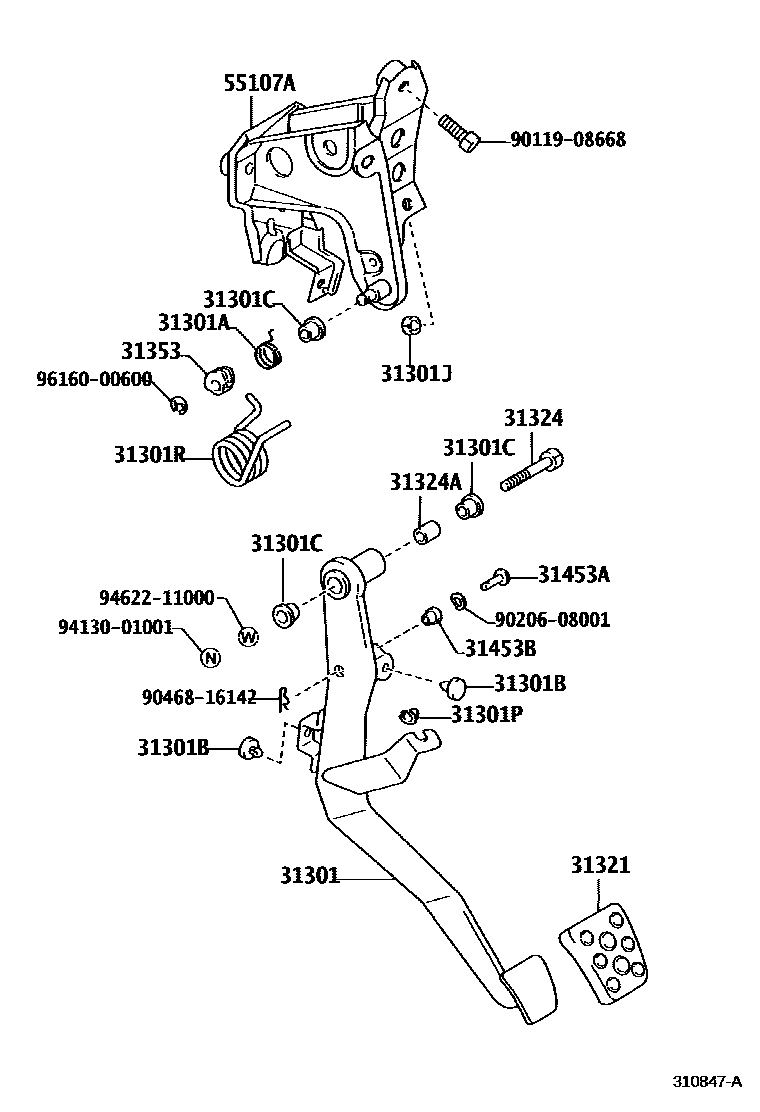

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-53050iJCE10..MTM200107

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03119iJCE10..MTM200107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iJCE10..MTM200107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iJCE10..MTM200107

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-01001iJCE10..MTM200107

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iJCE10..MTM200107

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03111iJCE10..MTM200107

31321PAD, CLUTCH PEDAL

main31321-53010iJCE10..MTM200107

31324SHAFT, CLUTCH PEDAL

main90101-10015iJCE10..MTM200107

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iJCE10..MTM200107

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iJCE10..MTM200107

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iJCE10..MTM200107

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iJCE10..MTM200107

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-53030iJCE10..MTM200107

9011908668

main90119-08668

9020608001

main90206-08001

9046816142

main90468-16142

9413001001

main94130-01001

9462211000

main94622-11000

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
