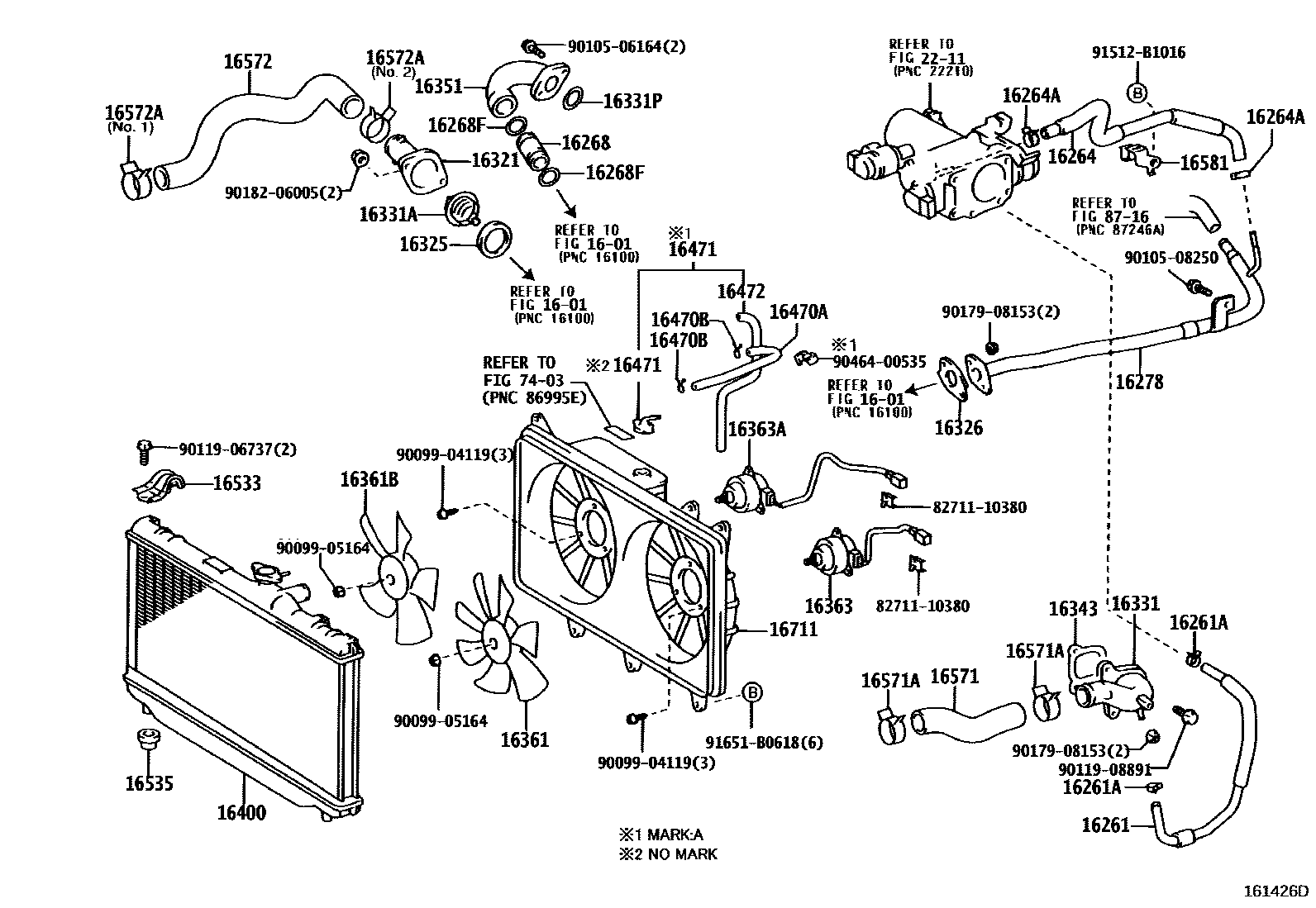

RADIATOR & WATER OUTLET
1601
16261HOSE, WATER BY-PASS
16264HOSE, WATER BY-PASS, NO.2
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16351OUTLET, WATER BY-PASS
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16363-46190
16363AMOTOR, COOLING FAN, NO.2
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
NO MARK:REF.ILLUST
MARK A:REFER ILLUST.
16472HOSE, BREATHER
L=600(*H,L=500)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16711SHROUD, FAN
2211
7403
8716
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9009904119
main90099-04119
9009905164
main90099-05164
9010506164
main90105-06164
9010508250
main90105-08250
9011906737
main90119-06737
9011908891
main90119-08891
9017908153
main90179-08153
9018206005
main90182-06005
9046400535
main90464-00535
91512B1016
main91512-B1016
91651B0618
main91651-B0618
48 parts on this diagram · 2 diagrams in section
