ANTENNA

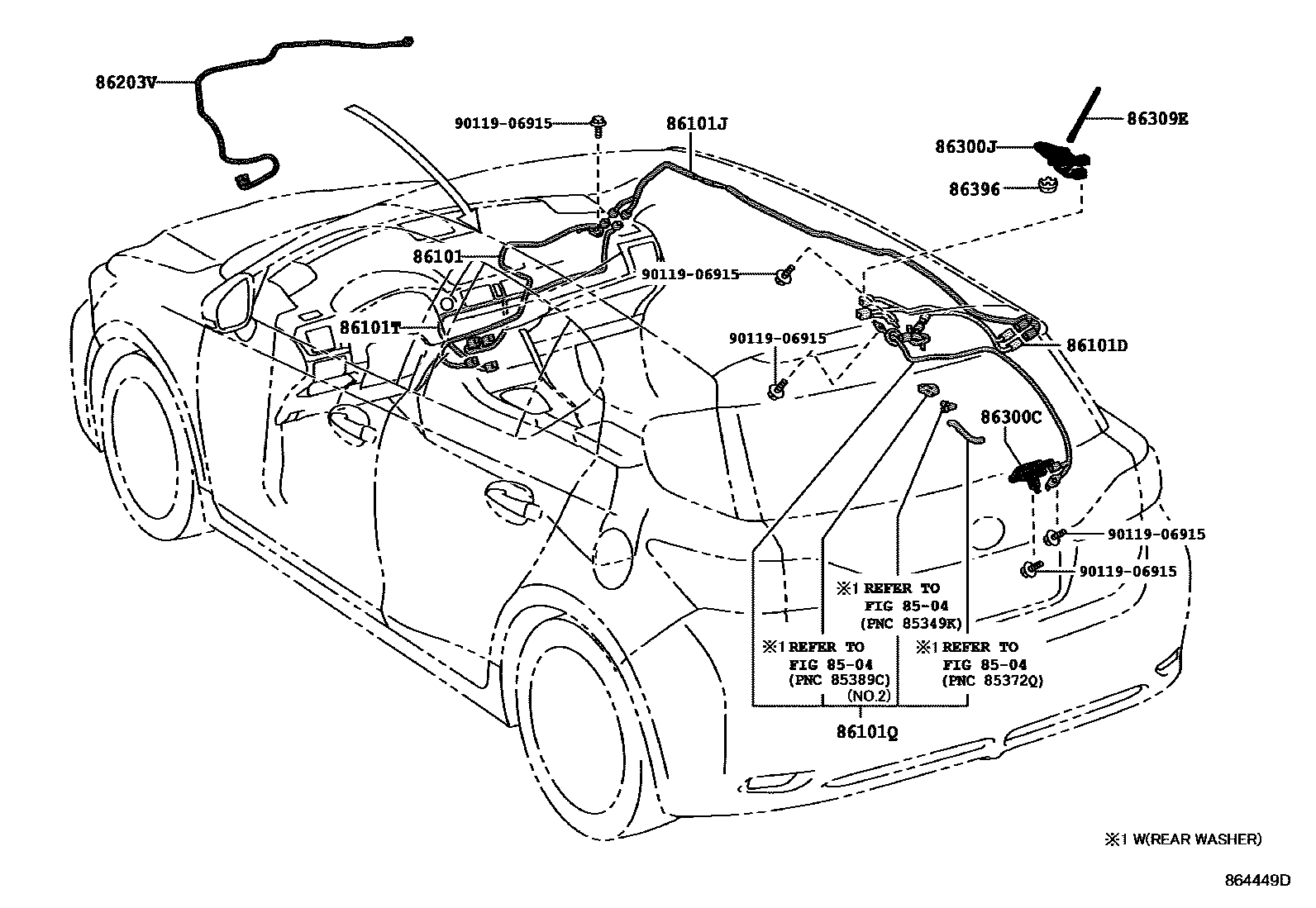

Parts diagram
8504
86101CORD SUB-ASSY, ANTENNA
main86101-76040i201012-201112
sub86101-76041
main86101-76041i201201-202108
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-76080i201012-201111
sub86101-76081
main86101-76081i201112-201312
main86101-76150i201012-201111
CANADA SPEC
sub86101-76151
main86101-76151i201112-201312
CANADA SPEC
main86101-76480i201312-201704
main86101-76520i201708-202108
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-76101i201708-202108
main86101-76110i201012-201106
CANADA SPEC
sub86101-76111
main86101-76111i201107-201312
CANADA SPEC
main86101-76230i201012-201106
sub86101-76231
main86101-76231i201107-201704
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-76090i201012-201109
REAR WINDOW WIPER-WITH
sub86101-76091
main86101-76091i201110-201312
REAR WINDOW WIPER-WITH
main86101-76250i201012-201109
sub86101-76251
main86101-76251i201110-201312
main86101-76660i201312-202108
86101TCORD SUB-ASSY, ANTENNA
main86101-76210i201012-201312
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
KOREA SPEC
main86101-76210i201012-201312
MEXICO SPEC
main86101-76210i201012-201312
USA POSSESSIONS SPEC(HAWAII)
main86101-76210i201012-201312
USA POSSESSIONS SPEC(SAIPAN)
main86101-76210i201012-201312
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)
main86101-76210i201012-201312
KOREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
KOREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
KOREA SPEC&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
MEXICO SPEC&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(HAWAII)&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(HAWAII)&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(HAWAII)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(SAIPAN)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&MAYDAY SYSTEM-WITHOUT
main86101-76210i201012-201312
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
main86101-76240i201012-201312
USA POSSESSIONS SPEC(SAIPAN)
main86101-76240i201012-201312
USA POSSESSIONS SPEC(HAWAII)
86203VWIRE SUB ASSY, RADIO
86300CANTENNA ASSY, AMPLIFIER, NO.2
main86300-76010i201012-201208
main86300-76070i201208-202108
86300JANTENNA ASSY, ROOF
main86760-76010-A0i201012-201208
WHITE PEARL CS.,077
sub86760-76011
main86760-76010-B0i201012-201208
SILVER M.M.,1G1
sub86760-76011
main86760-76010-B1i201108-201208
MERCURY GRAY MC.,1H9
sub86760-76011
main86760-76010-B2i201012-201108
DK.GRAY MC.,1G0
sub86760-76011
main86760-76010-C0i201012-201208
BLACK,212
sub86760-76011
main86760-76010-C1i201012-201208
BLACK OPAL MC.,214
sub86760-76011
main86760-76010-D0i201012-201208
RED MC.CS.,3R1
sub86760-76011
main86760-76010-E0i201012-201208
FIRE AGATE M.M.,4V3
sub86760-76011
main86760-76010-F0i201012-201208
FLARE YELLOW M.M.,5B1
sub86760-76011
main86760-76010-J0i201012-201208
BLUE ME.,8U1
sub86760-76011
main86760-76010-J1i201012-201208
SILVERY BLUE ME.,8U9
sub86760-76011
main86760-76011-A0i201208-201312
WHITE PEARL CS.,077
main86760-76011-A1i201208-201312
WHITE NOVA GF.,083
main86760-76011-B1i201208-201312
MERCURY GRAY MC.,1H9
main86760-76011-B3i201208-201312
PLATINUM SILVER ME.,1J4
main86760-76011-C0i201208-201312
BLACK,212
main86760-76011-C1i201208-201312
BLACK OPAL MC.,214
main86760-76011-D0i201208-201312
RED MC.CS.,3R1
main86760-76011-E0i201208-201312
FIRE AGATE M.M.,4V3
main86760-76011-F0i201208-201312
FLARE YELLOW M.M.,5B1
main86760-76011-J0i201208-201312
BLUE ME.,8U1
main86760-76070i201312-201603
sub86760-76071
main86760-76071i201604-201704
main86760-76100i201708-202108
main86960-76010-A0i201012-201207
CANADA SPEC,WHITE PEARL CS.,077
sub86960-76011
main86960-76010-A0i201012-201207
WHITE PEARL CS.,077
sub86960-76011
main86960-76010-B0i201012-201207
SILVER M.M.,1G1
sub86960-76011
main86960-76010-B0i201012-201207
CANADA SPEC,SILVER M.M.,1G1
sub86960-76011
main86960-76010-B1i201108-201207
CANADA SPEC,MERCURY GRAY MC.,1H9
sub86960-76011
main86960-76010-B1i201108-201207
MERCURY GRAY MC.,1H9
sub86960-76011
main86960-76010-B2i201012-201108
CANADA SPEC,DK.GRAY MC.,1G0
sub86960-76011
main86960-76010-B2i201012-201108
DK.GRAY MC.,1G0
sub86960-76011
main86960-76010-C0i201012-201207
CANADA SPEC,BLACK,212
sub86960-76011
main86960-76010-C0i201012-201207
BLACK,212
sub86960-76011
main86960-76010-C1i201012-201207
BLACK OPAL MC.,214
sub86960-76011
main86960-76010-C1i201012-201207
CANADA SPEC,BLACK OPAL MC.,214
sub86960-76011
main86960-76010-D0i201012-201207
CANADA SPEC,RED MC.CS.,3R1
sub86960-76011
main86960-76010-D0i201012-201207
RED MC.CS.,3R1
sub86960-76011
main86960-76010-E0i201012-201207
CANADA SPEC,FIRE AGATE M.M.,4V3
sub86960-76011
main86960-76010-E0i201012-201207
FIRE AGATE M.M.,4V3
sub86960-76011
main86960-76010-F0i201012-201207
CANADA SPEC,FLARE YELLOW M.M.,5B1
sub86960-76011
main86960-76010-F0i201012-201207
FLARE YELLOW M.M.,5B1
sub86960-76011
main86960-76010-J0i201012-201207
CANADA SPEC,BLUE ME.,8U1
sub86960-76011
main86960-76010-J0i201012-201207
BLUE ME.,8U1
sub86960-76011
main86960-76010-J1i201012-201207
CANADA SPEC,SILVERY BLUE ME.,8U9
sub86960-76011
main86960-76010-J1i201012-201207
SILVERY BLUE ME.,8U9
sub86960-76011
main86960-76011-A0i201208-201312
CANADA SPEC,WHITE PEARL CS.,077
main86960-76011-A0i201208-201312
WHITE PEARL CS.,077
main86960-76011-B1i201208-201312
CANADA SPEC,MERCURY GRAY MC.,1H9
main86960-76011-B1i201208-201312
MERCURY GRAY MC.,1H9
main86960-76011-B3i201208-201312
CANADA SPEC,PLATINUM SILVER ME.,1J4
main86960-76011-B3i201208-201312
PLATINUM SILVER ME.,1J4
main86960-76011-C0i201208-201312
BLACK,212
main86960-76011-C0i201208-201312
CANADA SPEC,BLACK,212
main86960-76011-C1i201208-201312
CANADA SPEC,BLACK OPAL MC.,214
main86960-76011-C1i201208-201312
BLACK OPAL MC.,214
main86960-76011-D0i201208-201312
RED MC.CS.,3R1
main86960-76011-D0i201208-201312
CANADA SPEC,RED MC.CS.,3R1
main86960-76011-E0i201208-201312
CANADA SPEC,FIRE AGATE M.M.,4V3
main86960-76011-E0i201208-201312
FIRE AGATE M.M.,4V3
main86960-76011-F0i201208-201312
CANADA SPEC,FLARE YELLOW M.M.,5B1
main86960-76011-F0i201208-201312
FLARE YELLOW M.M.,5B1
main86960-76011-J0i201208-201312
BLUE ME.,8U1
main86960-76011-J0i201208-201312
CANADA SPEC,BLUE ME.,8U1
86309EPOLE SUB-ASSY, ROOF ANTENNA
main86309-42080i201012-201312
USA POSSESSIONS SPEC(SAIPAN)
main86309-42080i201012-201312
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)
main86309-42080i201012-201312
CANADA SPEC
main86309-42080i201012-201312
KOREA SPEC
main86309-42080i201012-201312
MEXICO SPEC
main86309-42080i201012-201312
USA POSSESSIONS SPEC(HAWAII)
main86761-47010i201012-201312
86396NUT, ANTENNA
main86396-47010i201012-201312
9011906915
main90119-06915

12 parts on this diagram · 2 diagrams in section
