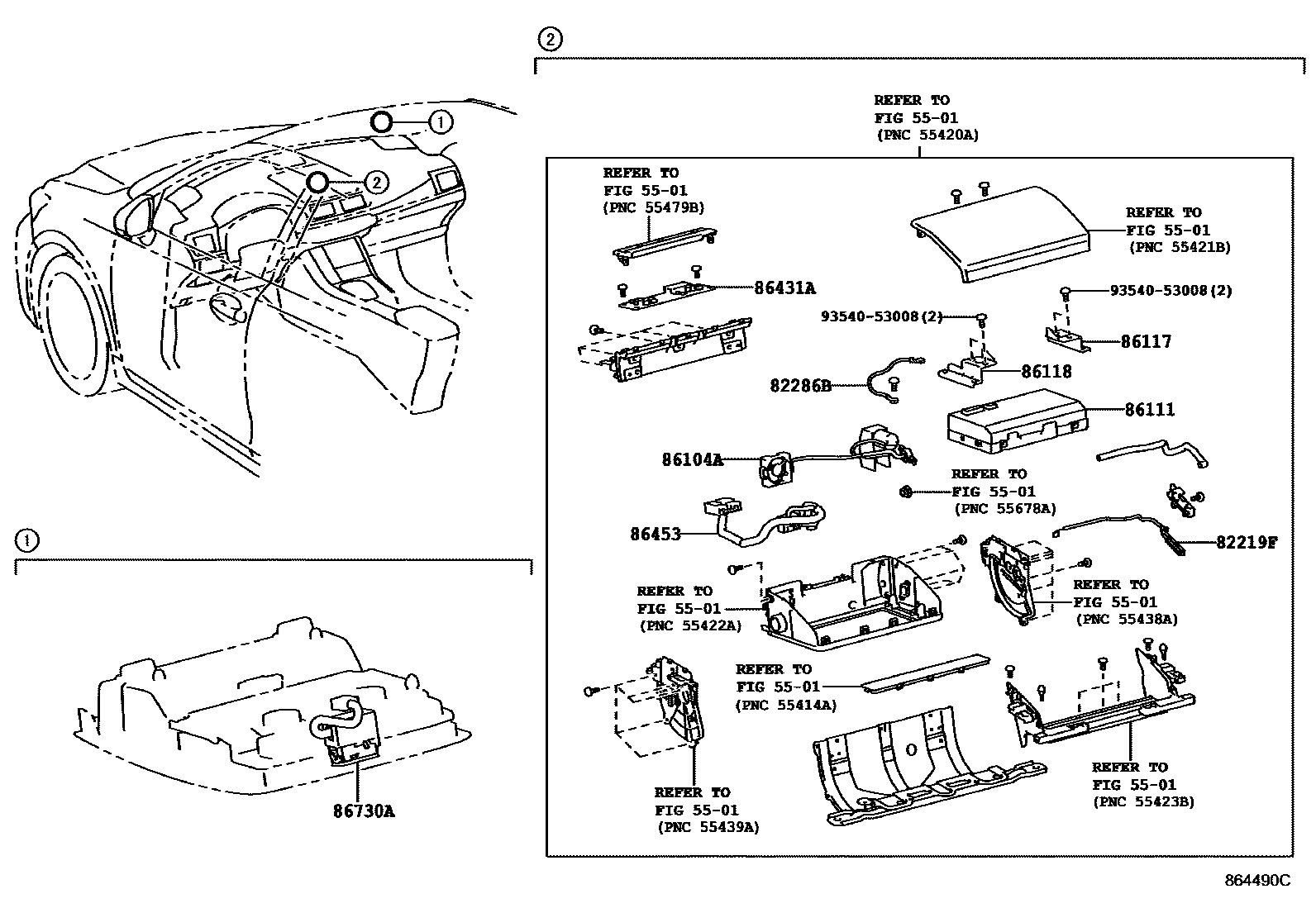

NAVIGATION & FRONT MONITOR DISPLAY
5501
82219FWIRE, SENSOR
EMV & NAVIGATION SYSTEM-WITH(HDD & SHADE TYPE)
82286BWIRE, EARTH, NO.2
EMV & NAVIGATION SYSTEM-WITH(HDD & SHADE TYPE)
86104ACONTROLLER SUB-ASSY, MULTI-DISPLAY
86111MULTI-DISPLAY
EMV & NAVIGATION SYSTEM-WITH(HDD & SHADE TYPE)
PANASONIC,KOREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
sub86111-76031
PANASONIC,INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
PANASONIC,INSTRUMENT PANEL-FOR FIXED TYPE DISPLAY(7 INCH)&AUDIO-AM/FM & DVD & EMV& 13SPEAKER
PANASONIC,KOREA SPEC&INSTRUMENT PANEL-FOR FIXED TYPE DISPLAY(7 INCH)&AUDIO-AM/FM &DVD & EMV & 10SPEAKER
sub86111-76081
PANASONIC,KOREA SPEC&INSTRUMENT PANEL-FOR FIXED TYPE DISPLAY(7 INCH)&AUDIO-AM/FM &DVD & EMV & 13SPEAKER
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
86118BRACKET, MULTI-DISPLAY CONTROLER, B
INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
86431DISPLAY, DISPLAY & NAVIGATION MODULE
KOREA SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD)
86431ABOARD, DISPLAY MODULE
KOREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
sub86431-76101
KOREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&MAYDAY SYSTEM-WITHOUT
86453WIRE, MULTI-MEDIA MODULE
EMV & NAVIGATION SYSTEM-WITH(DVD)
INTERMITTENT WIPER-AUTO&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
86730AMICROPHONE ASSY, TELEPHONE
CAR TELEPHONE-WITHOUT
9354053008
main93540-53008
12 parts on this diagram · 7 diagrams in section
