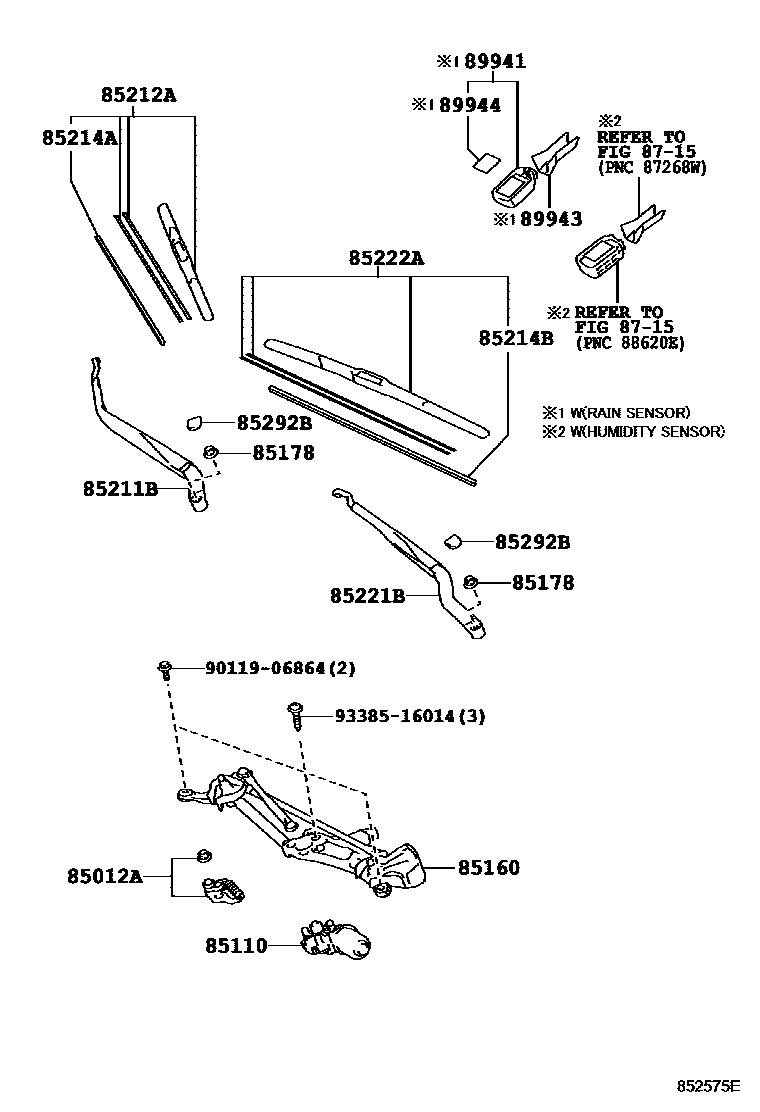

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZWA10201012-202108

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28250iZWA10201504-202108

main85110-76030iZWA10201012-201503

sub85110-28250

85160LINK ASSY, WINDSHIELD WIPER

main85150-76020iZWA10201012-202108

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZWA10201012-202108

85211BARM, FRONT WIPER, RH

main85211-76030iZWA10201012-202108

85212ABLADE, FR WIPER, RH

main85212-74010iZWA10201012-202108

85214ARUBBER, WIPER, RH

main85214-30400iZWA10201012-202108

sub85214-33180

85214BRUBBER, WIPER, LH

main85214-68020iZWA10201012-202108

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-76020iZWA10201012-202108

85222ABLADE, FR WIPER, LH

main85222-76010iZWA10201012-202108

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZWA10201012-202108

8715

89941SENSOR, RAIN

main89941-42010iZWA10..E201208-201312

89943COVER, RAIN SENSOR

main89943-76010iZWA10..E201208-201312

89944TAPE, RAIN SENSOR

main89944-42010iZWA10..E201208-201312

9011906864

main90119-06864

9338516014

main93385-16014

17 parts on this diagram · 1 diagram in section
