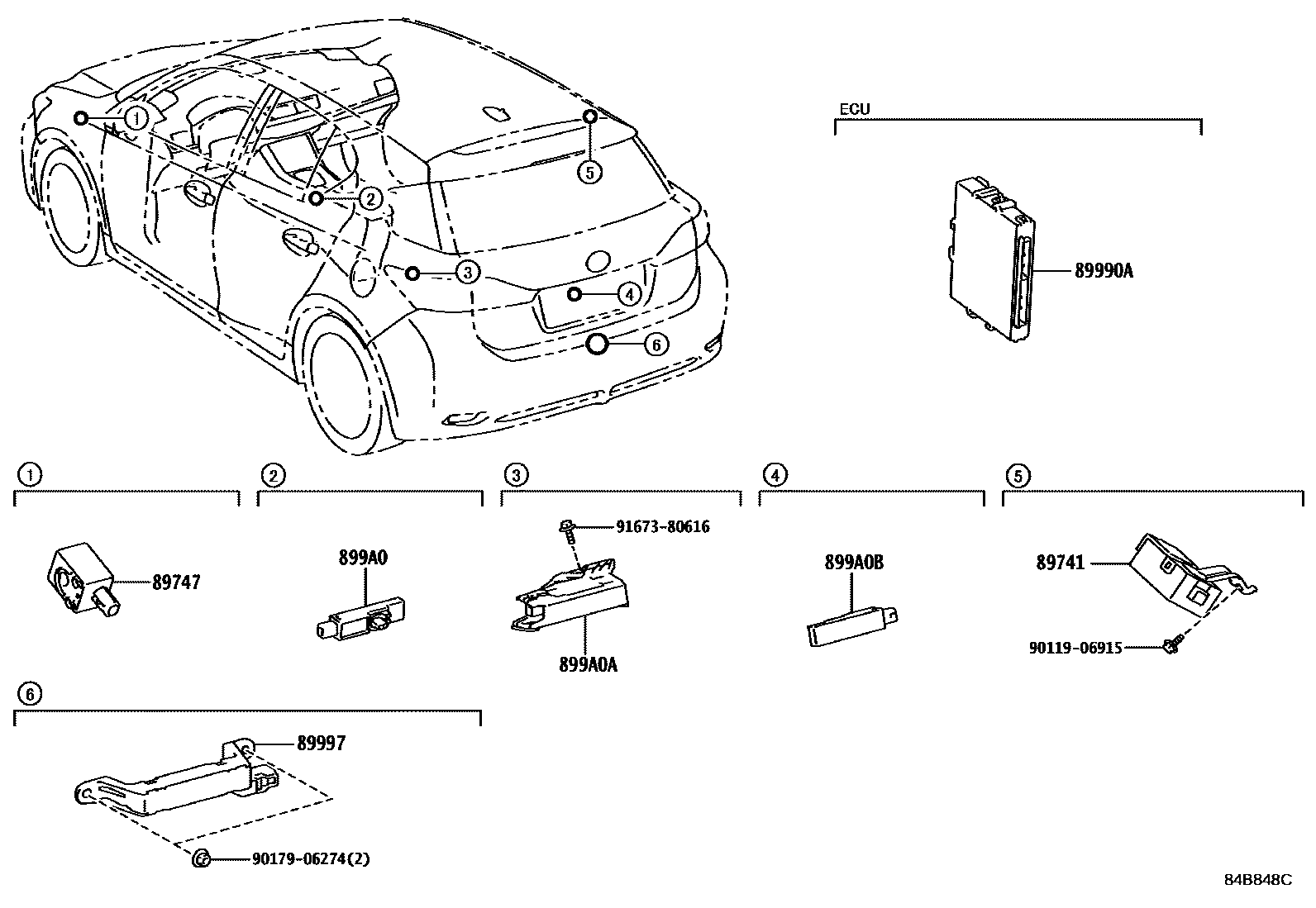

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-76010iZWA10201012-201703

sub89740-76011

main89740-76011iZWA10201704-201708

main89740-76022iZWA10201708-202108

main89740-76090iZWA10201106-201108

sub89740-76091

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZWA10201012-202108

89990ACOMPUTER ASSY, SMART KEY

main89990-76010iZWA10201012-201106

sub89990-76011

main89990-76011iZWA10201107-201207

sub89990-76012

main89990-76012iZWA10201208-201312

sub89990-76013

main89990-76050iZWA10201312-201508

sub89990-76051

main89990-76090iZWA10201508-201601

sub89990-76091

main89990-76091iZWA10201602-201707

sub89990-76092

main89990-76092iZWA10201708-201710

sub89990-76093

main89990-76093iZWA10201711-201809

sub89990-76094

main89990-76210iZWA10201809-202105

sub89990-76211

main89990-76211iZWA10202106-202108

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZWA10201012-202108

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZWA10201012-202108

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020iZWA10201012-202108

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iZWA10201012-202108

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
