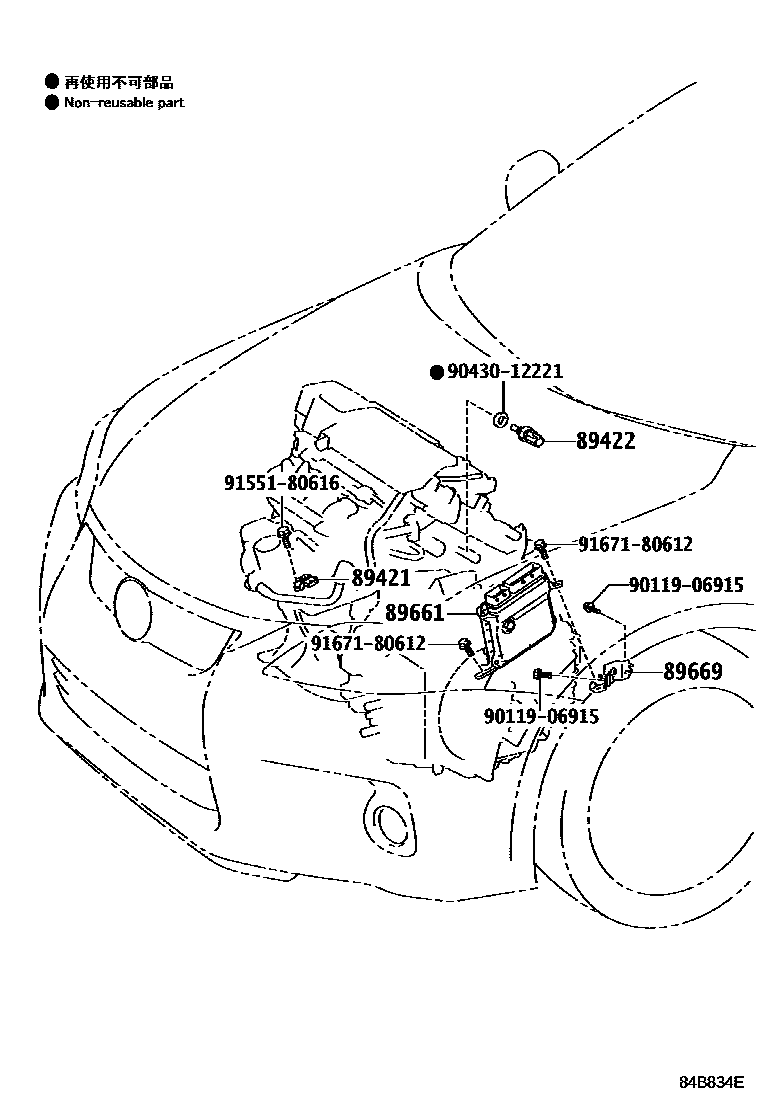

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZWA10201012-202108

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZWA10201012-202108

89661COMPUTER, ENGINE CONTROL

main89660-76010iZWA10201012-201111

sub89660-76011

main89660-76011iZWA10201112-201305

sub89660-76012

main89660-76012iZWA10201306-201312

sub89660-76013

main89660-76080iZWA10201312-201408

sub89660-76081

main89660-76170iZWA10201408-201602

sub89660-76171

main89660-76171iZWA10201603-201809

sub89661-76161

sub89667-47090

sub89988-75010

sub90159-50386

main89660-76250iZWA10201809-202108

DENSO

sub89661-76420

sub89667-47090

sub89988-75010

sub90159-50386

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZWA10201012-202108

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

8 parts on this diagram · 1 diagram in section
