SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1FRONT SEAT 0008 1DOOR,ROOF,FLOOR & BACK DOOR

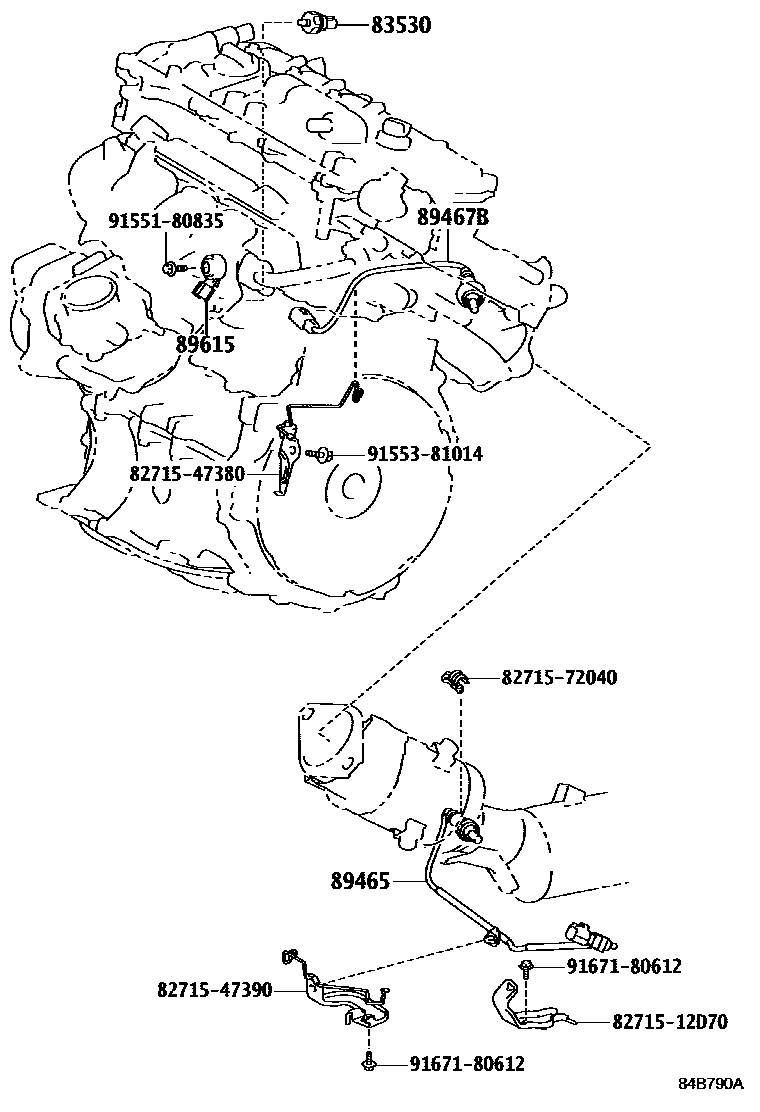

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZWA10201310-201402

YAZAKI

sub83530-12060

main83530-28020iZWA10201310-201402

DENSO

main83530-28020iZWA10201012-202108

89465SENSOR, OXYGEN

main89465-47080iZWA10201012-201312

main89465-76010iZWA10201312-202108

89467BSENSOR, AIR FUEL RATIO

main89467-52060iZWA10201012-202108

89615SENSOR, KNOCK CONTROL

main89615-20090iZWA10201012-202108

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9155180835

main91551-80835

9155381014

main91553-81014

9167180612

main91671-80612

11 parts on this diagram · 8 diagrams in section
