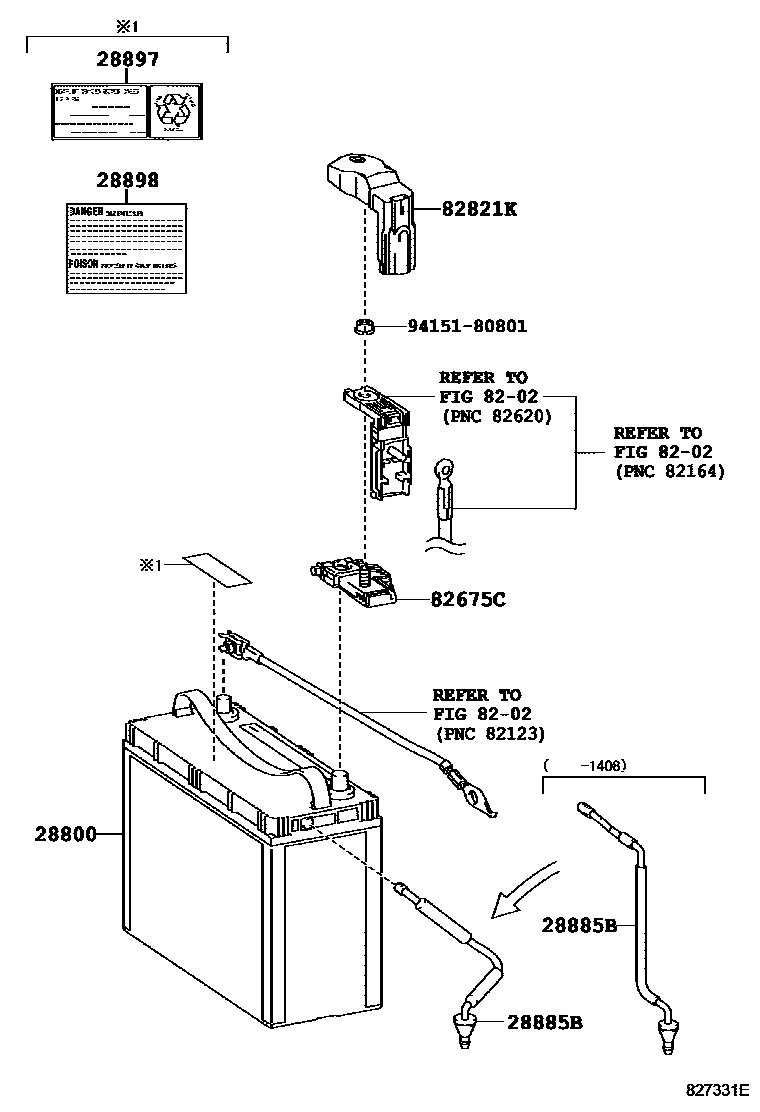

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21171i2ZRFXE..ZWA10201012-202108

S46B24R

sub28800-21172

28885BHOSE, BATTERY

main28885-37020i2ZRFXE..ZWA10201012-201408

main28885-37090i2ZRFXE..ZWA10201408-202108

28897PLATE, BATTERY CAUTION

main28898-62010i2ZRFXE..ZWA10..B201012-201708

sub28898-20020

28898PLATE, BATTERY

main28897-38010i2ZRFXE..ZWA10..E201012-201107

CANADA SPEC

main28897-46020i2ZRFXE..ZWA10..E201108-201312

CANADA SPEC

8202

82675CTERMINAL, JUNCTION

main82675-76010iZWA10201012-202108

82821KCOVER, CONNECTOR

main82821-47110iZWA10201012-202108

9415180801

main94151-80801

8 parts on this diagram · 4 diagrams in section
