HEADLAMP

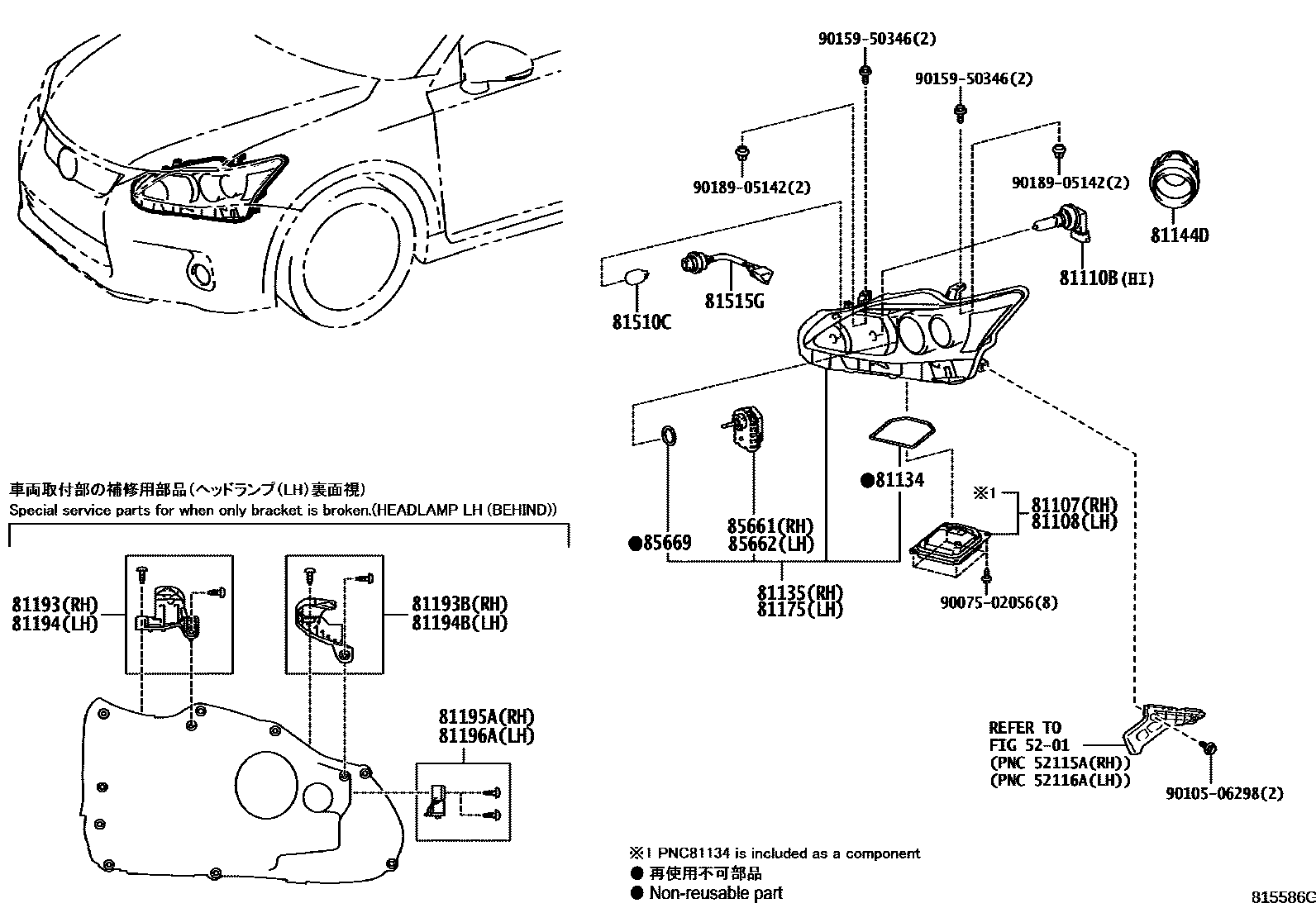

Parts diagram
5201
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
main81107-47240i201012-201106
KOREA SPEC&HEAD LAMP-LED
sub81107-47290
main81107-47240i201012-201106
HEAD LAMP-LED
sub81107-47290
main81107-47290i201106-201312
KOREA SPEC&HEAD LAMP-LED
main81107-47290i201106-201312
HEAD LAMP-LED
main81107-47380i201312-201704
HEADLAMP-LED
main81107-47380i201312-201708
KOREA SPEC&HEADLAMP-LED
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
main81107-47240i201012-201106
KOREA SPEC&HEAD LAMP-LED
sub81107-47290
main81107-47240i201012-201106
HEAD LAMP-LED
sub81107-47290
main81107-47290i201106-201312
HEAD LAMP-LED
main81107-47290i201106-201312
KOREA SPEC&HEAD LAMP-LED
main81107-47380i201312-201704
HEADLAMP-LED
main81107-47380i201312-201708
KOREA SPEC&HEADLAMP-LED
81110HEADLAMP ASSY, RH
main00000-00000i201312-201708
KOREA SPEC&HEADLAMP-LED,NOT APPLICABLE
main00000-00000i201012-201312
KOREA SPEC&HEAD LAMP-LED,NOT APPLICABLE
main00000-00000i201012-201312
HEAD LAMP-LED,NOT APPLICABLE
main00000-00000i201208-201708
KOREA SPEC,NOT APPLICABLE
main00000-00000i201708-202108
NOT APPLICABLE
main81110-76010i201012-201108
main81110-76011i201108-201608
sub81110-76012
main81110-76012i201609-201704
main81110-76080i201012-201108
KOREA SPEC
main81110-76081i201108-201208
KOREA SPEC
main81110-76160i201312-201704
HEADLAMP-LED
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13084i201704-201708
12V 65W,HALOGEN,KOREA SPEC&HEADLAMP-LED
main90981-13084i201704-201708
12V 65W,HALOGEN,KOREA SPEC
main90981-13084i201012-202108
12V 65W,HALOGEN
81134GASKET, HEADLAMP
main90075-68007i201012-201312
KOREA SPEC&HEAD LAMP-LED
main90075-68007i201012-201312
HEAD LAMP-LED
main90075-68007i201312-201704
HEADLAMP-LED
main90075-68007i201312-201708
KOREA SPEC&HEADLAMP-LED
81135UNIT ASSY, HEADLAMP, RH
main81105-76190i201708-201903
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
sub81105-76191
main81105-76190i201708-201903
HEADLAMP-LED
sub81105-76191
main81105-76191i201903-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main81105-76191i201903-202108
HEADLAMP-LED
main81130-76010i201012-201108
main81130-76011i201108-201609
sub81130-76012
main81130-76012i201609-201704
main81130-76032i201208-201609
KOREA SPEC
sub81130-76033
main81130-76033i201708-202108
main81130-76033i201609-201708
KOREA SPEC
main81130-76080i201012-201108
KOREA SPEC
main81130-76081i201108-201208
KOREA SPEC
main81145-76061i201208-201312
KOREA SPEC&HEAD LAMP-LED
main81145-76070i201012-201108
HEAD LAMP-LED
main81145-76071i201108-201312
HEAD LAMP-LED
main81145-76110i201012-201108
KOREA SPEC&HEAD LAMP-LED
main81145-76111i201108-201208
KOREA SPEC&HEAD LAMP-LED
main81145-76150i201312-201708
KOREA SPEC&HEADLAMP-LED
main81145-76160i201312-201704
HEADLAMP-LED
81144COVER, HEADLAMP, NO.1
main81135-76170i201312-201704
HEADLAMP-LED
main81135-76170i201312-201708
KOREA SPEC&HEADLAMP-LED
81144DCAP, HEADLAMP LOCKING
main90075-66004i201312-201704
HEADLAMP-LED
main90075-66004i201312-201708
KOREA SPEC&HEADLAMP-LED
main90075-66004i201012-201312
KOREA SPEC&HEAD LAMP-LED
main90075-66004i201012-201312
HEAD LAMP-LED
81175UNIT ASSY, HEADLAMP, LH
main81106-76190i201708-201903
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
sub81106-76191
main81106-76190i201708-201903
HEADLAMP-LED
sub81106-76191
main81106-76191i201903-202108
HEADLAMP-LED
main81106-76191i201903-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main81170-76010i201012-201108
main81170-76011i201108-201609
sub81170-76012
main81170-76012i201609-201704
main81170-76032i201208-201609
KOREA SPEC
sub81170-76033
main81170-76033i201708-202108
main81170-76033i201609-201708
KOREA SPEC
main81170-76080i201012-201108
KOREA SPEC
main81170-76081i201108-201208
KOREA SPEC
main81185-76061i201208-201312
KOREA SPEC&HEAD LAMP-LED
main81185-76070i201012-201108
HEAD LAMP-LED
main81185-76071i201108-201312
HEAD LAMP-LED
main81185-76110i201012-201108
KOREA SPEC&HEAD LAMP-LED
main81185-76111i201108-201208
KOREA SPEC&HEAD LAMP-LED
main81185-76150i201312-201708
KOREA SPEC&HEADLAMP-LED
main81185-76160i201312-201704
HEADLAMP-LED
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-76010i201012-202108
main81193-76030i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main81193-76030i201708-202108
HEADLAMP-LED
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
main81193-76020i201012-202108
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-76010i201012-202108
main81194-76030i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main81194-76030i201708-202108
HEADLAMP-LED
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
main81194-76020i201012-202108
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-76010i201012-202108
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-76010i201012-202108
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021i201312-201708
12V 21W,AMBER,KOREA SPEC&HEADLAMP-LED
main90981-15021i201208-201708
12V 21W,AMBER,KOREA SPEC
main90981-15021i201208-201312
12V 21W,AMBER,KOREA SPEC&HEAD LAMP-LED
main90981-15021i201708-202108
12V 21W,AMBER
main90981-15024i201012-201704
12V 28/8W
81515GSOCKET & WIRE, FRONT TURN SIGNAL LAMP
main81125-76070i201012-201208
KOREA SPEC&HEAD LAMP-LED,RH
main81125-76070i201012-201312
HEAD LAMP-LED,RH
main81125-76070i201312-201704
HEADLAMP-LED,RH
main81125-76100i201312-201708
KOREA SPEC&HEADLAMP-LED,RH
main81125-76100i201208-201312
KOREA SPEC&HEAD LAMP-LED,RH
main81125-76180i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),RH
main81125-76180i201708-202108
HEADLAMP-LED,RH
main81165-76070i201012-201312
HEAD LAMP-LED,LH
main81165-76070i201012-201208
KOREA SPEC&HEAD LAMP-LED,LH
main81165-76070i201312-201704
HEADLAMP-LED,LH
main81165-76100i201312-201708
KOREA SPEC&HEADLAMP-LED,LH
main81165-76100i201208-201312
KOREA SPEC&HEAD LAMP-LED,LH
main81165-76180i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),LH
main81165-76180i201708-202108
HEADLAMP-LED,LH
85661MOTOR, HEADLAMP LEVELING, RH
main85661-12010i201208-201708
KOREA SPEC
main85661-12010i201708-202108
main85661-12020i201012-201312
HEAD LAMP-LED
main85661-12020i201012-201312
KOREA SPEC&HEAD LAMP-LED
main85661-12020i201312-202108
HEADLAMP-LED
main85661-12020i201312-201708
KOREA SPEC&HEADLAMP-LED
main85661-12020i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
85662MOTOR, HEADLAMP LEVELING, LH
main85661-12010i201708-202108
main85661-12010i201208-201708
KOREA SPEC
main85661-12020i201012-201312
HEAD LAMP-LED
main85661-12020i201012-201312
KOREA SPEC&HEAD LAMP-LED
main85661-12020i201312-202108
HEADLAMP-LED
main85661-12020i201312-201708
KOREA SPEC&HEADLAMP-LED
main85661-12020i201708-202108
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
main90075-99120i201012-201312
KOREA SPEC&HEAD LAMP-LED
main90075-99120i201012-201312
HEAD LAMP-LED
main90075-99120i201312-201708
KOREA SPEC&HEADLAMP-LED
main90075-99120i201708-202108
main90075-99120i201208-201708
KOREA SPEC
main90075-99120i201312-201704
HEADLAMP-LED
9007502056
main90075-02056
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142

25 parts on this diagram · 8 diagrams in section
