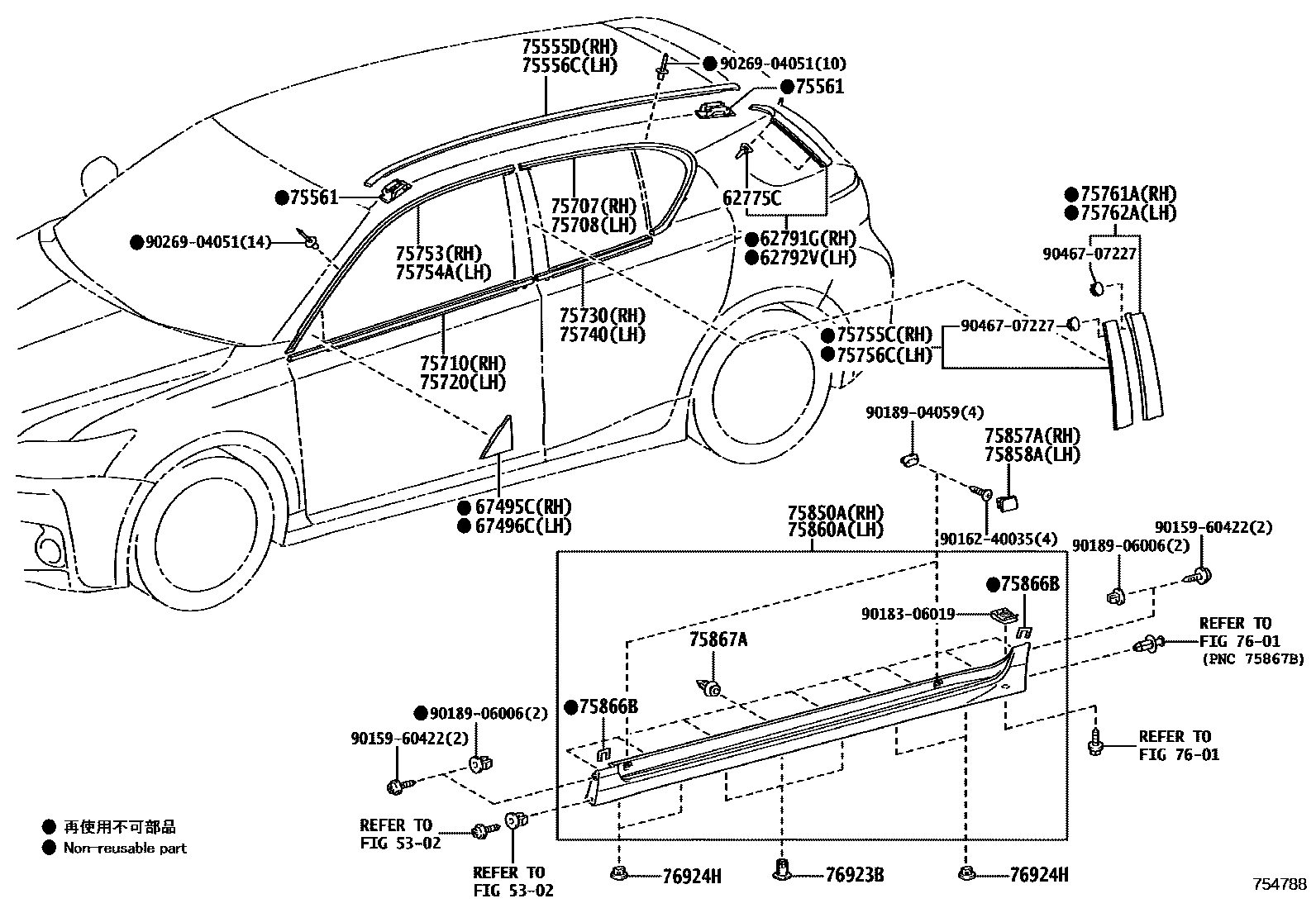

SIDE MOULDING
5302
62775CCLIP, QUARTER WINDOW
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
BLACK MATERIAL
BLACK,212 ,2LH ,2LJ ,2LK ,2LL ,2LM ,2LN ,2LP ,2LQ ,2MN ,2MP ,2PK ,2PW ,2PX ,2QE ,2QF
sub75555-76020
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
BLACK MATERIAL
BLACK,212 ,2LH ,2LJ ,2LK ,2LL ,2LM ,2LN ,2LP ,2LQ ,2MN ,2MP ,2PK ,2PW ,2PX ,2QE ,2QF
sub75556-76020
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE PEARL CS.,077 ,2LH
WHITE NOVA GF.,083 ,2LJ
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9 ,2LL
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4 ,2LK
SONIC TITANIUM,1J7 ,2MN
BLACK,212 ,2PZ
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1
RED MC.CS.,3R1
SOLID RED,2LN ,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,5B1
FLARE YELLOW M.M.,2LP ,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
BLUE ME.,2LQ ,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5
SPARKLING METEOR ME.,2PX ,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE NOVA GF.,083
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,MERCURY GRAY MC.,1H9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,PLATINUM SILVER ME.,1J4
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,DK.GRAY MC.,1G0
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
sub75850-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
sub75850-76020
75857ACOVER, ROCKER PANEL MOULDING, RH
WHITE PEARL CS.,077
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
WHITE PEARL CS.,077 ,2LH
WHITE NOVA GF.,083 ,2LJ
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
DK.GRAY MC.,1G0
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,DK.GRAY MC.,1G0
SILVER M.M.,1G1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9 ,2LL
PLATINUM SILVER ME.,1J4 ,2LK
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7 ,2MN
BLACK,212 ,2PZ
BLACK,212
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
BLACK OPAL MC.,214
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1
RED MC.CS.,3R1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
SOLID RED,2LN ,3T2
FIRE AGATE M.M.,4V3
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
BLUE ME.,2LQ ,8U1
SILVERY BLUE ME.,8U9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5
SPARKLING METEOR ME.,2PX ,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75858ACOVER, ROCKER PANEL MOULDING, LH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
WHITE PEARL CS.,077 ,2LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
DK.GRAY MC.,1G0
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,DK.GRAY MC.,1G0
SILVER M.M.,1G1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
MERCURY GRAY MC.,1H9 ,2LL
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4 ,2LK
SONIC TITANIUM,1J7 ,2MN
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
BLACK,212 ,2PZ
BLACK,212
BLACK OPAL MC.,214
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,3R1
RED MC.CS.,2LM ,2QA ,3R1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
SOLID RED,2LN ,3T2
FIRE AGATE M.M.,4V3
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,5B1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
FLARE YELLOW M.M.,2LP ,5B1
TERRANE KHAKI M.M.,6X4
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
BLUE ME.,2LQ ,8U1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5
SPARKLING METEOR ME.,2PX ,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,077 ,2LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9 ,2LL
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4 ,2LK
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7 ,2MN
BLACK,212 ,2PZ
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1
RED MC.CS.,3R1
SOLID RED,2LN ,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,5B1
FLARE YELLOW M.M.,2LP ,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5
SPARKLING METEOR ME.,2PX ,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE NOVA GF.,083
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,MERCURY GRAY MC.,1H9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,PLATINUM SILVER ME.,1J4
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,WHITE PEARL CS.,077
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVER M.M.,1G1
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,DK.GRAY MC.,1G0
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK,212
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLACK OPAL MC.,214
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,RED MC.CS.,3R1
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FIRE AGATE M.M.,4V3
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,FLARE YELLOW M.M.,5B1
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,BLUE ME.,8U1
sub75860-76020
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE,SILVERY BLUE ME.,8U9
sub75860-76020
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
7601
76923BRETAINER, SIDE MUDGUARD
76924HRETAINER, SIDE MUDGUARD, NO.2
9015960422
main90159-60422
9016240035
main90162-40035
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9026904051
main90269-04051
9046707227
main90467-07227
37 parts on this diagram · 1 diagram in section
