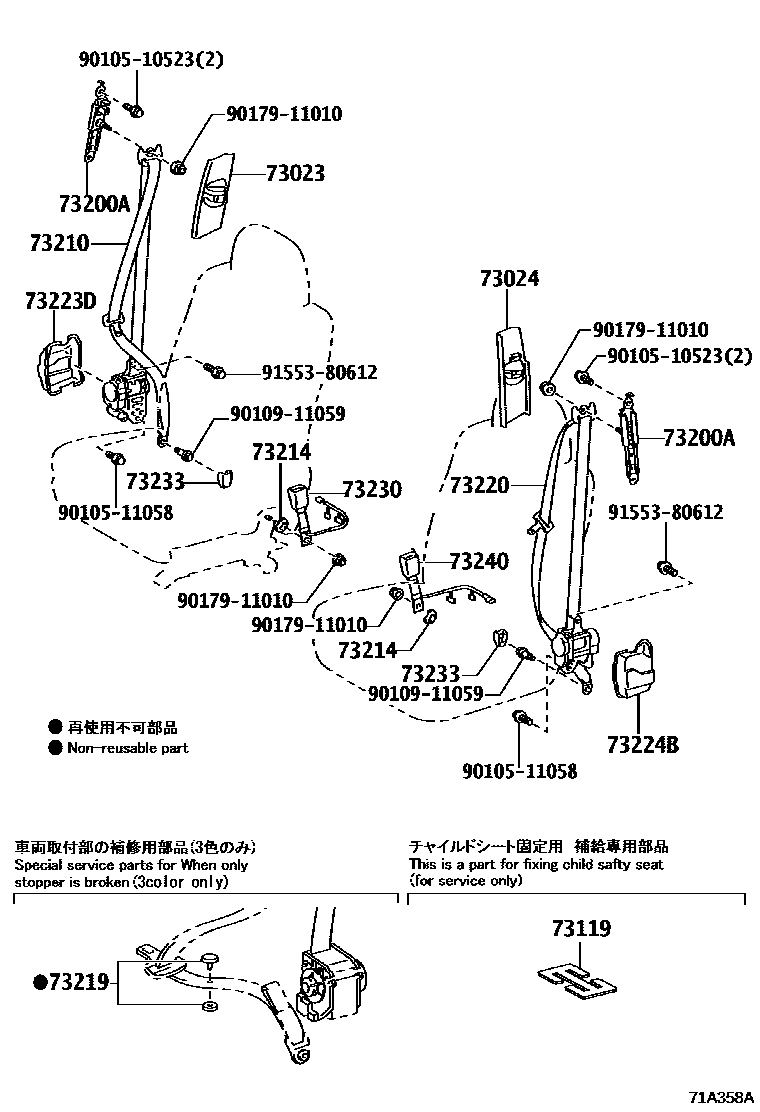

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM00,01,02,20,22,36,4#,5#
LT.GRAY,TRIM0#,2#,4#,8#
LT.GRAY,TRIM0#,20,21,22,23,41,8#
BLACK,TRIM00,03,04,1#,20,23,3#,41,42,8#
BLACK,TRIM0#,20,23,24,25,26,41
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM00,01,02,20,22,36,4#,5#
LT.GRAY,TRIM0#,20,21,22,23,41,8#
LT.GRAY,TRIM0#,2#,4#,8#
BLACK,TRIM0#,20,23,24,25,26,41
BLACK,TRIM00,03,04,1#,20,23,3#,41,42,8#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK/ECRU,TRIM00,01,20,41,5#
BLACK/ECRU,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK/ECRU,TRIM00,01,20,41,5#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/ECRU,TRIM00,01,20,41,5#
BLACK/LT.GRAY,TRIM0#,2#,4#
BLACK/LT.GRAY,TRIM00,01,02,20,41
BLACK/BLACK,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK/BLACK,TRIM00,1#,20,3#,41,8#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM00,1#,20,3#,41,8#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK/BLACK,TRIM00,1#,20,3#,41,8#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
sub73210-76111
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
sub73210-76111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,20,41,5#
sub73210-76111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM00,20,3#,41
sub73210-76111
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
sub73210-76111
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
sub73210-76111
ECRU,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,20,41,5#
BLACK,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
ECRU,TRIM00,02,20,22,36,41,45
BLACK,TRIM00,04,20,23,35,37,41,42
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU/BLACK,TRIM00,01,20,41,5#
ECRU/BLACK,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU/BLACK,TRIM00,01,20,41,5#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU/BLACK,TRIM00,01,20,41,5#
BLACK/LT.GRAY,TRIM02,20,41
BLACK/LT.GRAY,TRIM0#,2#,4#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK/BLACK,TRIM00,20,3#,41
BLACK/BLACK,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM00,20,3#,41
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK/BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,20,41,5#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,20,41,5#
ECRU,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM00,01,20,41,5#
ECRU,TRIM00,02,20,22,36,41,45
BLACK,TRIM00,20,41
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM00,20,3#,41
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM00,20,3#,41
BLACK,TRIM00,04,20,23,35,37,41,42
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,2#,4#,8#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#,4#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,2#,4#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,4#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM0#,2#,3#,4#,5#
SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#
FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#,4#
9010510523
9010511058
9010911059
9017911010
9155380612
18 parts on this diagram · 2 diagrams in section
