BACK DOOR LOCK & HANDLE

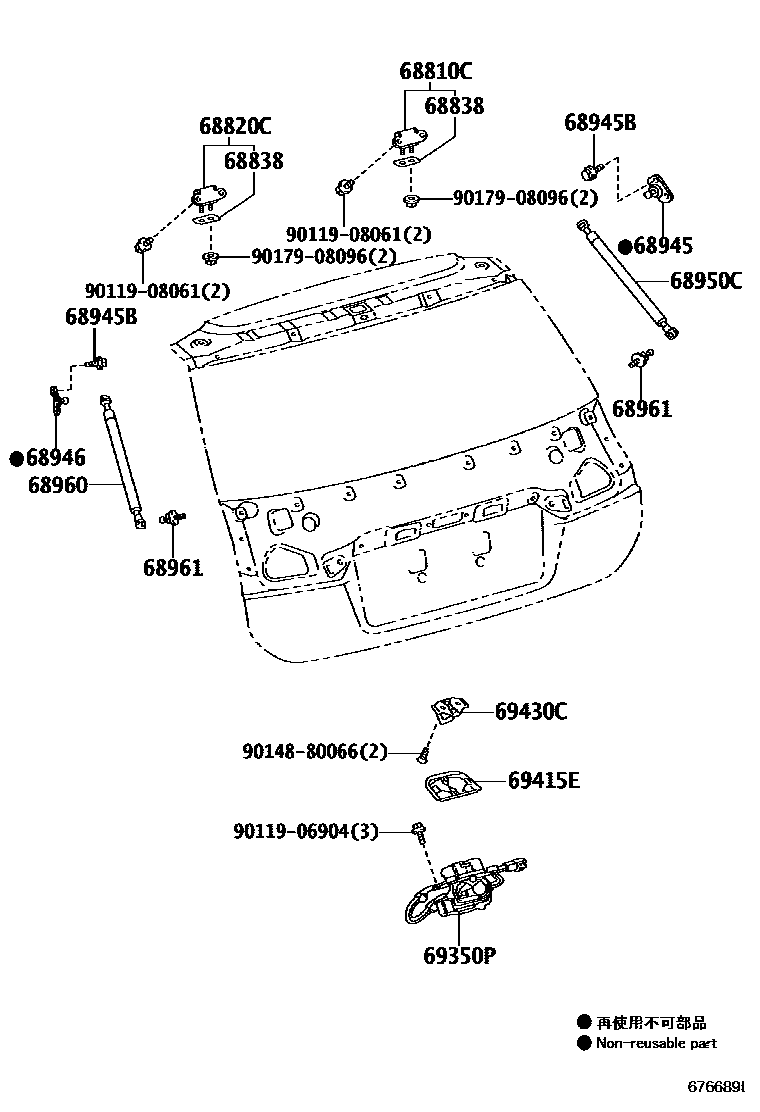

Parts diagram
68810CHINGE ASSY, BACK DOOR, RH
main68810-47010i201012-201312
sub68810-47011
main68810-76010i201312-201512
sub68810-76011
main68810-76011i201601-202108
68820CHINGE ASSY, BACK DOOR, LH
main68810-47010i201012-201312
sub68810-47011
main68810-76010i201312-201512
sub68810-76011
main68810-76011i201601-202108
68838PAD, BACK DOOR HINGE, NO.1
main68838-32010i201012-202108
T=2.0
main68838-44020i201012-202108
T=1.0
main68838-52020i201012-202108
T=1.6
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-76010i201012-202108
68945BBOLT, BACK DOOR DAMPER STAY BRACKET
main90105-06119i201012-201810
sub90105-06184
main90105-06184i201810-202108
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-76010i201012-202108
68950CSTAY ASSY, BACK DOOR, RH
main68950-76020i201012-201112
sub68950-76021
main68950-76021i201201-201312
main68950-76040i201012-201112
REAR WINDOW WIPER-WITH
sub68950-76041
main68950-76041i201201-201312
REAR WINDOW WIPER-WITH
main68950-76041i201312-202108
68960STAY ASSY, BACK DOOR, LH
main68960-76020i201012-201112
sub68960-76021
main68960-76021i201201-201312
main68960-76040i201012-201112
REAR WINDOW WIPER-WITH
sub68960-76041
main68960-76041i201312-202108
main68960-76041i201201-201312
REAR WINDOW WIPER-WITH
68961BOLT, BACK DOOR STAY
main68961-20140i201012-202108
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-47020i201012-201211
sub69350-47040
main69350-47040i201212-201512
sub69350-47041
main69350-47041i201601-201902
sub69350-47042
main69350-47042i201902-202108
69415ECOVER, BACK DOOR LOCK STRIKER
main69415-47020i201012-202108
69430CSTRIKER ASSY, BACK DOOR LOCK
main69431-47010i201012-202108
9011906904
main90119-06904
9011908061
main90119-08061
9014880066
main90148-80066
9017908096
main90179-08096

16 parts on this diagram · 1 diagram in section
