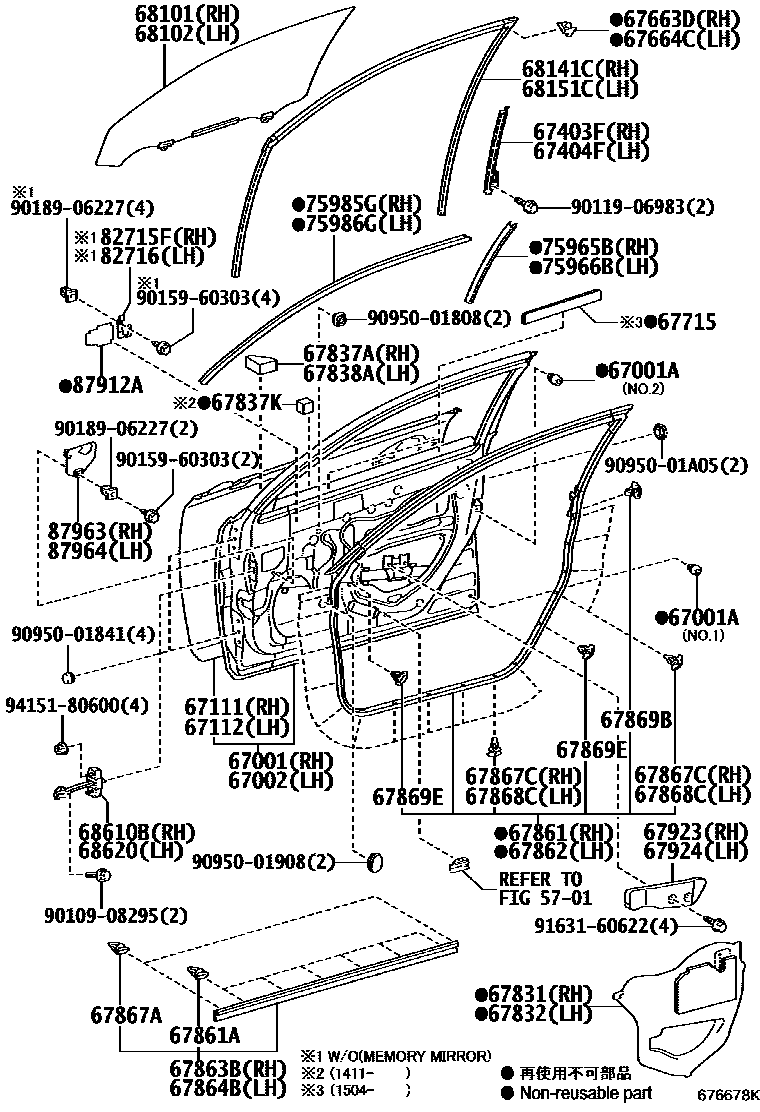

FRONT DOOR PANEL & GLASS

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-76020i201312-202108

KOREA SPEC

main67001-76020i201012-201312

67001ACUSHION, FRONT DOOR PANEL

main90541-09069i201012-202108

NO.1

main90541-09124i201012-202108

NO.2

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-76020i201012-201312

sub67002-76021

main67002-76020i201312-201402

KOREA SPEC

sub67002-76021

main67002-76021i201403-201409

KOREA SPEC

sub67002-76050

main67002-76050i201410-202108

KOREA SPEC

67111PANEL, FRONT DOOR, OUTER RH

main67111-76010i201012-202108

67112PANEL, FRONT DOOR, OUTER LH

main67112-76010i201012-202108

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-76010i201012-202108

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-76010i201012-202108

67663DGARNISH, DOOR FRAME, RH

main67663-76010i201012-202108

67664CGARNISH, DOOR FRAME, LH

main67664-76010i201012-202108

67715PAD, DOOR TRIM, NO.1

main67715-76020i201504-202108

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-76010i201012-201208

sub67831-76020

main67831-76020i201208-202108

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-76010i201012-201208

sub67832-76020

main67832-76020i201208-202108

67837ASEAL, FRONT DOOR VENT, RH

main67847-75010i201012-202108

67837KSEAL, FRONT DOOR VENT

main67847-48040i201411-202108

67838ASEAL, FRONT DOOR VENT, LH

main67847-75010i201012-202108

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-76010i201012-201306

sub67861-76011

main67861-76011i201307-202108

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150i201012-202108

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-76010i201012-201306

sub67862-76011

main67862-76011i201307-202108

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-76010i201012-202108

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-76010i201012-202108

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-48030i201012-202108

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150i201012-202108

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150i201012-202108

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67867-48030i201012-202108

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034i201012-201307

main90467-05017-C0i201307-201312

BLACK

sub90467-05017

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-76010i201012-202108

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-76010i201012-202108

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-76010i201012-202108

*UVCT,T=4.0,GREEN

main68101-76040i201312-202108

*UVCT,T=4.0,GREEN,FOR BRAZIL SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-76010i201012-202108

*UVCT,T=4.0,GREEN

main68102-76040i201312-202108

*UVCT,T=4.0,GREEN,FOR BRAZIL SPEC

68141CRUN, FRONT DOOR GLASS, RH

main68141-76010i201012-202108

68151CRUN, FRONT DOOR GLASS, LH

main68151-76010i201012-202108

68610BCHECK ASSY, FRONT DOOR, RH

main68610-76010i201012-201410

main68610-76011i201410-202108

68620CHECK ASSY, FRONT DOOR, LH

main68620-76010i201012-201410

main68620-76011i201410-202108

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-76010i201012-201203

main75965-76011i201203-202108

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-76010i201012-201203

main75966-76011i201203-202108

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-76010i201012-201203

main75985-76011i201203-202108

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-76010i201012-201203

main75986-76011i201203-202108

82715FBRACKET, WIRING HARNESS CLAMP, RH

main82715-76030i201704-201708

KOREA SPEC

main82715-76030i201012-202108

82716BRACKET, WIRING HARNESS CLAMP, LH

main82716-76010i201704-201708

KOREA SPEC

main82716-76010i201012-202108

87912APROTECTOR, OUTER MIRROR

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-*DA& DVD & 10SPEAKER

main87912-76010i201012-202108

main87912-76010i201704-201708

KOREA SPEC

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 10SPEAKER

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 13SPEAKER

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & DVD & 10SPEAKER

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main87912-76010i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-76010i201012-201409

sub87963-76011

main87963-76011i201410-202108

main87963-76011i201704-201708

KOREA SPEC

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 10SPEAKER

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 13SPEAKER

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & DVD & 10SPEAKER

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main87963-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-*DA& DVD & 10SPEAKER

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-76010i201012-201409

sub87964-76011

main87964-76011i201410-202108

main87964-76011i201704-201708

KOREA SPEC

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 10SPEAKER

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM & DVD &EMV & 13SPEAKER

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & DVD & 10SPEAKER

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main87964-76011i201704-201708

KOREA SPEC&INTERMITTENT WIPER-AUTO&SEAT COVER MATERIAL-LEATHER(F-SPORT)&AUDIO-*DA& DVD & 10SPEAKER

9010908295

main90109-08295

9011906983

main90119-06983

9015960303

main90159-60303

9018906227

main90189-06227

9095001808

main90950-01808

9095001841

main90950-01841

9095001908

main90950-01908

9095001A05

main90950-01A05

9163160622

main91631-60622

9415180600

main94151-80600

53 parts on this diagram · 2 diagrams in section
