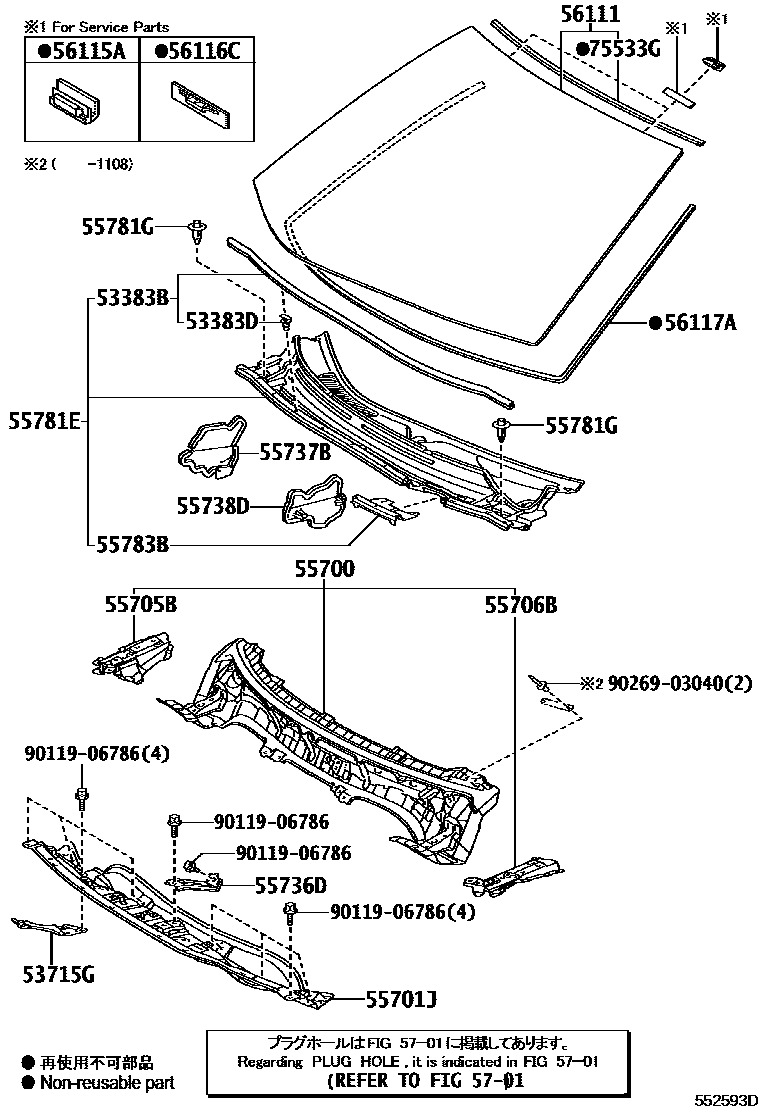

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-76010i201012-202108

main53383-76020i201012-201312

COLD AREA SPEC

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150i201012-202108

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-76010i201012-202108

55700PANEL ASSY, FRONT

main55700-76010i201012-201108

main55700-76011i201108-202108

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-76010i201012-201311

sub55701-76011

main55701-76011i201312-202108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-76010i201012-202108

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-76010i201012-202108

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-76010i201012-202108

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-76010i201012-202108

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55734-76010i201012-202108

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-76010i201012-202108

main55708-76040i201012-201312

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0i201012-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7i201703-202108

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-76010i201012-202108

56111GLASS, WINDSHIELD

main56101-76320i201012-201208

*EHL,T=4.76,GREEN

main56101-76360i201012-201108

*LAM,T=4.76,GREEN

sub56101-76361

main56101-76361i201108-201307

*LAM,T=4.76,GREEN

sub56101-76362

main56101-76362i201308-201708

*LAM,T=4.76,GREEN

main56101-76431i201208-201307

*EHL,T=4.76,GREEN

sub56101-76432

main56101-76432i201308-201312

*EHL,T=4.76,GREEN

main56101-76730i201708-202108

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i201012-202108

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201012-202108

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010i201012-201312

*D,L=2825,VERSION L&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,VERSION L&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE &COMPASS&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,VERSION L&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-*218 & BACK MONITOR&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,VERSION L&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,VERSION L&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,VERSION L&INSIDE REAR VIEW MIRROR-*218 & BACK MONITOR&SEAT COVER MATERIAL-LEATHER

main56117-64010i201012-201312

*D,L=2825,F SPORT&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEATCOVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-201312

*D,L=2825,F SPORT&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&SEAT COVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-201312

*D,L=2825,F SPORT&COLD AREA SPEC&INSIDE REAR VIEW MIRROR-*218 & BACK MONITOR&SEATCOVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-201312

*D,L=2825,F SPORT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-201312

*D,L=2825,F SPORT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&SEAT COVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-201312

*D,L=2825,F SPORT&INSIDE REAR VIEW MIRROR-*218 & BACK MONITOR&SEAT COVER MATERIAL-LEATHER(F-SPORT)

main56117-64010i201012-202108

*D,L=2825,COLD AREA SPEC

main56117-64010i201012-202108

*D,L=2825

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-76010i201012-202108

9011906786

main90119-06786

9026903040

main90269-03040

21 parts on this diagram · 1 diagram in section
