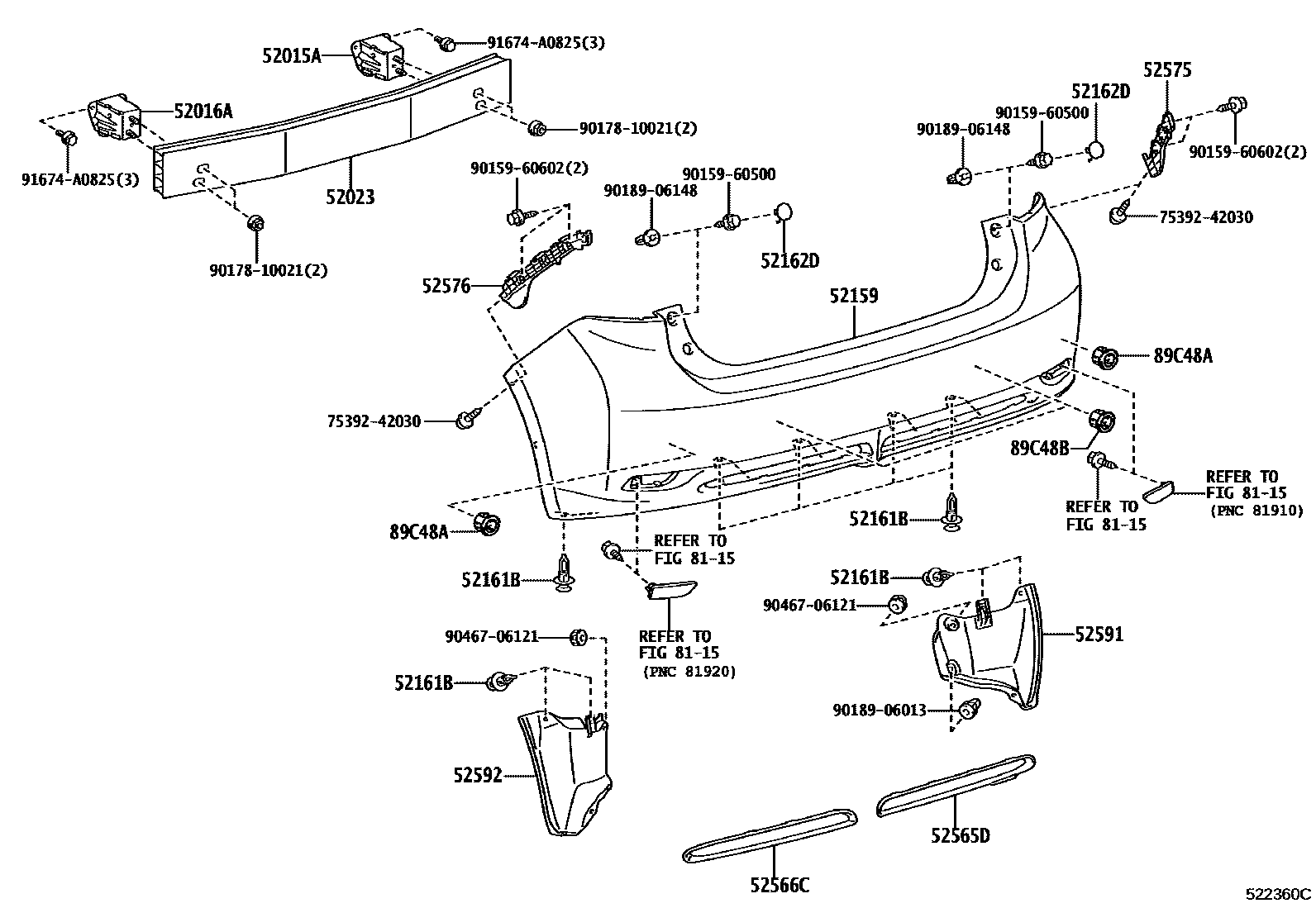

REAR BUMPER & BUMPER STAY

0001 1 0002 1AERO BUMPER 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-76020iZWA10201012-202108

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-76020iZWA10201012-202108

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-76010iZWA10201012-202108

52159COVER, REAR BUMPER

main52159-76900iZWA10201012-201312

PAINT REQ.

main52159-76904iZWA10201312-201708

PAINT REQ.

main52159-76911iZWA10201708-201912

main52159-76913iZWA10201912-202108

52161BPIECE, REAR BUMPER

main52161-16010iZWA10201012-202108

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-76901iZWA10201012-202108

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-76010iZWA10201012-201312

main52565-76020iZWA10201312-201708

main52565-76040iZWA10201708-202108

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-76010iZWA10201012-201312

main52566-76020iZWA10201312-201708

main52566-76040iZWA10201708-202108

52575RETAINER, REAR BUMPER SIDE, RH

main52575-76010iZWA10201012-202108

52576RETAINER, REAR BUMPER SIDE, LH

main52576-76010iZWA10201012-202108

52591SEAL, REAR BUMPER SIDE, RH

main52591-76010iZWA10201012-202108

52592SEAL, REAR BUMPER SIDE, LH

main52592-76010iZWA10201012-202108

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-78020iZWA10201912-202108

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-78020iZWA10201912-202108

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9015960500

main90159-60500

9015960602

main90159-60602

9017810021

main90178-10021

9018906013

main90189-06013

9018906148

main90189-06148

9046706121

main90467-06121

91674A0825

main91674-A0825

23 parts on this diagram · 4 diagrams in section
