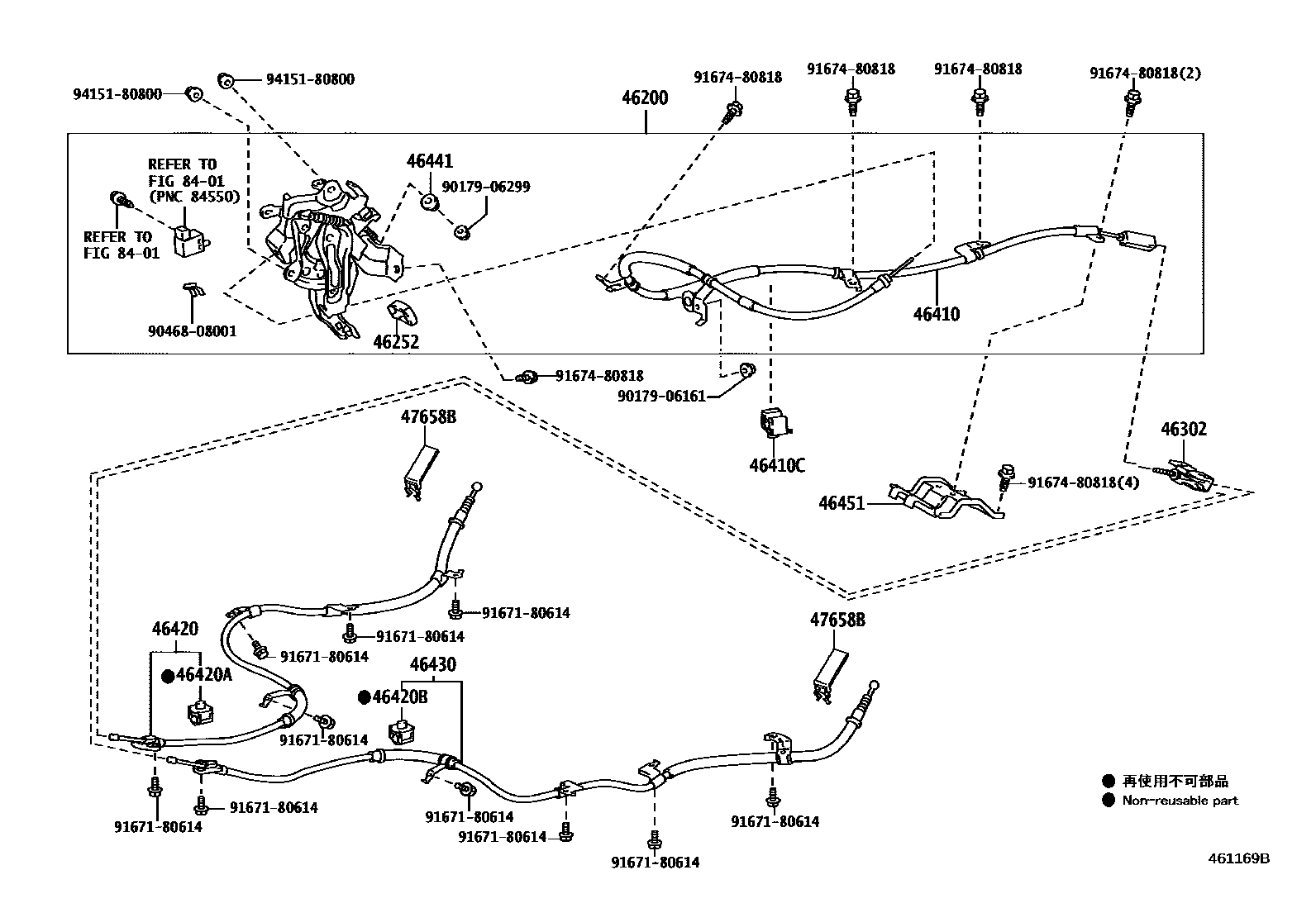

PARKING BRAKE & CABLE

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-76020iZWA10201012-202108

46252PAD, PARKING PEDAL

main46252-47010iZWA10201012-202108

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-75010iZWA10201012-202108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-76020iZWA10201012-202108

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-47020iZWA10201012-202108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-76010iZWA10..E201012-201312

main46420-76020iZWA10..B201012-202108

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZWA10201012-202108

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46402-12030iZWA10201012-202108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-76010iZWA10..E201012-201312

main46430-76020iZWA10..B201012-202108

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZWA10201012-202108

46451BRACKET, CABLE SUPPORT

main46451-76010iZWA10201012-202108

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-12010iZWA10201012-202108

8401

9017906161

main90179-06161

9017906299

main90179-06299

9046808001

main90468-08001

9167180614

main91671-80614

9167480818

main91674-80818

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
