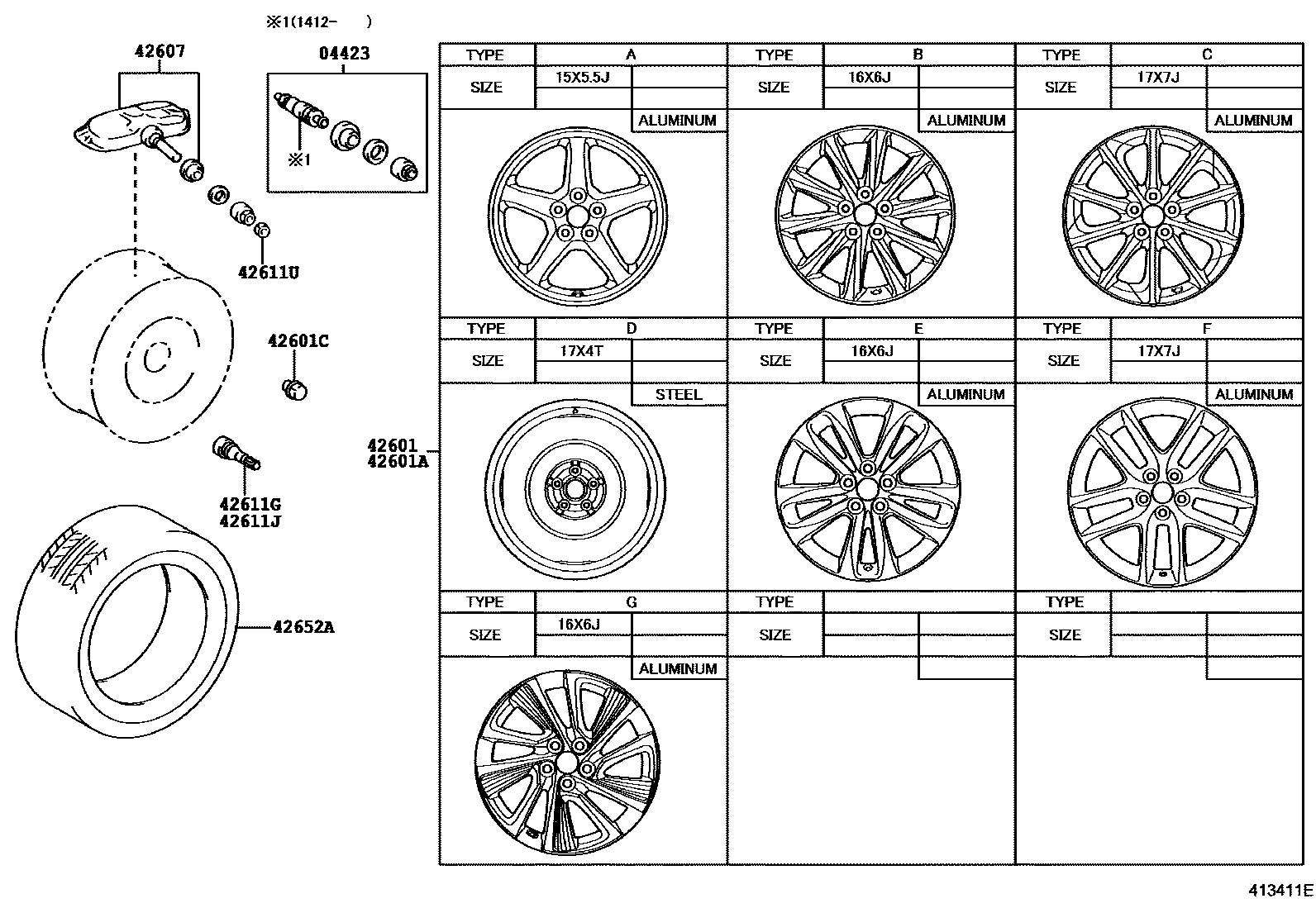

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030i201012-201312

TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT

sub04423-33060

main04423-33030i201312-201411

sub04423-33060

main04423-33060i201412-202108

42601WHEEL, DISC

main42611-76020i201012-201312

15X5.5J, #,TYPE A:REFER ILLUST.

main42611-76030i201012-201312

16X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES,TYPE B:REFERILLUST.

sub42611-76031

main42611-76030i201012-201312

16X6J, #,USA POSSESSIONS SPEC(SAIPAN)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES,TYPE B:REFER ILLUST.

sub42611-76031

main42611-76030i201012-201312

16X6J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES,TYPE B:REFER ILLUST.

sub42611-76031

main42611-76030i201012-201312

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE B:REFER ILLUST.

sub42611-76031

main42611-76030i201012-201312

16X6J, #,KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE B:REFER ILLUST.

sub42611-76031

main42611-76040i201012-201312

16X6J, #,CANADA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE B:REFER ILLUST.

main42611-76050i201012-201312

17X7J, #,TYPE C:REFER ILLUST.

sub42611-76051

main42611-76060i201012-201312

17X7J, #,CANADA SPEC,TYPE C:REFER ILLUST.

sub42611-76061

main42611-76070i201012-201312

17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALLSEASON TIRE F-SPORT,TYPE C:REFER ILLUST.

sub42611-76071

main42611-76070i201012-201312

17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALLSEASON TIRE F-SPORT,TYPE C:REFER ILLUST.

sub42611-76071

main42611-76080i201012-201312

17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALLSEASON TIRE F-SPORT,TYPE C:REFER ILLUST.

sub42611-76081

main42611-76090i201012-201312

16X6J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT,TYPE B:REFER ILLUST.

sub42611-76091

main42611-76090i201012-201312

16X6J, #,KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE B:REFER ILLUST.

sub42611-76091

main42611-76090i201012-201312

16X6J, #,MEXICO SPEC&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT,TYPEB:REFER ILLUST.

sub42611-76091

main42611-76090i201012-201312

16X6J, #,USA POSSESSIONS SPEC(SAIPAN)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT,TYPE B:REFER ILLUST.

sub42611-76091

main42611-76090i201012-201312

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE B:REFER ILLUST.

sub42611-76091

main42611-76100i201012-201312

16X6J, #,CANADA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE B:REFER ILLUST.

main42611-76130i201312-201704

16X6J, #,USA POSSESSIONS SPEC(GUAM, PUERTO RICO)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES,TYPE E:REFER ILLUST.

sub42611-76131

main42611-76130i201312-201704

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE E:REFER ILLUST.

sub42611-76131

main42611-76130i201312-201708

16X6J, #,KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE E:REFER ILLUST.

sub42611-76131

main42611-76140i201312-201704

16X6J, #,CANADA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE E:REFER ILLUST.

main42611-76170i201312-202108

17X7J, #,TYPE F:REFER ILLUST.

main42611-76180i201312-201704

17X7J, #,CANADA SPEC,TYPE F:REFER ILLUST.

main42611-76190i201312-201708

17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

main42611-76190i201312-201704

17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

main42611-76200i201312-201704

17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

main42611-76240i201708-202108

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE,TYPE G:REFER ILLUST.

main42611-76250i201508-201606

17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

main42611-76280i201508-201606

17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

main4261A-76030i201312-201704

16X6J, #,USA POSSESSIONS SPEC(GUAM, PUERTO RICO)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT,TYPE E:REFER ILLUST.

sub4261A-76031

main4261A-76030i201312-201908

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE E:REFER ILLUST.

sub4261A-76031

main4261A-76030i201312-201708

16X6J, #,KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE E:REFER ILLUST.

sub4261A-76031

main4261A-76031i201909-202108

16X6J, #,TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE E:REFER ILLUST.

main4261A-76040i201312-201704

16X6J, #,CANADA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT,TYPE E:REFER ILLUST.

main4261A-76080i201708-202108

17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21290i201012-201908

17X4T,TYPE D:REFER ILLUST.

sub42611-21291

main42611-21291i201909-202108

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033i201012-202108

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30070i201312-201404

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE

sub42607-30071

main42607-30070i201312-201404

KOREA SPEC

sub42607-30071

main42607-30070i201312-201404

KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT

sub42607-30071

main42607-30070i201312-201404

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT

sub42607-30071

main42607-30071i201405-201708

KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALL SEASON TIRE F-SPORT

main42607-30071i201405-201708

KOREA SPEC

main42607-30071i201405-201708

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE

main42607-30071i201405-201708

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT

main42607-30071i201708-202108

main42607-33021i201012-201708

sub42607-33022

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028i201012-201312

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE F-SPORT

main90942-05028i201012-201312

KOREA SPEC

main90942-05028i201012-201312

KOREA SPEC&TIRE & DISC WHEEL-205/55R16 6J ALL SEASON TIRE

main90942-05028i201012-201312

KOREA SPEC&TIRE & DISC WHEEL-215/45R17 7J ALLSEASON TIRE F-SPORT

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201012-202108

42611UCAP, TIRE VALVE

main90942-05037i201012-201207

main90942-05042i201207-202108

42652ATIRE (FOR SPARE)

main42652-2B460i201012-201312

T125/70D17,*B/S

main4265A-53010i201012-201312

T125/70D17 *Y/H,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-205/55R166J GENERAL COUNTRIES F-SPORT

sub4265A-53011

main4265A-53010i201012-201312

T125/70D17 *Y/H,MEXICO SPEC&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES

sub4265A-53011

main4265A-53010i201012-201312

T125/70D17 *Y/H,MEXICO SPEC&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT

sub4265A-53011

main4265A-53010i201012-201312

T125/70D17 *Y/H,USA POSSESSIONS SPEC(SAIPAN)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES

sub4265A-53011

main4265A-53010i201012-201312

T125/70D17 *Y/H,USA POSSESSIONS SPEC(SAIPAN)&TIRE & DISC WHEEL-205/55R16 6J GENERAL COUNTRIES F-SPORT

sub4265A-53011

main4265A-53010i201012-201312

T125/70D17 *Y/H,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-205/55R166J GENERAL COUNTRIES

sub4265A-53011

9 parts on this diagram · 2 diagrams in section
