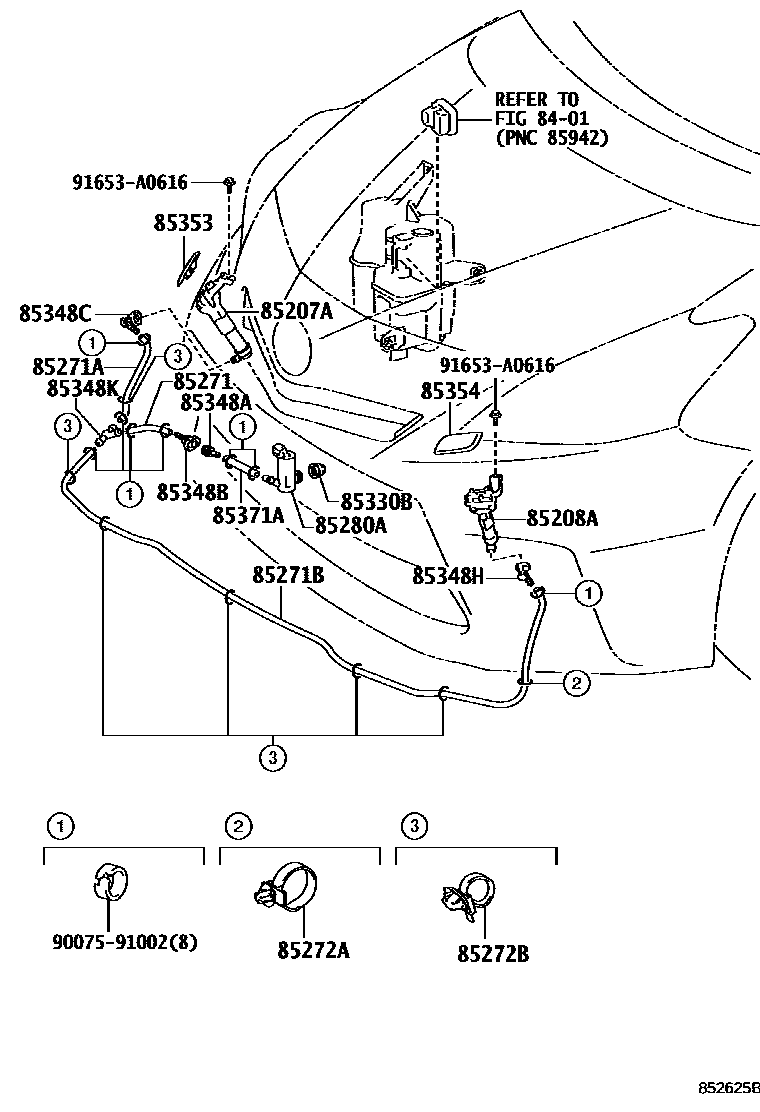

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
LX-TOURING PACKAGE&HEADLAMP-LED
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
LX-TOURING PACKAGE&HEADLAMP-LED
85271HOSE, HEADLAMP CLEANER, NO.1
L=100,LX-TOURING PACKAGE&HEADLAMP-LED
L=80,LX-TOURING PACKAGE&HEADLAMP-LED
85271AHOSE, HEADLAMP CLEANER, NO.2
L=260,LX-TOURING PACKAGE&HEADLAMP-LED
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1900,LX-TOURING PACKAGE&HEADLAMP-LED
85272ACLAMP, HEADLAMP CLEANER, NO.1
LX-TOURING PACKAGE&HEADLAMP-LED
85272BCLAMP, HEADLAMP CLEANER, NO.2
LX-TOURING PACKAGE&HEADLAMP-LED
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP-LED
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP-LED
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-LED
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
LX-TOURING PACKAGE&HEADLAMP-LED
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
LX-TOURING PACKAGE&HEADLAMP-LED
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
LX-TOURING PACKAGE&HEADLAMP-LED
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
LX-TOURING PACKAGE&HEADLAMP-LED
85353COVER, HEADLAMP WASHER, RH
LX-TOURING PACKAGE&HEADLAMP-LED,SUPER WHITE 2,040
sub85353-47901
LX-TOURING PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,070
sub85353-47901
LX-TOURING PACKAGE&HEADLAMP-LED,CLEAR STREAM ME.,787
sub85353-47901
LX-TOURING PACKAGE&HEADLAMP-LED,FROSTY GREEN MC.,781
sub85353-47901
85354COVER, HEADLAMP WASHER, LH
LX-TOURING PACKAGE&HEADLAMP-LED,SUPER WHITE 2,040
sub85354-47901
LX-TOURING PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,070
sub85354-47901
LX-TOURING PACKAGE&HEADLAMP-LED,CLEAR STREAM ME.,787
sub85354-47901
LX-TOURING PACKAGE&HEADLAMP-LED,FROSTY GREEN MC.,781
sub85354-47901
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,HEADLAMP-LED
9007591002
main90075-91002
91653A0616
main91653-A0616
20 parts on this diagram · 1 diagram in section
