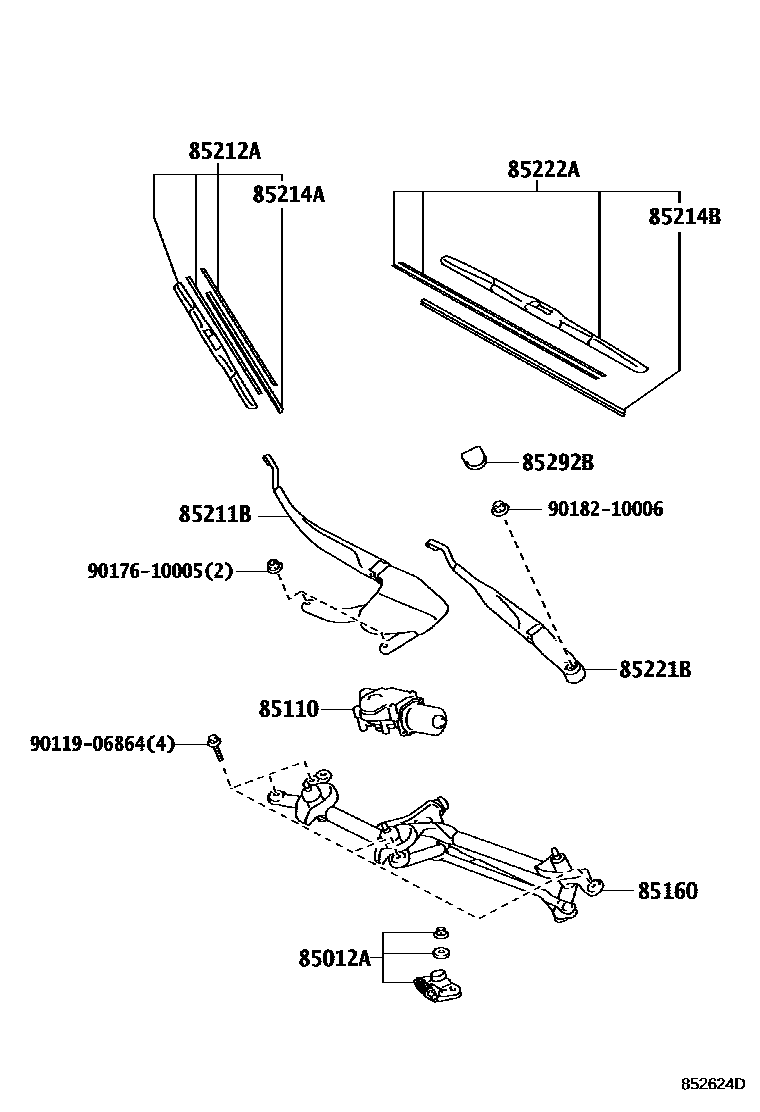

WINDSHIELD WIPER

0001 1 0002 1KOREA SPEC

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-47020iZVW41201109-201511

sub85012-47021

main85012-47021iZVW41201512-201811

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47180iZVW41201109-201811

85160LINK ASSY, WINDSHIELD WIPER

main85150-47160iZVW41201109-201811

85211BARM, FRONT WIPER, RH

main85211-47140iZVW41201109-201811

85212ABLADE, FR WIPER, RH

main85212-47060iZVW41201109-201811

85214ARUBBER, WIPER, RH

main85214-47050iZVW41201109-201112

sub85214-47051

main85214-47051iZVW41201201-201811

85214BRUBBER, WIPER, LH

main85214-47060iZVW41201109-201112

sub85214-47061

main85214-47061iZVW41201201-201811

85221BARM, FRONT WIPER, LH

main85221-47120iZVW41201109-201811

85222ABLADE, FR WIPER, LH

main85222-47040iZVW41201109-201811

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW41201109-201811

9011906864

main90119-06864

9017610005

main90176-10005

9018210006

main90182-10006

13 parts on this diagram · 2 diagrams in section
