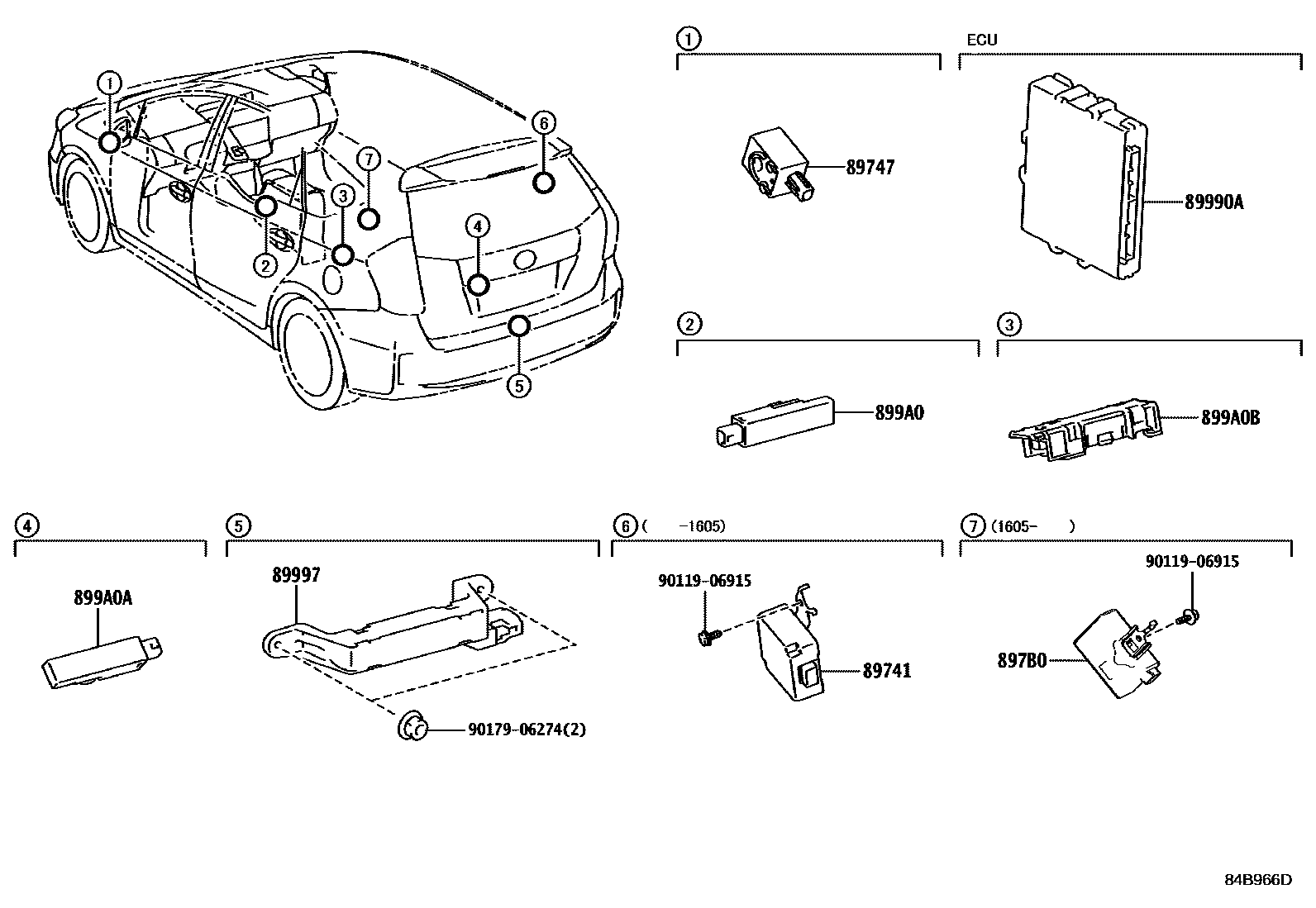

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-47080iZVW41201109-201605

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW41201109-201811

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-47110iZVW41201605-201811

89990ACOMPUTER ASSY, SMART KEY

main89990-47110iZVW41201109-201203

main89990-47111iZVW41201203-201411

main89990-47122iZVW41201411-201605

main89990-47330iZVW41201605-201811

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW41201411-201811

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW41201109-201811

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iZVW41201109-201811

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47040iZVW41201109-201211

sub899A0-47041

main899A0-47041iZVW41201212-201403

sub899A0-47042

main899A0-47042iZVW41201404-201811

9011906915

main90119-06915

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
