SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR,ROOF,FLOOR & BACK DOOR

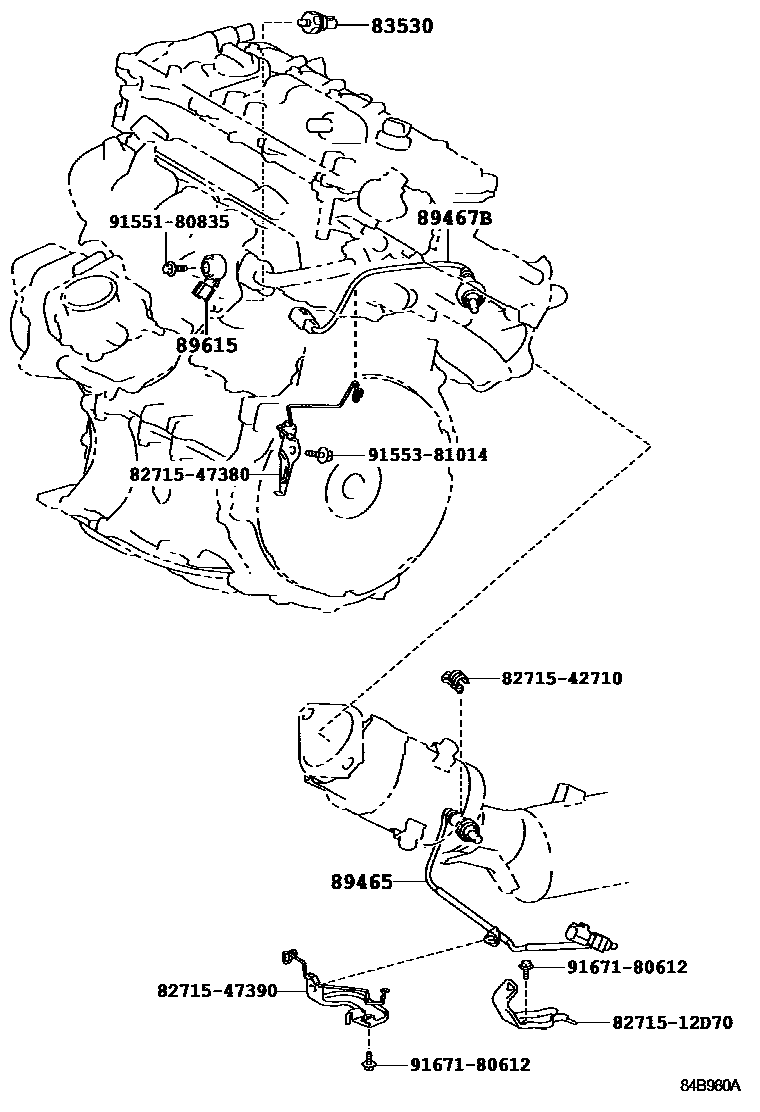

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZVW41201310-201402

sub83530-12060

main83530-12060iZVW41201411-201811

main83530-12060iZVW41201402-201411

YAZAKI

main83530-12070iZVW41201402-201411

DENSO

sub83530-12060

main83530-28020iZVW41201109-201310

89465SENSOR, OXYGEN

main89465-47080iZVW41201109-201308

main89465-76010iZVW41201308-201811

89467BSENSOR, AIR FUEL RATIO

main89467-52060iZVW41201109-201811

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW41201109-201811

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

9155180835

main91551-80835

9155381014

main91553-81014

9167180612

main91671-80612

11 parts on this diagram · 10 diagrams in section
