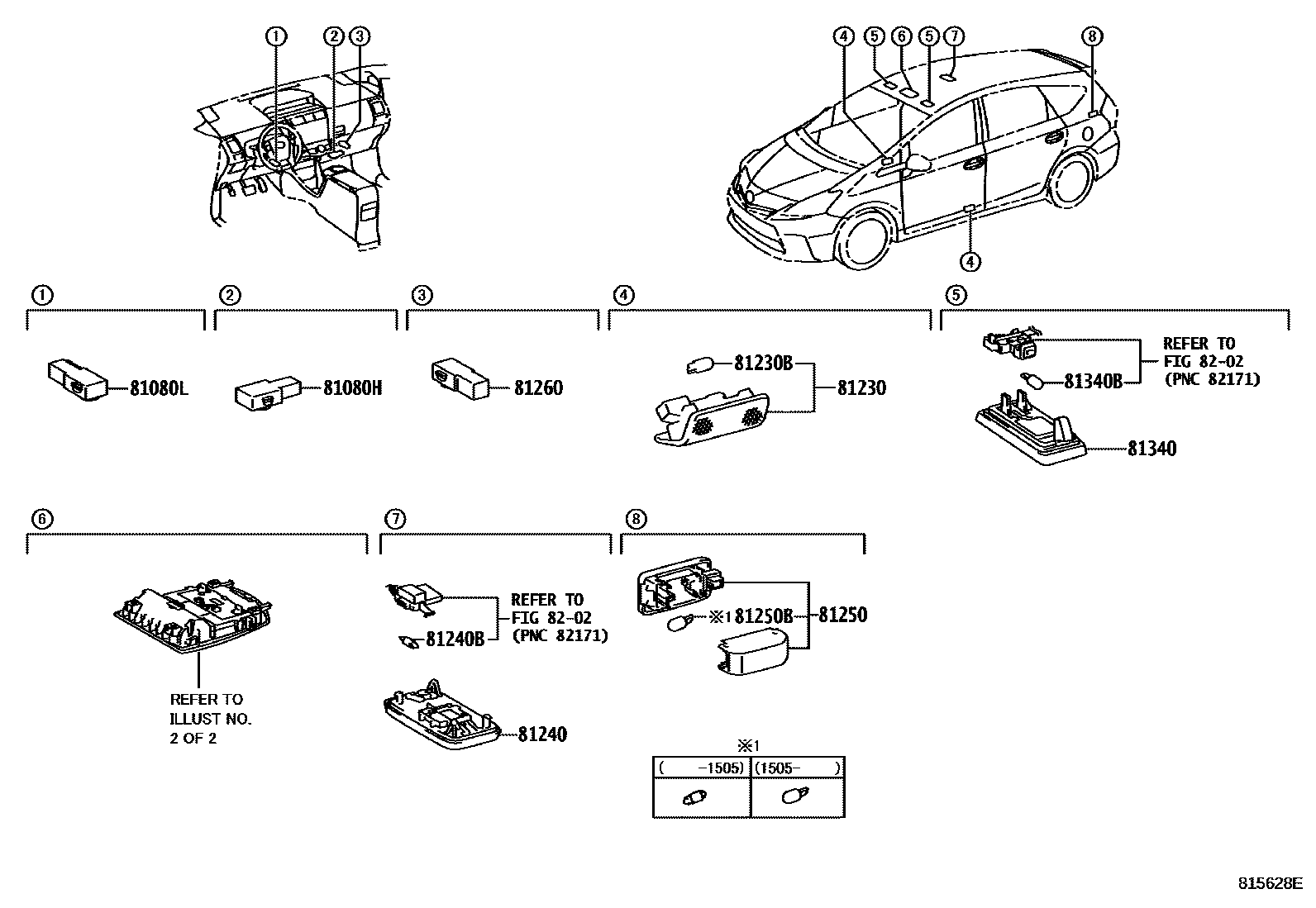

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iZVW41201411-201711

main81080-48010iZVW41201109-201411

FRONT FOOT LAMP-WITH

main81080-52050iZVW41201712-201811

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iZVW41201109-201411

FRONT FOOT LAMP-WITH

main81080-48010iZVW41201411-201711

main81080-52050iZVW41201712-201811

81230LAMP ASSY, COURTESY

main81230-30200iZVW41201306-201811

main81230-47010iZVW41201109-201305

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iZVW41201109-201811

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B0iZVW41201411-201811

LT.GRAY,TRIM1#,2#,4#

sub81240-12100

main81240-60060-B0iZVW41201109-201411

LT.GRAY,TRIM1#,4#,6#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW41201109-201811

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZVW41201109-201504

main81330-58010iZVW41201505-201811

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZVW41201505-201811

12V 5W

main99132-13050iZVW41201109-201505

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZVW41201109-201711

main81080-52050iZVW41201712-201811

81340LAMP ASSY, VANITY

main81340-30100-B0iZVW41201109-201211

LT.GRAY,TRIM1#,4#,6#

main81340-30110iZVW41201211-201811

81340BBULB (FOR VANITY LAMP)

main90981-11062iZVW41201109-201811

12V 8W

8202

12 parts on this diagram · 2 diagrams in section
