HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81179COVER, HEADLAMP SOCKET
LX-TOURING PACKAGE&HEADLAMP-LED
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195SCREW, HEADLAMP
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81710FBULB, FRONT SIDE MAKER LAMP
9010506298
main90105-06298
9015950311
main90159-50311
9018905142
main90189-05142

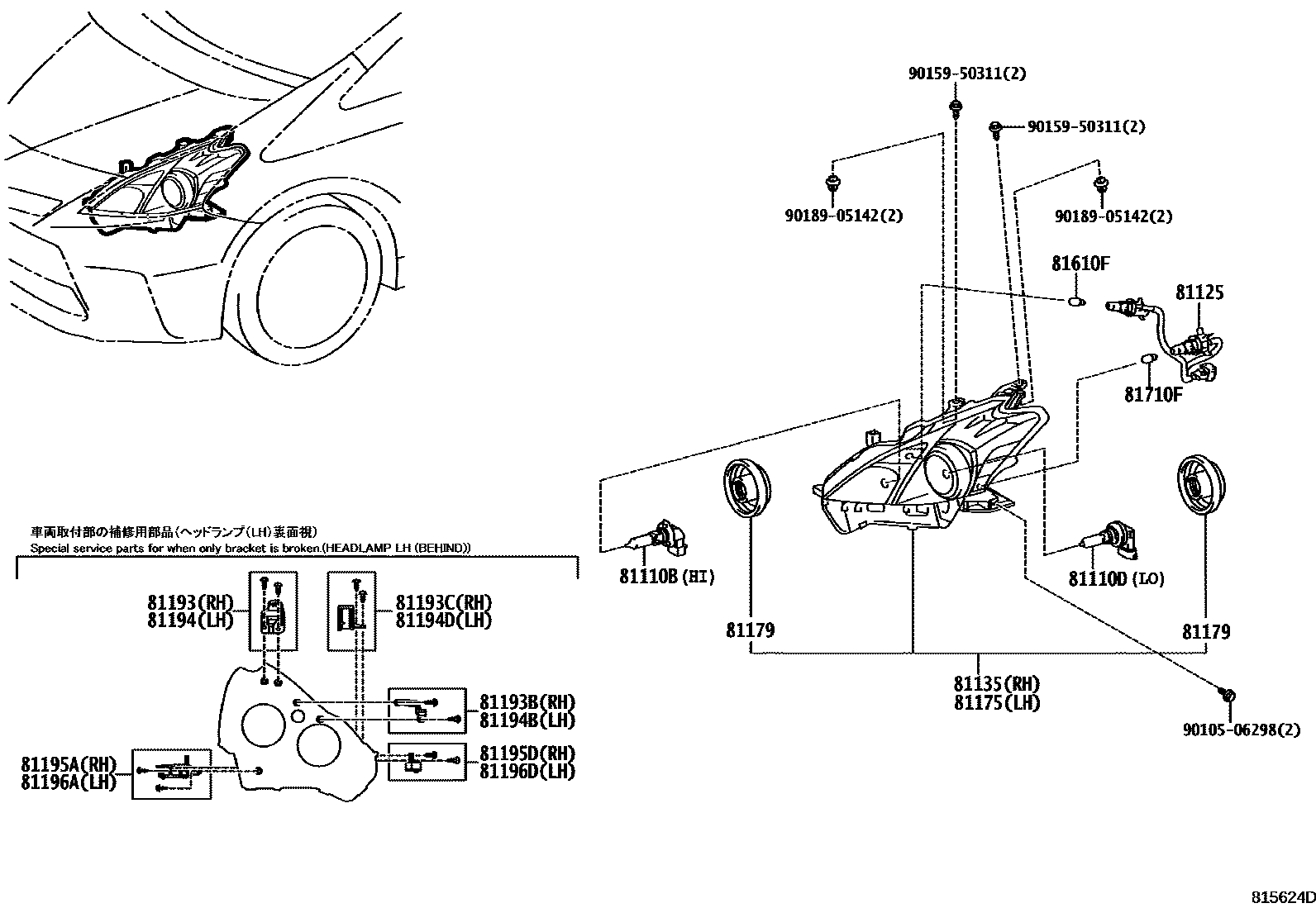

22 parts on this diagram · 4 diagrams in section
