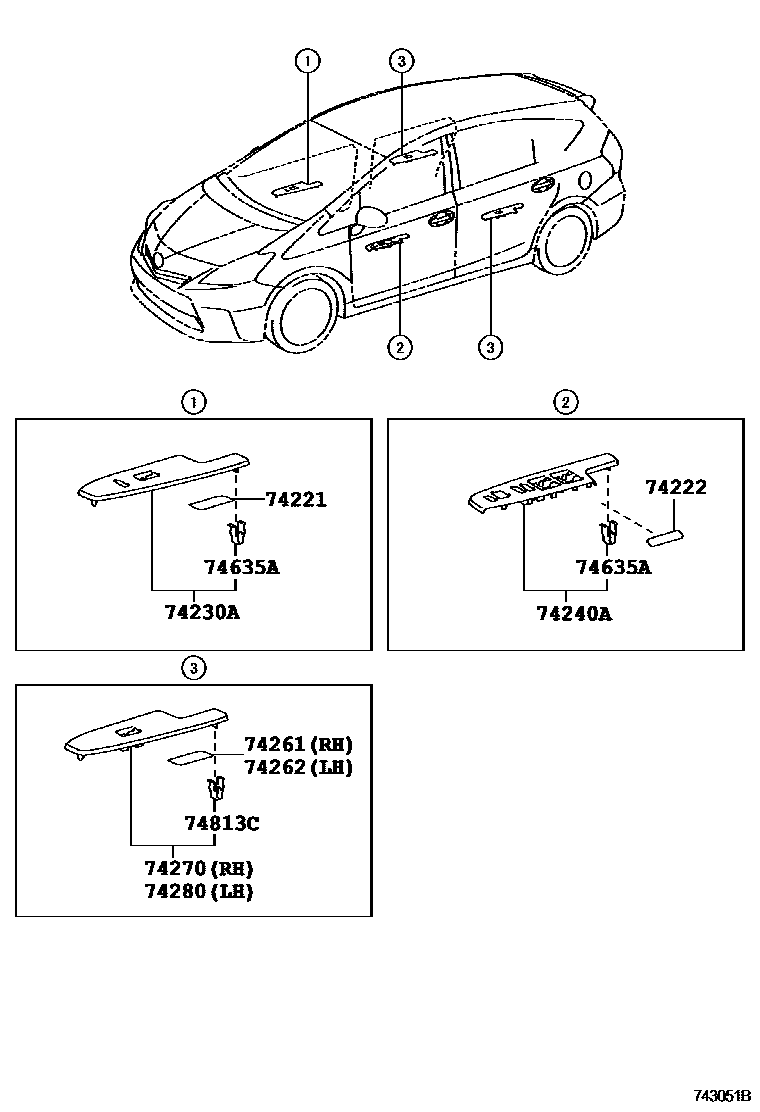

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221COVER, DOOR ARMREST, RH

main74221-47030iZVW41201109-201811

74222COVER, DOOR ARMREST, LH

main74221-47030iZVW41201109-201811

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47150iZVW41201109-201411

main74231-47260iZVW41201411-201811

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47120iZVW41201109-201411

main74232-47230iZVW41201411-201811

74261COVER, REAR DOOR ARMREST, RH

main74221-47030iZVW41201109-201811

74262COVER, REAR DOOR ARMREST, LH

main74221-47030iZVW41201109-201811

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47070iZVW41201109-201411

main74271-47140iZVW41201411-201811

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47070iZVW41201109-201411

main74272-47140iZVW41201411-201811

74635ACLIP

main90467-12080iZVW41201109-201811

74813CCLIP

main90467-12080iZVW41201109-201811

10 parts on this diagram · 2 diagrams in section
