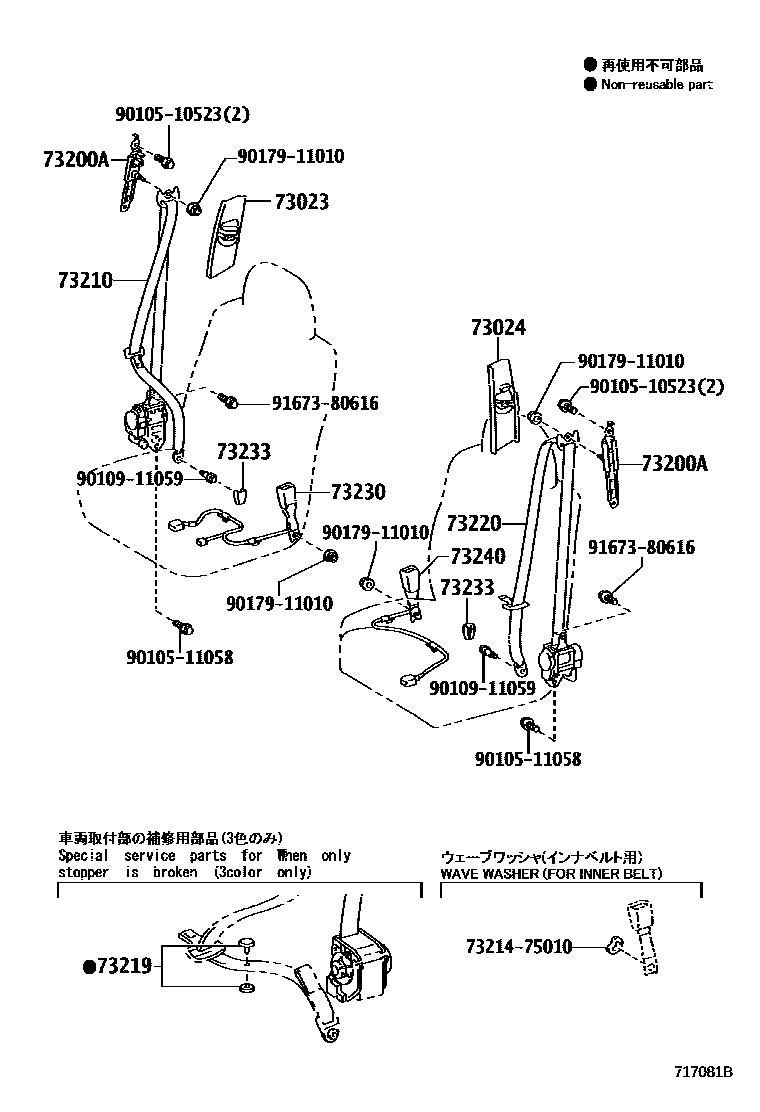

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,4#,6#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
BLACK,TRIM1#,2#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
BLACK,TRIM1#,2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010510523
9010511058
9010911059
9017911010
9167380616
15 parts on this diagram · 2 diagrams in section
