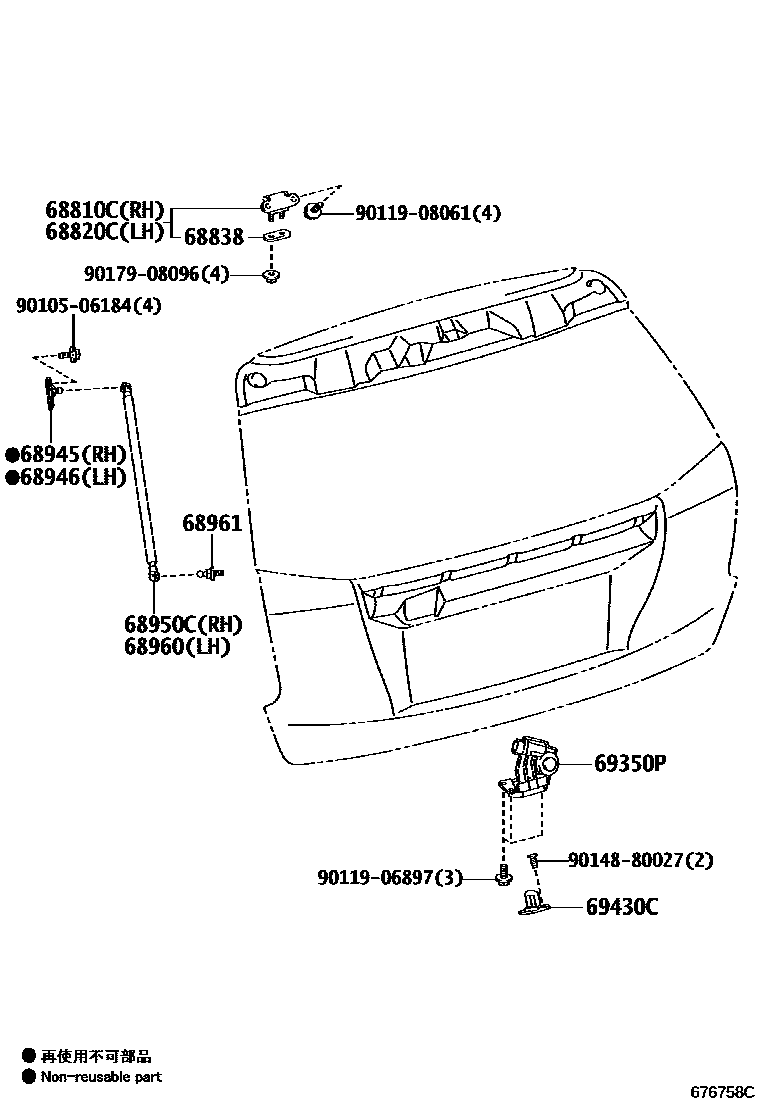

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZVW41201109-201811

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZVW41201109-201811

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZVW41201109-201811

T=2.0

main68838-44020iZVW41201109-201811

T=1.0

main68838-52020iZVW41201109-201811

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47020iZVW41201109-201111

main68945-47030iZVW41201111-201811

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-47010iZVW41201109-201111

main68946-47020iZVW41201111-201811

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W790iZVW41201308-201811

main68950-47050iZVW41201111-201112

sub68950-47051

main68950-47051iZVW41201201-201308

sub68950-0W790

main68950-47090iZVW41201109-201111

sub68950-47091

68960STAY ASSY, BACK DOOR, LH

main68960-0W790iZVW41201308-201811

main68960-47050iZVW41201111-201112

sub68960-47051

main68960-47051iZVW41201201-201308

sub68960-0W790

main68960-47090iZVW41201109-201111

sub68960-47091

68961BOLT, BACK DOOR STAY

main68961-20140iZVW41201109-201811

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZVW41201109-201512

sub69350-28151

main69350-28151iZVW41201601-201811

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZVW41201109-201811

9010506184

main90105-06184

9011906897

main90119-06897

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
