E
EPC Data

DECK BOARD & DECK TRIM COVER

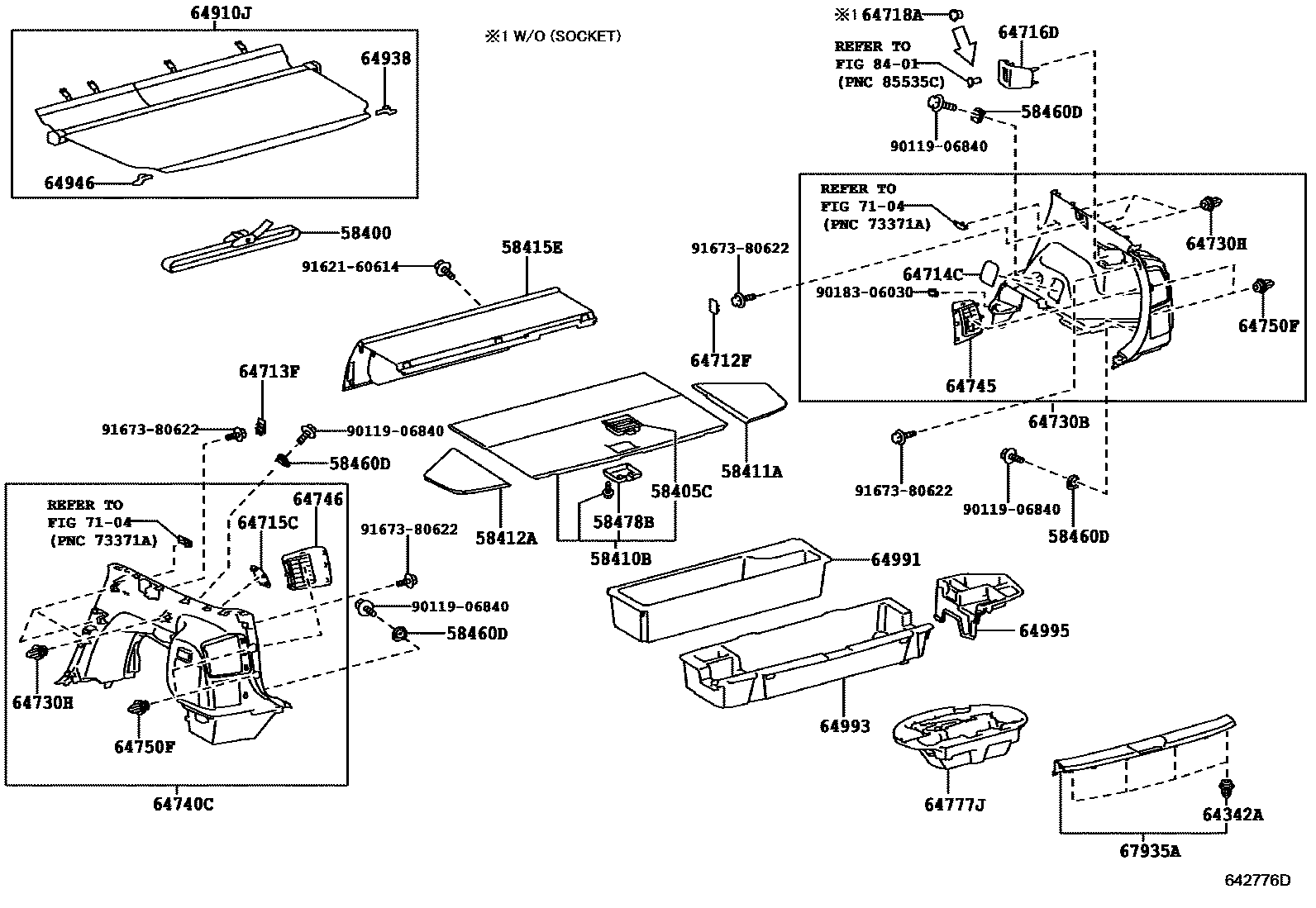

Parts diagram
58400BELT ASSY, LUGGAGE HOLD, NO.1
main58400-47010i201109-201508
58405CLOCK SUB-ASSY, DECK BOARD
main58405-76010-B0i201109-201811
MD.GRAY,TRIM1#
main58405-76010-C0i201411-201811
BLACK,TRIM2#
main58405-76010-E1i201109-201811
GREGE,TRIM4#
main58405-76010-G1i201109-201411
AQUA,TRIM6#
58410BBOARD ASSY, DECK
main58410-47020-B1i201109-201811
GRAY,TRIM1#
main58410-47020-C0i201411-201811
BLACK,TRIM2#
main58410-47020-E2i201109-201811
GREGE,TRIM4#
main58410-47020-G2i201109-201411
AQUA,TRIM6#
58411ABOARD, DECK, NO.1
main58411-47010-B1i201109-201811
DARK GRAY,TRIM1#
main58411-47010-C0i201411-201811
BLACK,TRIM2#
main58411-47010-E2i201109-201811
GREGE,TRIM4#
main58411-47010-G2i201109-201411
AQUA,TRIM6#
58412ABOARD, DECK, NO.2
main58412-47010-B1i201109-201811
DARK GRAY,TRIM1#
main58412-47010-C0i201411-201811
BLACK,TRIM2#
main58412-47010-E2i201109-201811
GREGE,TRIM4#
main58412-47010-G2i201109-201411
AQUA,TRIM6#
58415EBOARD, REAR FLOOR, NO.1
main58415-47060-B1i201109-201811
GRAY,TRIM1#
main58415-47060-C0i201411-201811
BLACK,TRIM2#
main58415-47060-E2i201109-201811
GREGE,TRIM4#
main58415-47060-G2i201109-201411
AQUA,TRIM6#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i201109-201811
58478BPROTECTOR, DECK BOARD
main58478-76010-C0i201109-201811
BLACK
64342ACLIP
main90467-10161i201109-201811
64712FCOVER, DECK SIDE TRIM, FRONT RH
main64712-47010-B0i201109-201411
MD.GRAY,TRIM1#
main64712-47010-B1i201411-201811
GRAY,TRIM1#
main64712-47010-C0i201411-201811
BLACK,TRIM2#
main64712-47010-E0i201109-201811
GREGE,TRIM4#
main64712-47010-G0i201109-201411
AQUA,TRIM6#
64713FCOVER, DECK SIDE TRIM, FRONT LH
main64712-47010-B0i201109-201411
MD.GRAY,TRIM1#
main64712-47010-B1i201411-201811
GRAY,TRIM1#
main64712-47010-C0i201411-201811
BLACK,TRIM2#
main64712-47010-E0i201109-201811
GREGE,TRIM4#
main64712-47010-G0i201109-201411
AQUA,TRIM6#
64714CCOVER, DECK SIDE TRIM, RH
main64714-47050-B0i201109-201411
MD.GRAY,TRIM1#
main64714-47050-B1i201411-201811
GRAY,TRIM1#
main64714-47050-C0i201411-201811
BLACK,TRIM2#
main64714-47050-E0i201109-201811
GREGE,TRIM4#
main64714-47050-G0i201109-201411
AQUA,TRIM6#
64715CCOVER, DECK SIDE TRIM, LH
main64715-47050-B0i201109-201411
MD.GRAY,TRIM1#
main64715-47050-B1i201411-201811
GRAY,TRIM1#
main64715-47050-C0i201411-201811
BLACK,TRIM2#
main64715-47050-E0i201109-201811
GREGE,TRIM4#
main64715-47050-G0i201109-201411
AQUA,TRIM6#
64716DCOVER, DECK TRIM, REAR
main64716-47070-B0i201109-201411
MD.GRAY,TRIM1#
main64716-47070-B1i201411-201811
GRAY,TRIM1#
main64716-47070-C0i201411-201811
BLACK,TRIM2#
main64716-47070-E0i201109-201811
GREGE,TRIM4#
main64716-47070-G0i201109-201411
AQUA,TRIM6#
64718ACOVER, DECK TRIM SERVICE HOLE
main55548-60070i201109-201411
VALUE PACKAGE
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-47080-B0i201109-201411
MD.GRAY,TRIM1#
main64730-47080-B1i201411-201811
GRAY,TRIM1#
main64730-47080-C0i201411-201811
BLACK,TRIM2#
main64730-47080-E0i201109-201811
GREGE,TRIM4#
main64730-47080-G0i201109-201411
AQUA,TRIM6#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
main90467-09236i201109-201302
main90467-09240i201303-201811
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-47090-B0i201109-201411
MD.GRAY,TRIM1#
main64740-47090-B1i201411-201811
GRAY,TRIM1#
main64740-47090-C0i201411-201811
BLACK,TRIM2#
main64740-47090-E0i201109-201811
GREGE,TRIM4#
main64740-47090-G0i201109-201411
AQUA,TRIM6#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-47040-B0i201109-201411
MD.GRAY,TRIM1#
main64745-47040-B1i201411-201811
GRAY,TRIM1#
main64745-47040-C0i201411-201811
BLACK,TRIM2#
main64745-47040-E0i201109-201811
GREGE,TRIM4#
main64745-47040-G0i201109-201411
AQUA,TRIM6#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-47030-B0i201109-201411
MD.GRAY,TRIM1#
main64746-47030-B1i201411-201811
GRAY,TRIM1#
main64746-47030-C0i201411-201811
BLACK,TRIM2#
main64746-47030-E0i201109-201811
GREGE,TRIM4#
main64746-47030-G0i201109-201411
AQUA,TRIM6#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-10161i201109-201811
64777JCUSHION, SPARE WHEEL
main64777-47080i201109-201811
64910JCOVER ASSY, TONNEAU
main64910-47030-B0i201109-201207
LT.GRAY,TRIM1#,4#,6#
sub64910-47031
main64910-47030-B0i201109-201207
VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6#
sub64910-47031
main64910-47030-B0i201109-201207
PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6#
sub64910-47031
main64910-47031-B0i201208-201411
VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6#
main64910-47031-B0i201208-201411
PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6#
main64910-47031-B0i201208-201411
LT.GRAY,TRIM1#,4#,6#
main64910-47031-B0i201411-201811
LT.GRAY,TRIM1#,2#,4#
64938HOOK, TONNEAU COVER, A
main64938-47040-B0i201109-201411
PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6#
main64938-47040-B0i201109-201411
LT.GRAY,TRIM1#,4#,6#
main64938-47040-B0i201109-201411
VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6#
main64938-47040-B0i201411-201811
LT.GRAY,TRIM1#,2#,4#
64946HOOK, TONNEAU COVER, B
main64946-47040-B0i201109-201411
VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6#
main64946-47040-B0i201109-201411
PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6#
main64946-47040-B0i201109-201411
LT.GRAY,TRIM1#,4#,6#
main64946-47040-B0i201411-201811
LT.GRAY,TRIM1#,2#,4#
64991BOX, DECK FLOOR, FRONT
main64991-47010i201109-201307
sub64991-47020
main64991-47020i201308-201811
64993BOX, DECK FLOOR, REAR
main64993-47060i201109-201811
64995BOX, DECK FLOOR, RH
main64995-47010i201109-201811
67935APLATE, BACK DOOR SCUFF
main67935-47010-B0i201109-201411
MD.GRAY,TRIM1#
main67935-47010-B1i201411-201811
GRAY,TRIM1#
main67935-47010-C0i201411-201811
BLACK,TRIM2#
main67935-47010-E0i201109-201811
GREGE,TRIM4#
main67935-47010-G0i201109-201411
AQUA,TRIM6#
7104
8401
9011906840
main90119-06840
9018306030
main90183-06030
9162160614
main91621-60614
9167380622
main91673-80622

35 parts on this diagram · 1 diagram in section
