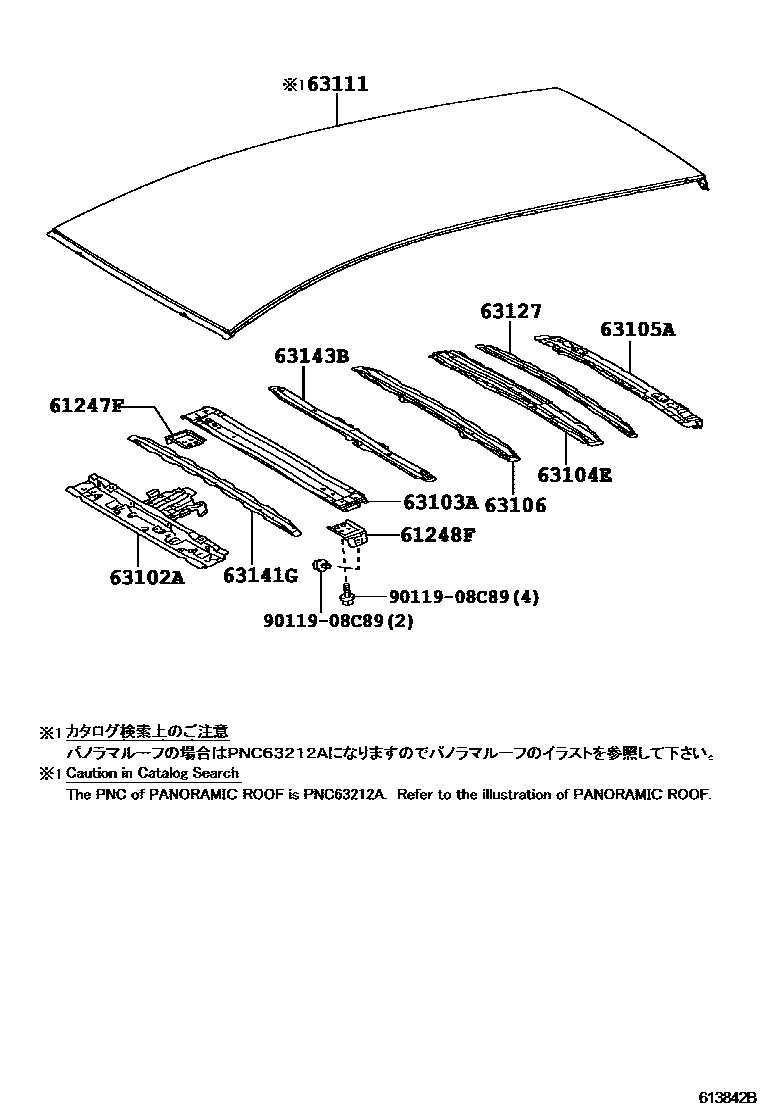

ROOF PANEL & BACK WINDOW GLASS

0001 1STANDARD ROOF 0002 1PANORAMIC ROOF

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-47040iZVW41201109-201811

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-47040iZVW41201109-201811

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47901iZVW41201109-201811

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47020iZVW41201109-201811

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-47010iZVW41201109-201811

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-47030iZVW41201109-201811

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-47010iZVW41201109-201811

63111PANEL, ROOF

main63111-47050iZVW41201109-201811

REFER TO ILLUST.

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-47020iZVW41201109-201811

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-47010iZVW41201109-201811

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47040iZVW41201109-201811

9011908C89

main90119-08C89

12 parts on this diagram · 2 diagrams in section
