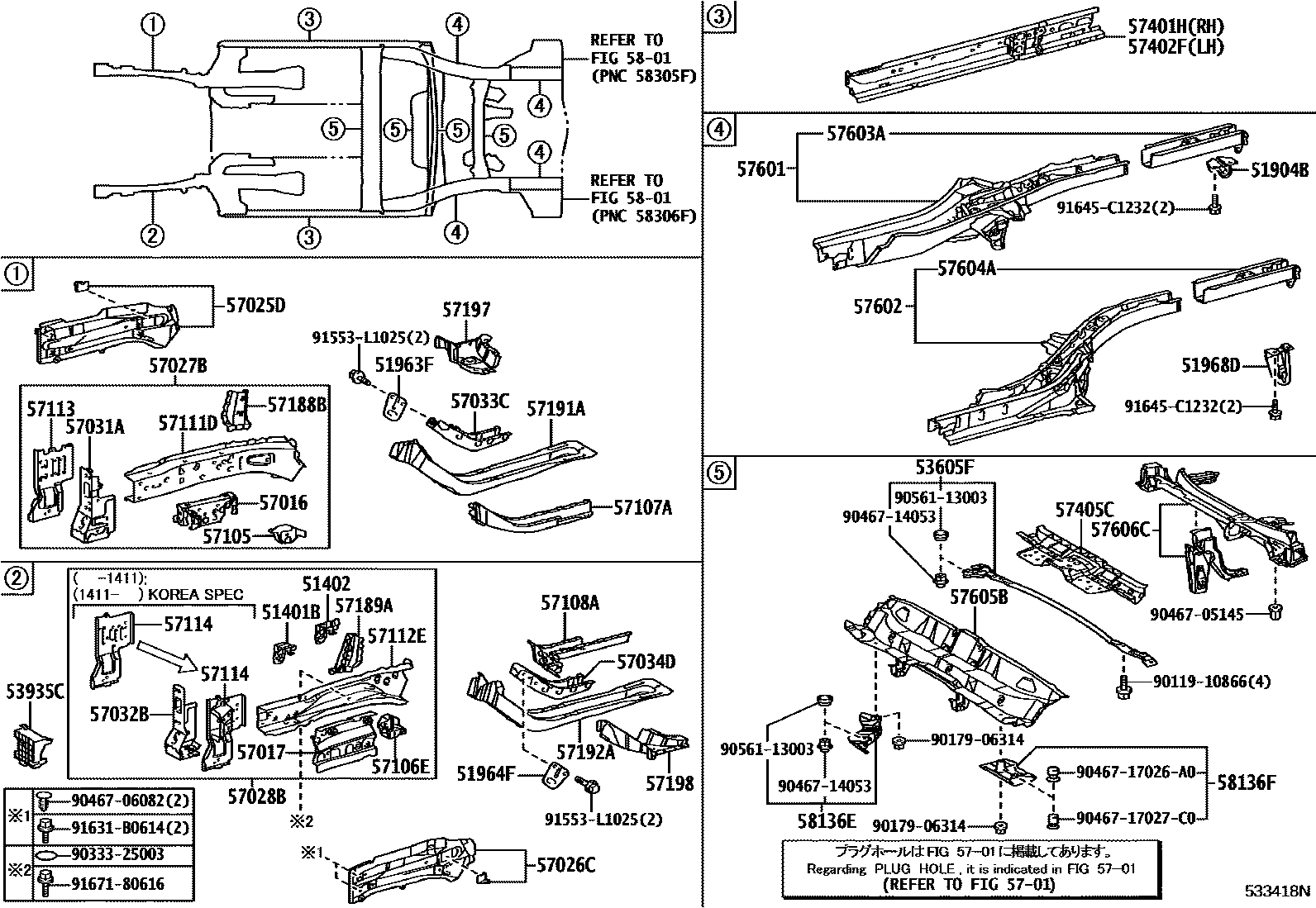

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020i201109-201811

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020i201109-201811

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-47010i201109-201811

51963FHOOK, TRANSPORT

main51963-12250i201109-201811

51964FHOOK, TRANSPORT, LH

main51964-12040i201109-201811

51968DHOOK, TRANSPORT, REAR LH

main51968-12180i201109-201811

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-47020i201109-201306

sub53605-47021

main53605-47021i201307-201811

53935CPROTECTOR, FRONT END PANEL

main53935-47010i201109-201811

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i201109-201811

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i201109-201811

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010i201109-201811

sub57115-12090

sub51681-12080

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020i201109-201811

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010i201109-201811

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020i201109-201411

main57028-47030i201411-201811

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i201109-201811

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i201109-201811

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010i201109-201811

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010i201109-201811

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i201109-201811

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i201109-201811

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120i201109-201811

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140i201109-201811

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230i201109-201811

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190i201109-201811

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i201109-201811

57114EXTENSION, FRONT SIDE MEMBER, LH

main57038-47010i201411-201811

main57114-12190i201109-201406

sub57114-12191

main57114-12191i201407-201411

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030i201109-201811

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010i201109-201811

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070i201109-201811

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060i201109-201811

57197BOX, TORQUE, FRONT RH

main57197-12040i201109-201811

57198BOX, TORQUE, FRONT LH

main57078-47020i201411-201811

main57198-12040i201109-201411

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-72010i201109-201811

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-47130i201411-201811

main57402-72010i201109-201411

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-72011i201109-201811

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-47900i201109-201811

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-47900i201109-201811

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47050i201109-201811

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47050i201109-201811

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47070i201109-201811

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47061i201109-201811

5801

58136ECOVER, FRONT SIDE MEMBER

main58167-47040i201109-201811

58136FCOVER, FRONT SIDE MEMBER

main58168-72010i201109-201811

9011910866

main90119-10866

9017906314

main90179-06314

9033325003

main90333-25003

9046705145

main90467-05145

9046706082

main90467-06082

9046714053

main90467-14053

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616

58 parts on this diagram · 1 diagram in section
