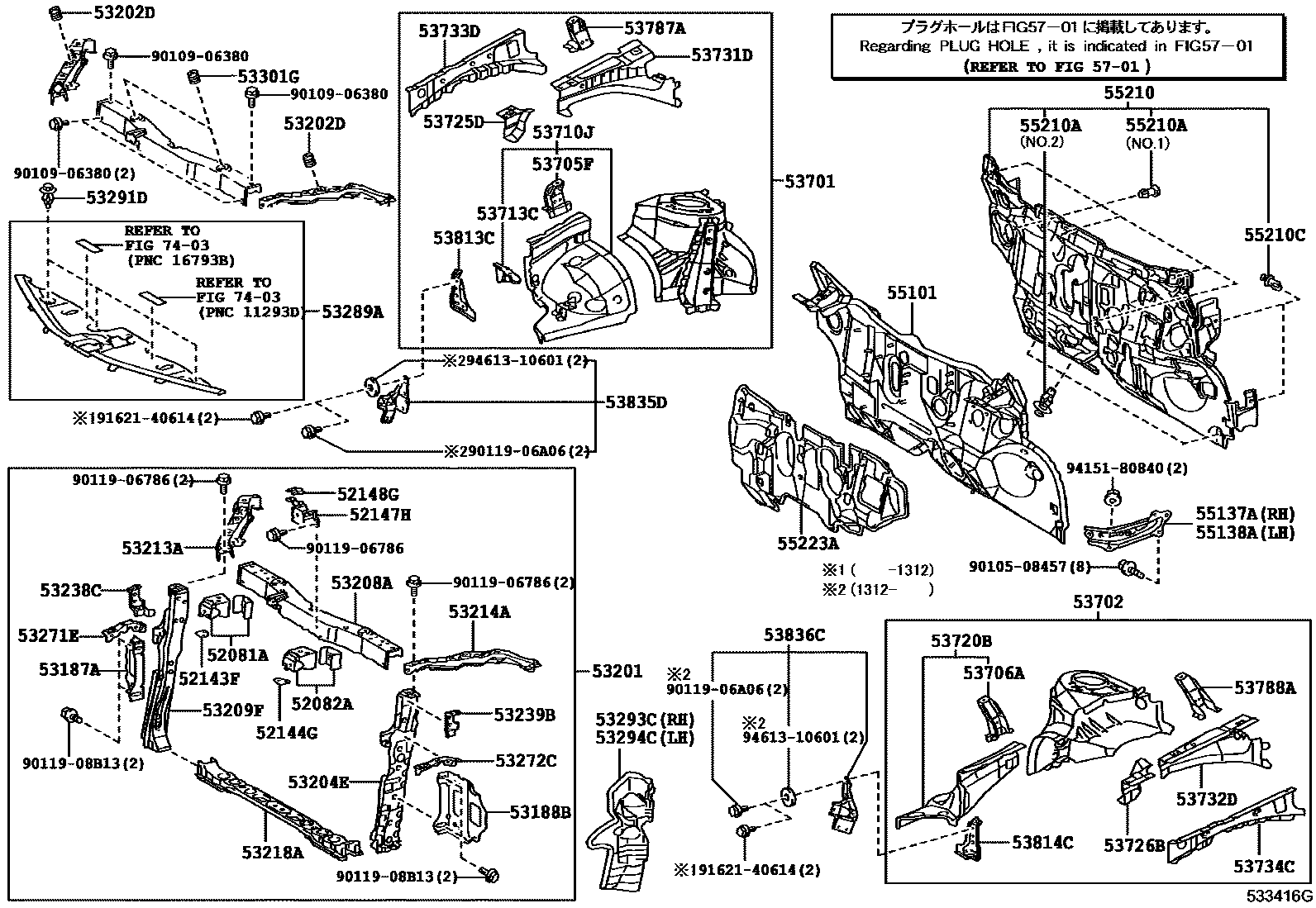

FRONT FENDER APRON & DASH PANEL

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-47040iZVW41201109-201811

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-47040iZVW41201109-201811

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-47010iZVW41201109-201811

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-47010iZVW41201109-201811

52147HBRACKET, FRONT BUMPER MOUNTING

main52147-47020iZVW41201109-201811

52148GBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-47020iZVW41201109-201811

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030iZVW41201109-201811

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030iZVW41201109-201411

main53188-47020iZVW41201411-201811

53201SUPPORT SUB-ASSY, RADIATOR

main53201-47050iZVW41201109-201411

main53201-47090iZVW41201411-201811

53202DCUSHION, RADIATOR SUPPORT

main90541-15037iZVW41201109-201811

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-12060iZVW41201109-201811

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12560iZVW41201308-201811

main53208-72010iZVW41201109-201308

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-12140iZVW41201109-201811

53213ASUPPORT, RADIATOR, UPPER RH

main53213-47040iZVW41201109-201811

53214ASUPPORT, RADIATOR, UPPER LH

main53214-47040iZVW41201109-201811

53218ASUPPORT, RADIATOR, LOWER

main53218-12901iZVW41201109-201811

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-47020iZVW41201109-201811

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53239-47020iZVW41201109-201811

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-47030iZVW41201109-201811

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-47030iZVW41201109-201811

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47040iZVW41201109-201404

sub53289-47041

main53289-47041iZVW41201405-201811

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07211iZVW41201109-201209

main90467-07217iZVW41201210-201811

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-47030iZVW41201109-201411

main53293-47050iZVW41201411-201811

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-47020iZVW41201109-201411

main53294-47040iZVW41201411-201811

53301GCUSHION, HOOD BUMPER

main90541-15039iZVW41201109-201811

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-47060iZVW41201109-201811

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-47060iZVW41201109-201811

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-47010iZVW41201109-201811

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-47010iZVW41201109-201811

53710JAPRON ASSY, FRONT FENDER, RH

main53710-47040iZVW41201109-201811

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160iZVW41201109-201811

53720BAPRON ASSY, FRONT FENDER, LH

main53720-47050iZVW41201109-201811

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040iZVW41201109-201811

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040iZVW41201109-201811

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170iZVW41201109-201811

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150iZVW41201109-201811

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070iZVW41201109-201811

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070iZVW41201109-201811

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-47020iZVW41201109-201811

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-47060iZVW41201109-201811

53813CEXTENSION, FRONT FENDER, RH

main53813-47020iZVW41201109-201811

53814CEXTENSION, FRONT FENDER, LH

main53814-47020iZVW41201109-201811

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-47030iZVW41201312-201811

main53835-47020iZVW41201109-201312

sub53803-47030

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-47030iZVW41201312-201811

main53836-47020iZVW41201109-201312

sub53804-47030

55101PANEL SUB-ASSY, DASH

main55101-12B60iZVW41201109-201811

55137ABRACE, DASH TO FRAME, RH

main55137-47030iZVW41201109-201811

55138ABRACE, DASH TO FRAME, LH

main55138-47050iZVW41201109-201311

sub55138-47060

main55138-47060iZVW41201312-201602

main55138-76020iZVW41201602-201811

55210INSULATOR ASSY, DASH PANEL

main55210-47120iZVW41201109-201811

55210ACLIP

main90467-11122iZVW41201109-201811

NO.1:REFER ILLUST.

main90467-11127iZVW41201109-201811

NO.2:REFER ILLUST.

55210CCLIP

main90467-13079iZVW41201109-201811

55223AINSULATOR, DASH PANEL, OUTER

main55223-47050iZVW41201109-201811

5701

7403

9010508457

main90105-08457

9010906380

main90109-06380

9011906786

main90119-06786

9011906A06

main90119-06A06

9011908B13

main90119-08B13

9162140614

main91621-40614

9415180840

main94151-80840

9461310601

main94613-10601

61 parts on this diagram · 1 diagram in section
