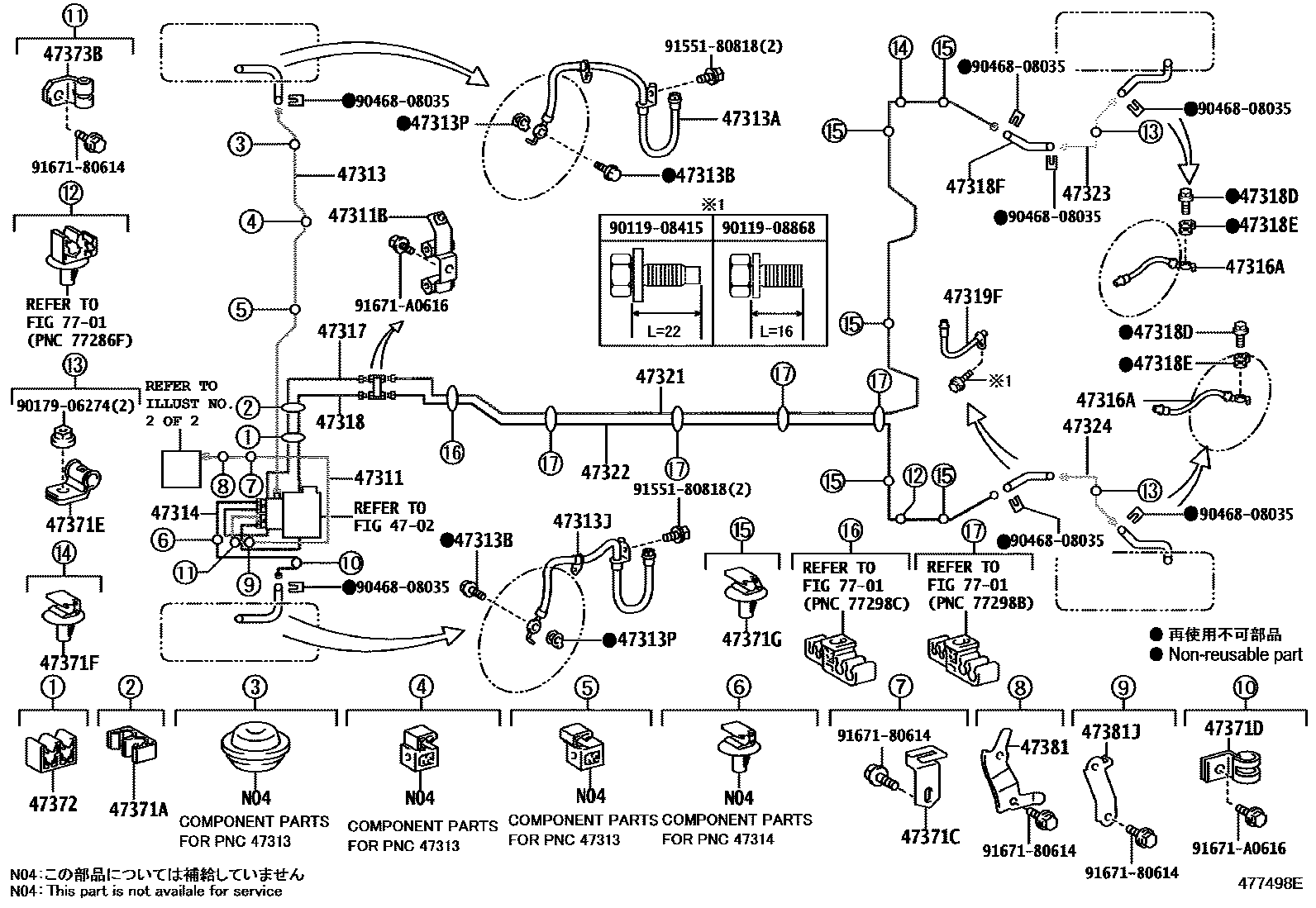

BRAKE TUBE & CLAMP

0001 1 0002 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-75020iZVW41201109-201603

sub47311-76020

main47311-76020iZVW41201604-201811

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZVW41201109-201811

47313TUBE, FRONT BRAKE, NO.3

main47313-75020iZVW41201109-201712

sub47313-75021

main47313-75021iZVW41201712-201811

main47313-76020iZVW41201604-201605

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G30iZVW41201109-201811

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW41201109-201811

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G31iZVW41201109-201811

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZVW41201109-201811

47314TUBE, FRONT BRAKE, NO.4

main47314-47070iZVW41201604-201811

main47314-75020iZVW41201109-201603

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02F87iZVW41201109-201811

47317TUBE, FRONT BRAKE, NO.7

main47317-75020iZVW41201109-201604

main47317-76020iZVW41201604-201811

47318TUBE, FRONT BRAKE, NO.8

main47318-75020iZVW41201109-201604

main47318-76020iZVW41201604-201811

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW41201109-201811

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZVW41201109-201811

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F85iZVW41201109-201811

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F86iZVW41201109-201811

47321TUBE, REAR BRAKE, NO.1

main47321-47050iZVW41201109-201411

sub47321-47060

main47321-47060iZVW41201411-201811

47322TUBE, REAR BRAKE, NO.2

main47322-47050iZVW41201109-201411

sub47322-47060

main47322-47060iZVW41201411-201811

47323TUBE, REAR BRAKE, NO.3

main47323-12230iZVW41201109-201603

sub47323-47050

main47323-47050iZVW41201604-201811

47324TUBE, REAR BRAKE, NO.4

main47324-12190iZVW41201109-201603

sub47324-47050

main47324-47050iZVW41201604-201811

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iZVW41201109-201811

47371CCLAMP, BRAKE TUBE, NO.7

main47371-47060iZVW41201109-201811

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10781iZVW41201109-201811

47371ECLAMP, BRAKE TUBE, NO.9

main90461-10837iZVW41201109-201811

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iZVW41201109-201811

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D46iZVW41201109-201512

main90949-01E45iZVW41201601-201811

47372CLAMP, BRAKE TUBE, NO.2

main90464-00904iZVW41201604-201811

main90949-01972iZVW41201109-201604

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10840iZVW41201109-201811

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZVW41201109-201811

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-75020iZVW41201109-201811

7701

9011908415

main90119-08415

9011908868

main90119-08868

9017906274

main90179-06274

9046808035

main90468-08035

9155180818

main91551-80818

9167180614

main91671-80614

91671A0616

main91671-A0616

38 parts on this diagram · 2 diagrams in section
