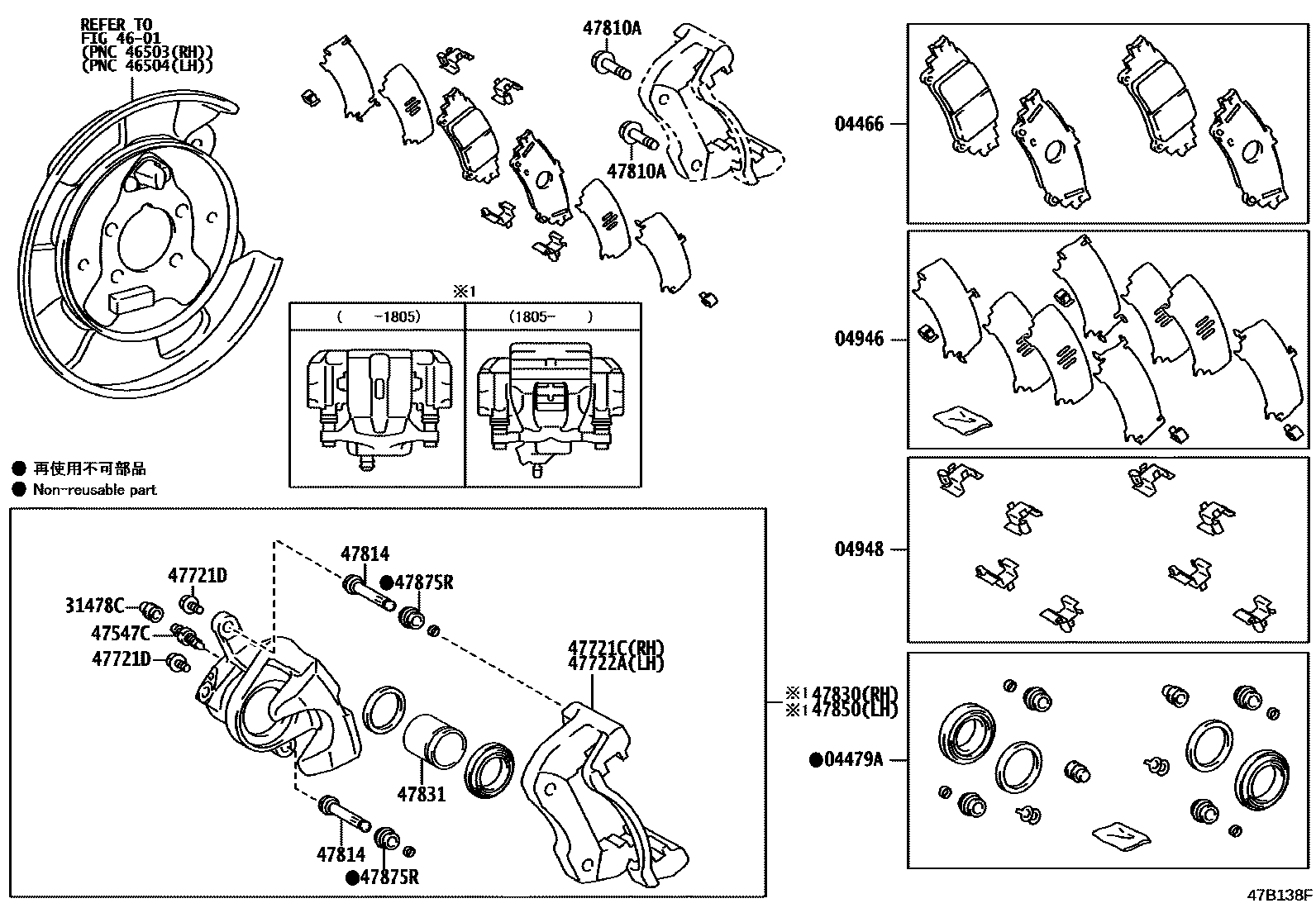

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47050iZVW41201109-201505

MARK AK PA561

sub04466-47051

main04466-47051iZVW41201505-201805

MARK AK PA561

main04466-47093iZVW41201805-201811

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-47080iZVW41201109-201411

main04479-47100iZVW41201411-201805

main04479-47130iZVW41201805-201811

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47080iZVW41201109-201203

main04946-47090iZVW41201204-201208

sub04946-47100

main04946-47100iZVW41201209-201805

main04946-47120iZVW41201805-201811

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iZVW41201110-201203

main04948-30240iZVW41201805-201811

main04948-47020iZVW41201204-201804

main04948-48050iZVW41201109-201110

sub04948-30230

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZVW41201805-201811

main31478-50020iZVW41201109-201805

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZVW41201109-201811

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47080iZVW41201109-201805

main47821-47160iZVW41201805-201811

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iZVW41201109-201811

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47080iZVW41201109-201805

main47821-47160iZVW41201805-201811

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10576iZVW41201109-201811

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-47051iZVW41201109-201805

main47814-47160iZVW41201805-201811

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-47080iZVW41201109-201805

main47830-47160iZVW41201805-201811

47831PISTON, REAR DISC BRAKE

main47831-30310iZVW41201109-201811

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-47080iZVW41201109-201805

main47850-47160iZVW41201805-201811

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iZVW41201805-201811

main47875-33240iZVW41201109-201805

16 parts on this diagram · 1 diagram in section
