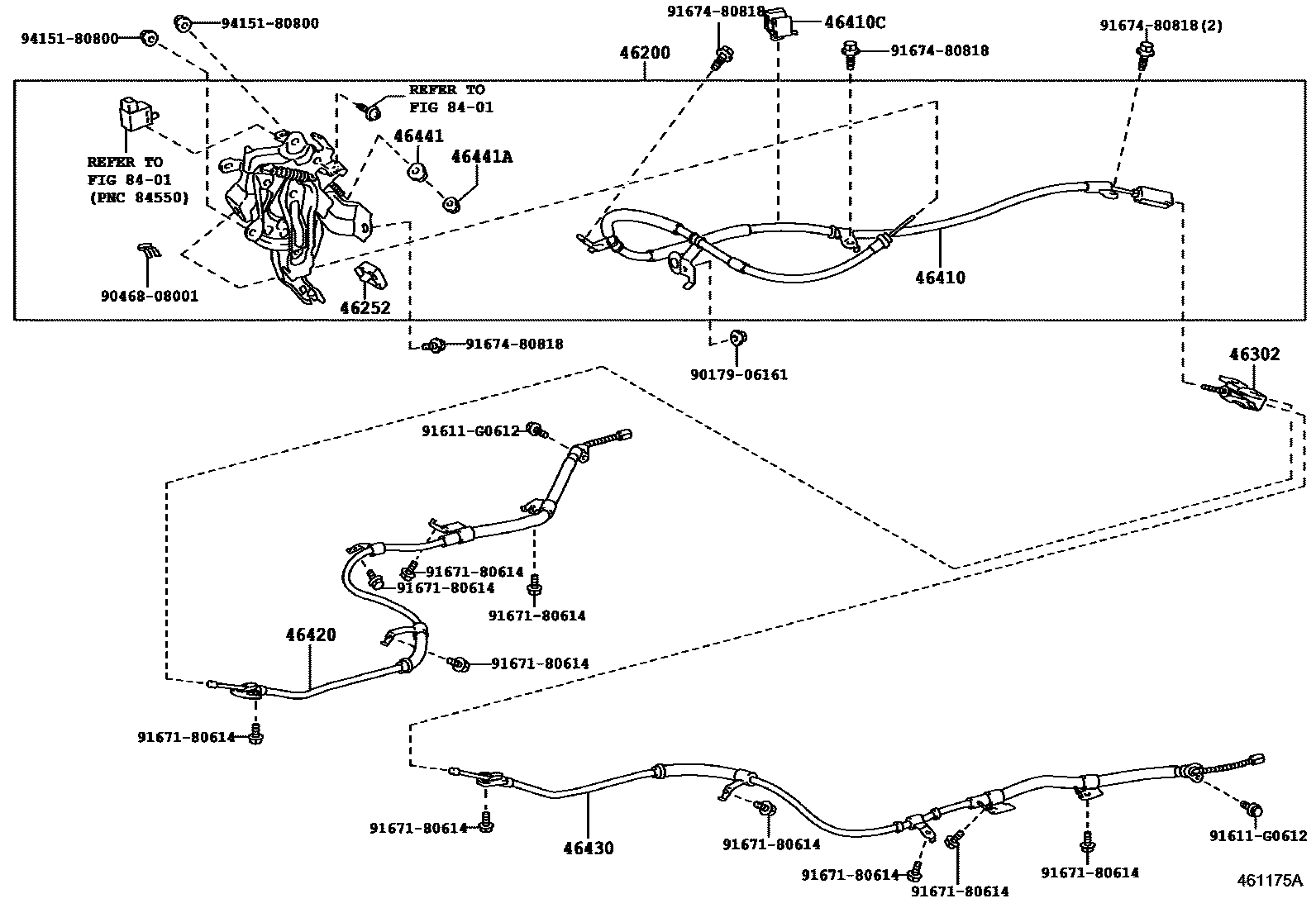

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-47120iZVW41201109-201811

46252PAD, PARKING PEDAL

main46252-47010iZVW41201109-201811

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-47030iZVW41201109-201811

sub46302-75010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47120iZVW41201109-201811

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-47050iZVW41201109-201811

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47090iZVW41201109-201811

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47090iZVW41201109-201811

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZVW41201109-201811

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iZVW41201109-201811

8401

9017906161

main90179-06161

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167480818

main91674-80818

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
