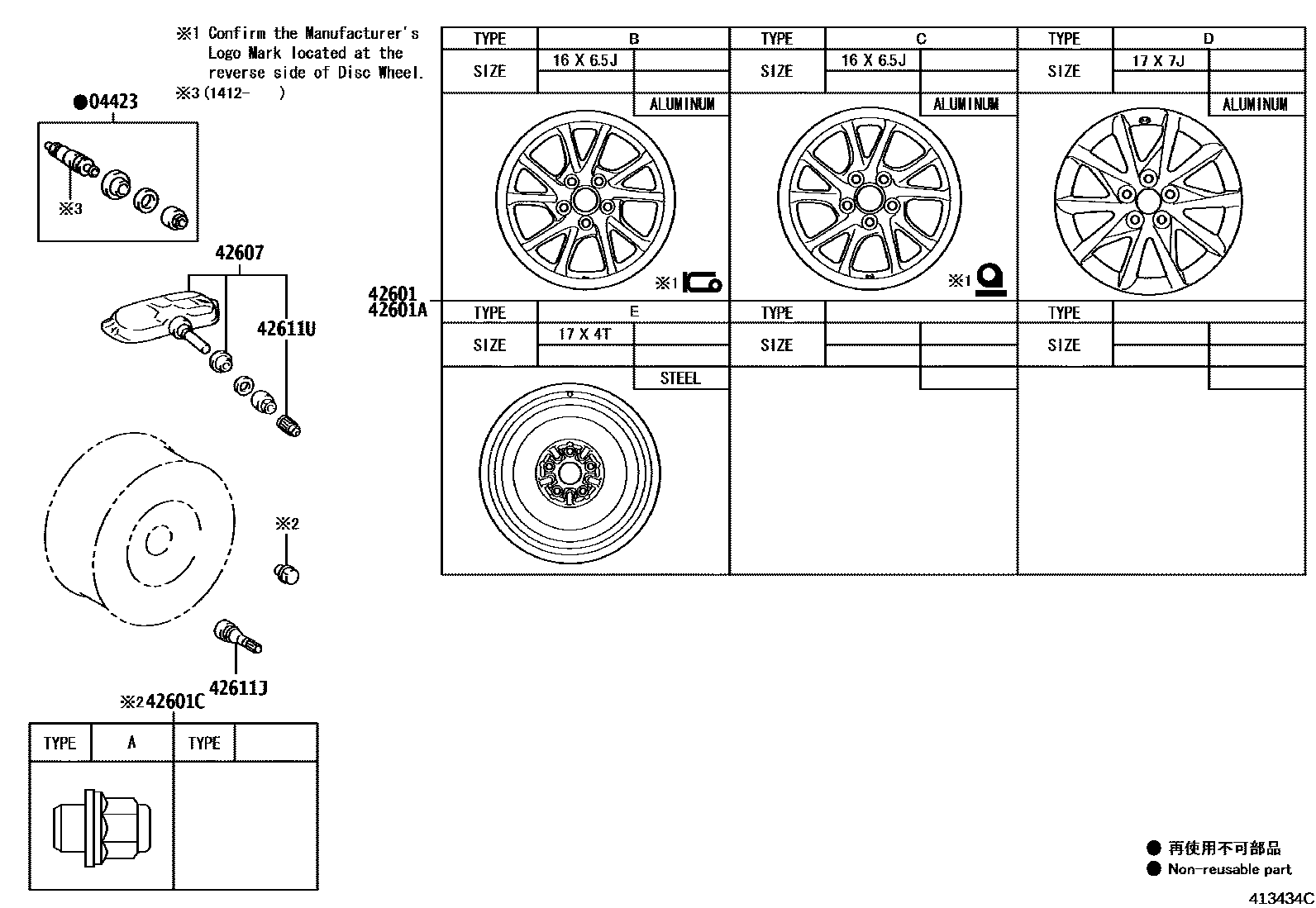

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZVW41201109-201412

sub04423-33060

main04423-33060iZVW41201412-201811

42601WHEEL, DISC

main42611-47230iZVW41201109-201811

16X6.5J, #,TYPE B:REFER ILLUST.

main42611-47240iZVW41201109-201811

16X6.5J, #,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-75100iZVW41201109-201811

17X4T,TYPE E:REFER ILLUST.

sub42611-75101

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW41201109-201811

TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iZVW41201109-201605

sub42607-33012

main42607-52020iZVW41201605-201811

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZVW41201109-201811

42611UCAP, TIRE VALVE

main90942-05039iZVW41201109-201811

7 parts on this diagram · 2 diagrams in section
