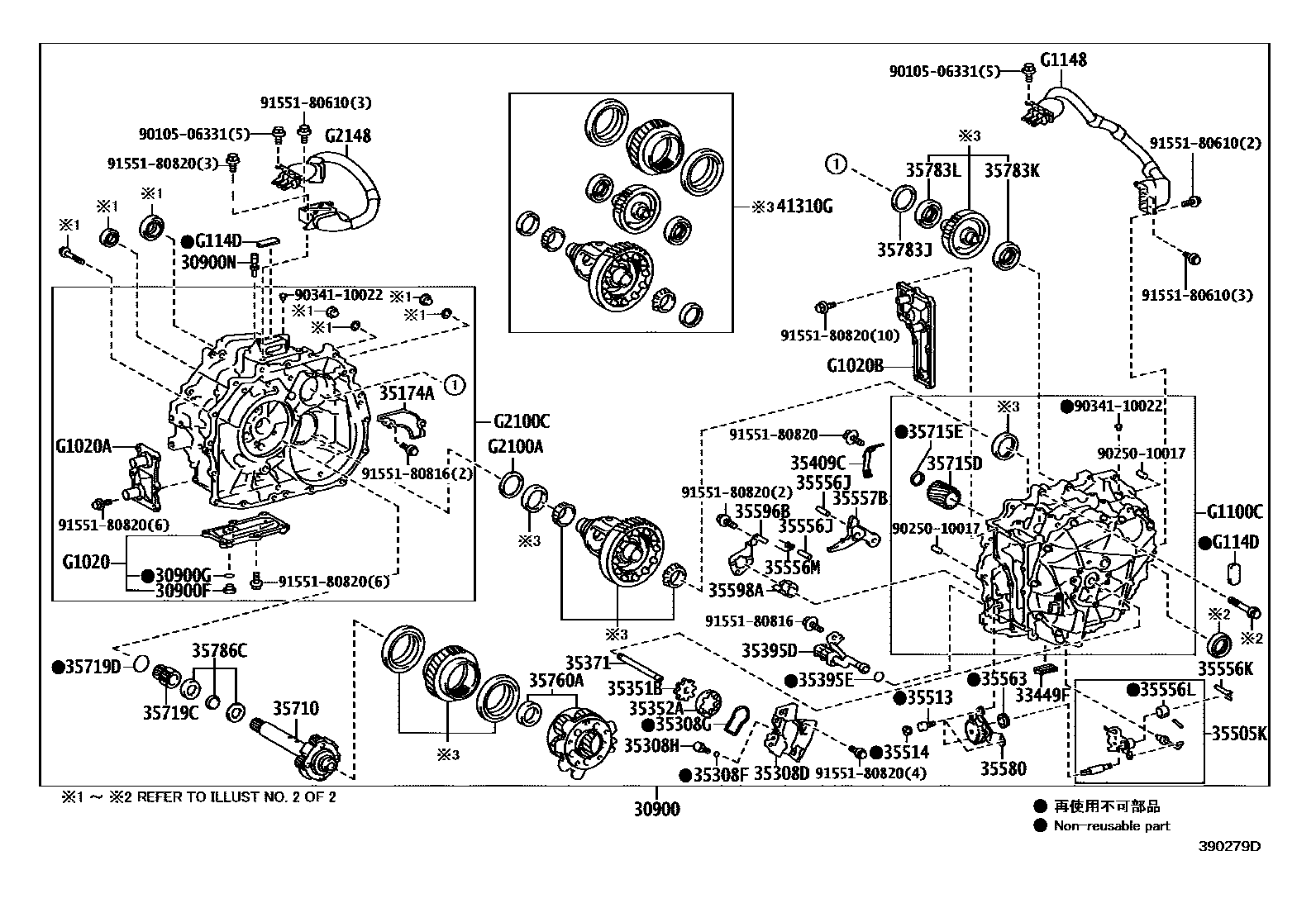

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
33449FMAGNET, TRANSMISSION NO.1
35174ASEPARATOR, TRANSAXLE HOUSING OIL
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35352AROTOR, TRANSMISSION OIL PUMP DRIVEN
35371SHAFT, OIL PUMP DRIVE
35395DSTRAINER, TRANSMISSION OIL
35395ERING, O(FOR TRANSAXLE OIL STRAINER)
35409CSPRING SUB-ASSY, MANUAL DETENT
35505KLEVER SUB-ASSY, PARKING LOCK, NO.1
35513BOLT, SHIFT CONTROL ACTUATOR
35514CAP, SHIFT CONTROL ACTUATOR BOLT
35556JSHAFT, PARKING LOCK PAWL
35556KSPRING, RETAINER
35556LSPACER
35556MSPRING, TORSION
35557BPAWL, PARKING LOCK
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
35596BPLATE, PAWL STOPPER
35598ASLEEVE, PARKING LOCK
35710SHAFT ASSY, INPUT
35715DGEAR, REAR PLANETARY SUN
35715ERING, SHAFT SNAP(FOR REAR PLANETARY SUN GEAR)
35719CGEAR, PLANETARY SUN
35719DRING, SNAP(FOR PLANETARY SUN GEAR)
T=3.88
T=3.91
T=3.94
T=3.97
T=4.00
T=4.03
T=4.06
T=4.09
T=4.12
T=4.15
T=4.18
T=4.21
T=4.24
T=4.27
T=4.30
T=4.33
T=4.36
T=4.39
T=4.42
T=4.45
T=4.48
T=4.51
T=4.54
T=4.57
T=4.60
T=4.63
T=4.66
T=4.69
T=4.72
35783JSHIM(FOR COUNTER DRIVEN GEAR)
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
35783KBEARING, RADIAL BALL, NO.1(FOR COUNTER DRIVEN GEAR)
35783LBEARING, RADIAL BALL, NO.2(FOR COUNTER DRIVEN GEAR)
35786CRACE, THRUST BEARING, NO.1
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G1020BCOVER ASSY, MOTOR WATER JACKET, NO.3
G114DCAP, MOTOR CABLE TERMINAL
G2100ASHIM(FOR DIFFERENTIAL CASE RH)
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=1.725
T=1.775
T=1.825
T=1.875
T=1.925
T=1.975
T=2.025
T=2.075
T=2.125
T=2.175
T=2.225
T=2.275
T=2.325
T=2.375
T=2.425
9010506331
main90105-06331
9025010017
main90250-10017
9034110022
main90341-10022
9155180610
main91551-80610
9155180816
main91551-80816
9155180820
main91551-80820
54 parts on this diagram · 4 diagrams in section
