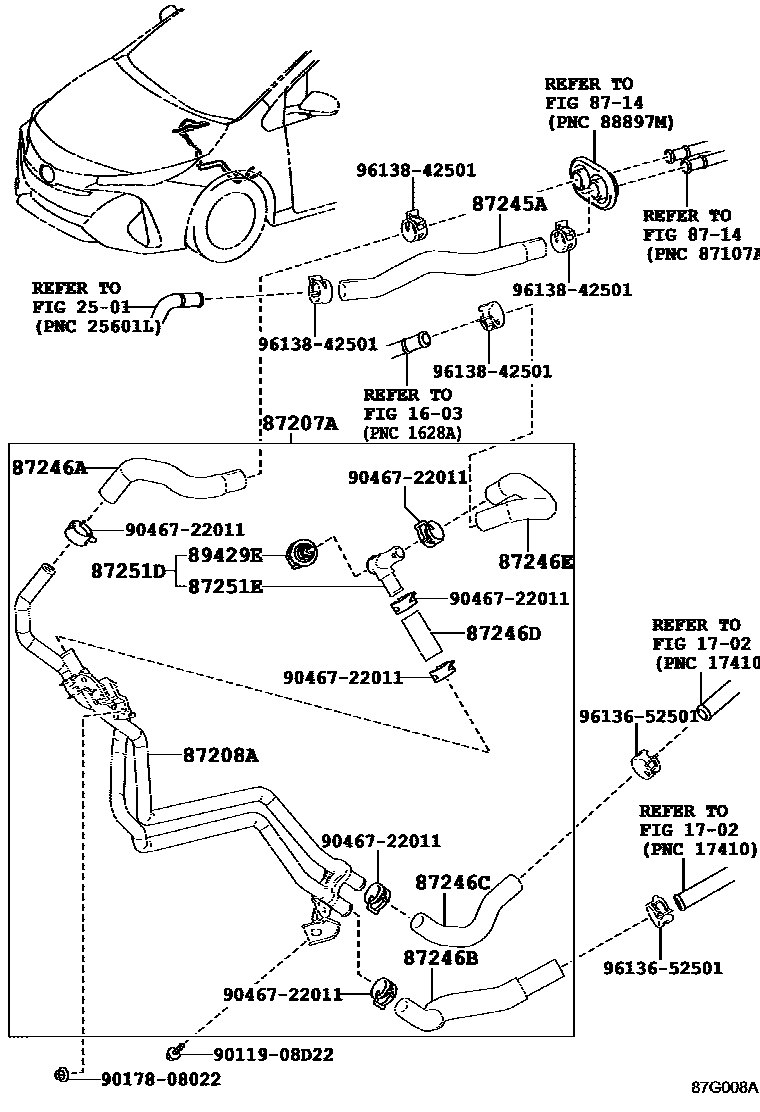

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

1702

2501

8714

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-47090iZVW52¥17,900201609-202002

main87207-47110iZVW52¥17,000202002

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-47060iZVW52201609-202002

main87208-47080iZVW52202002

87245AHOSE, HEATER WATER, INLET A

main87245-47330iZVW52¥1,340201609-201904

87246AHOSE, HEATER WATER, OUTLET A

main87245-47430iZVW52¥990201609-201904

87246BHOSE, HEATER WATER, OUTLET B

main87245-47420iZVW52¥1,260201609-202002

main87245-47440iZVW52¥1,350202002

87246CHOSE, HEATER WATER, OUTLET C

main87245-47410iZVW52¥750201609-202002

main87245-47450iZVW52¥1,130202002

87246DHOSE, HEATER WATER, OUTLET D

main87245-47400iZVW52¥110201609-201904

87246EHOSE, HEATER WATER, OUTLET E

main87245-47390iZVW52¥1,040201609-201904

87251DJOINT, WATER, NO.1

main87252-47030iZVW52¥0201609-201904

87251EJOINT, WATER, NO.2

main87251-47030iZVW52201609-201904

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZVW52¥2,410201609-201904

9011908D22

main90119-08D22¥80

9017808022

main90178-08022¥100

9046722011

main90467-22011¥240

9613652501

main96136-52501¥200

9613842501

main96138-42501¥180

20 parts on this diagram · 3 diagrams in section
