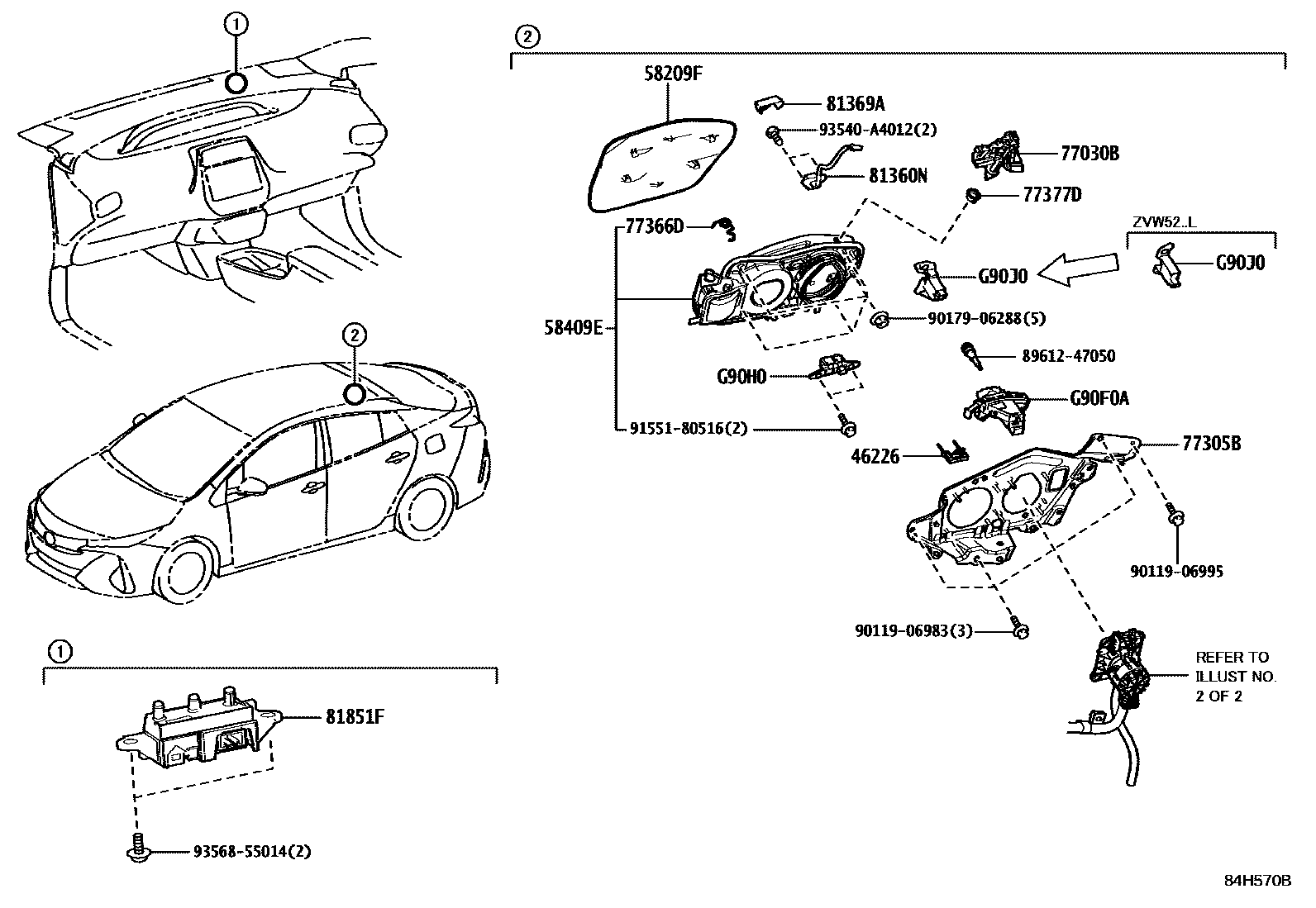

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1

46226PIN, CONNECTOR

main46226-47010iZVW52..G201609-201904

58209FLID SUB-ASSY, BATTERY SERVICE OPENING

main58209-47900iZVW52201609-201904

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-47030iZVW52..E201609-201904

main58409-47031iZVW52..E201905

main58409-47040iZVW52..G201609-201904

main58409-47041iZVW52..G201905

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-47060iZVW52..G201609-201904

77305BLID SUB-ASSY, EV CHARGER

main77305-47010iZVW52201609-201904

77366DSPRING, EV CHARGER LID HINGE

main77366-47010iZVW52201609-201904

77377DRETAINER, CHARGING PORT OPENING LID LOCK

main77377-78010iZVW52..G201609-201904

81360NLAMP ASSY, SPOT

main81360-47020iZVW52201609-201904

81369ACOVER, SPOT LAMP

main81369-47010iZVW52201609-201904

81851FLAMP ASSY, INDICATOR

main81850-47040iZVW52201609-201904

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F047090iZVW52..G201609-201904

G90H0INDICATOR ASSY, EV CHARGER LID

mainG90H047010iZVW52..G201609-201904

mainG90H047011iZVW52..G201905

mainG90H047020iZVW52..E201609-201904

mainG90H047021iZVW52..E201905

G90J0SWITCH ASSY, EV CHARGER LID

mainG90J047011iZVW52201609-201904

8961247050BRACKET, PUSH SWITCH

main89612-47050

9011906983

main90119-06983

9011906995

main90119-06995

9017906288

main90179-06288

9155180516

main91551-80516

93540A4012

main93540-A4012

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
