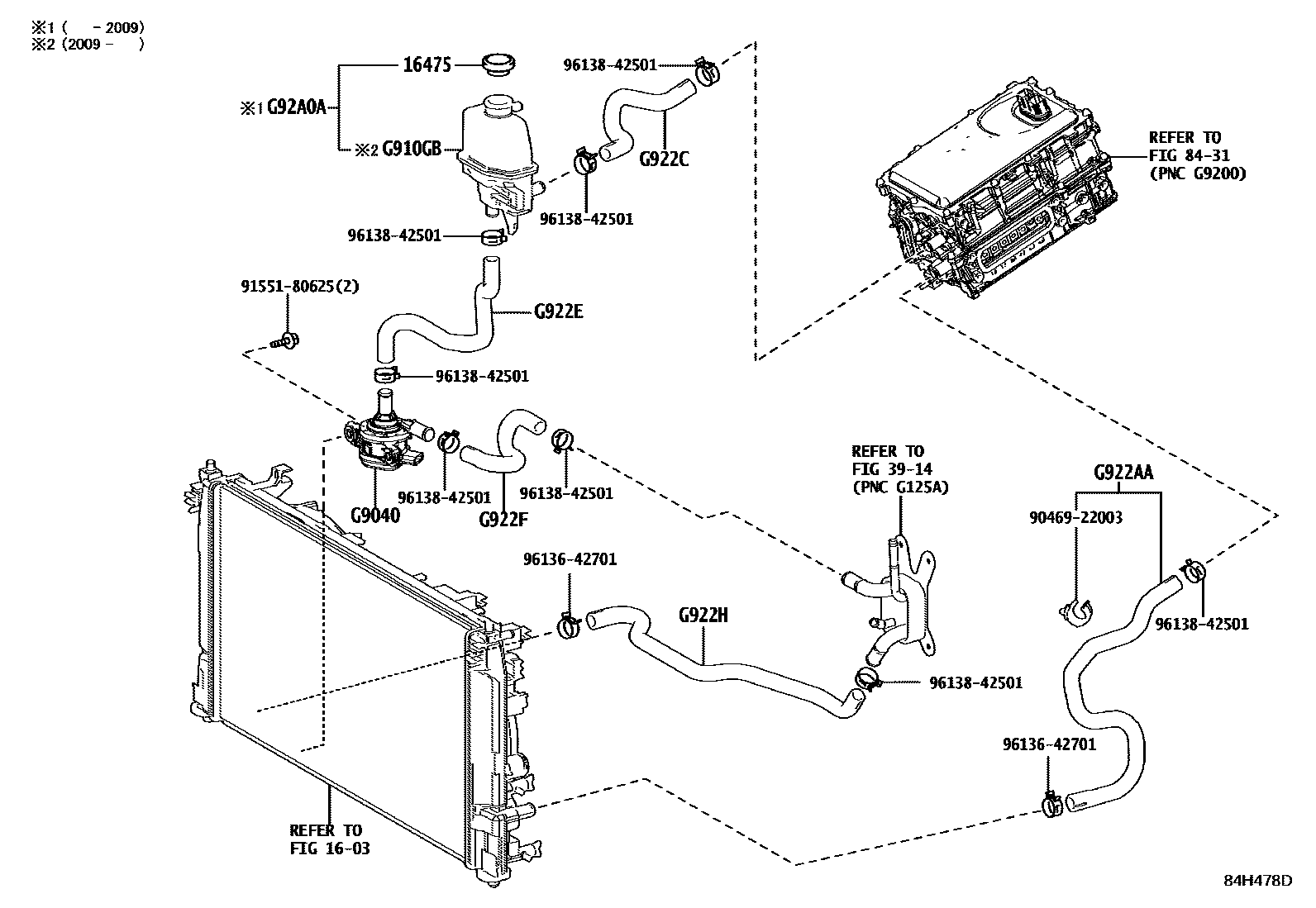

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZVW52201609-201904

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZVW52201609-201904

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G12010iZVW52202009

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A47010iZVW52201609-201904

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C47010iZVW52201609-201904

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E47010iZVW52201609-201904

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZVW52201609-201904

G922HHOSE, HYBRID RADIATOR INLET

mainG922H47010iZVW52201609-201904

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H047011iZVW52201609-202008

9046922003

main90469-22003

9155180625

main91551-80625

9613642701

main96136-42701

9613842501

main96138-42501

16 parts on this diagram · 1 diagram in section
