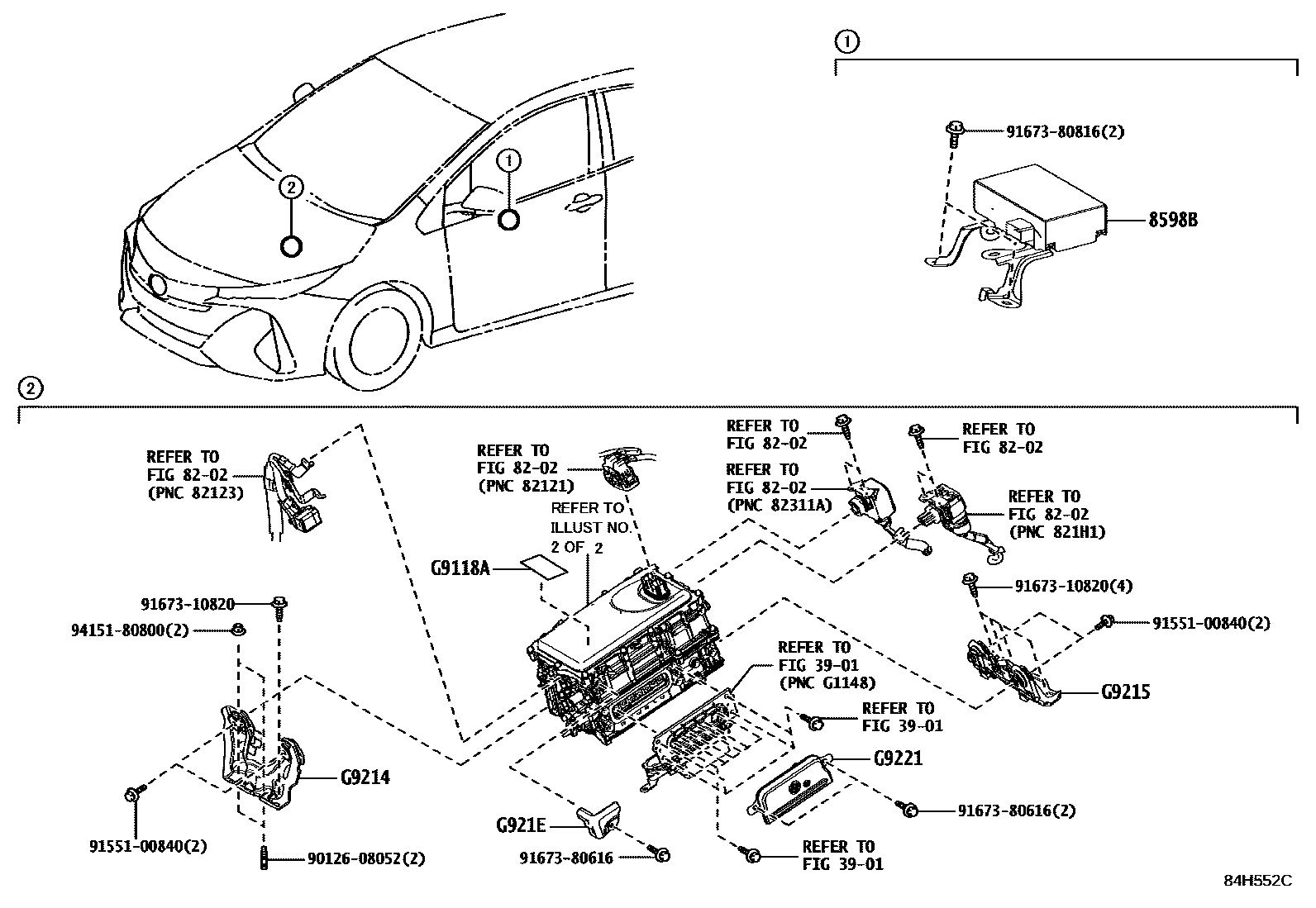

HEV INVERTER

0001 1 0002 1INVERTER ASSY

3901

8202

8598BBATTERY, INVERTER

main8598B-47010iZVW52¥18,400201609-202007

main8598B-47020iZVW52202007-202103

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iZVW52201905

G9214BRACKET, INVERTER, NO.1

mainG921447070iZVW52201609-201904

G9215BRACKET, INVERTER, NO.2

mainG921547050iZVW52201609-201904

G921EPROTECTOR, INVERTER

mainG921E47010iZVW52201609-201904

G9221COVER, INVERTER

mainG902247050iZVW52201609-201904

9012608052

main90126-08052¥80

9155100840

main91551-00840¥80

9167310820

main91673-10820¥80

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9415180800

main94151-80800¥80

14 parts on this diagram · 2 diagrams in section
