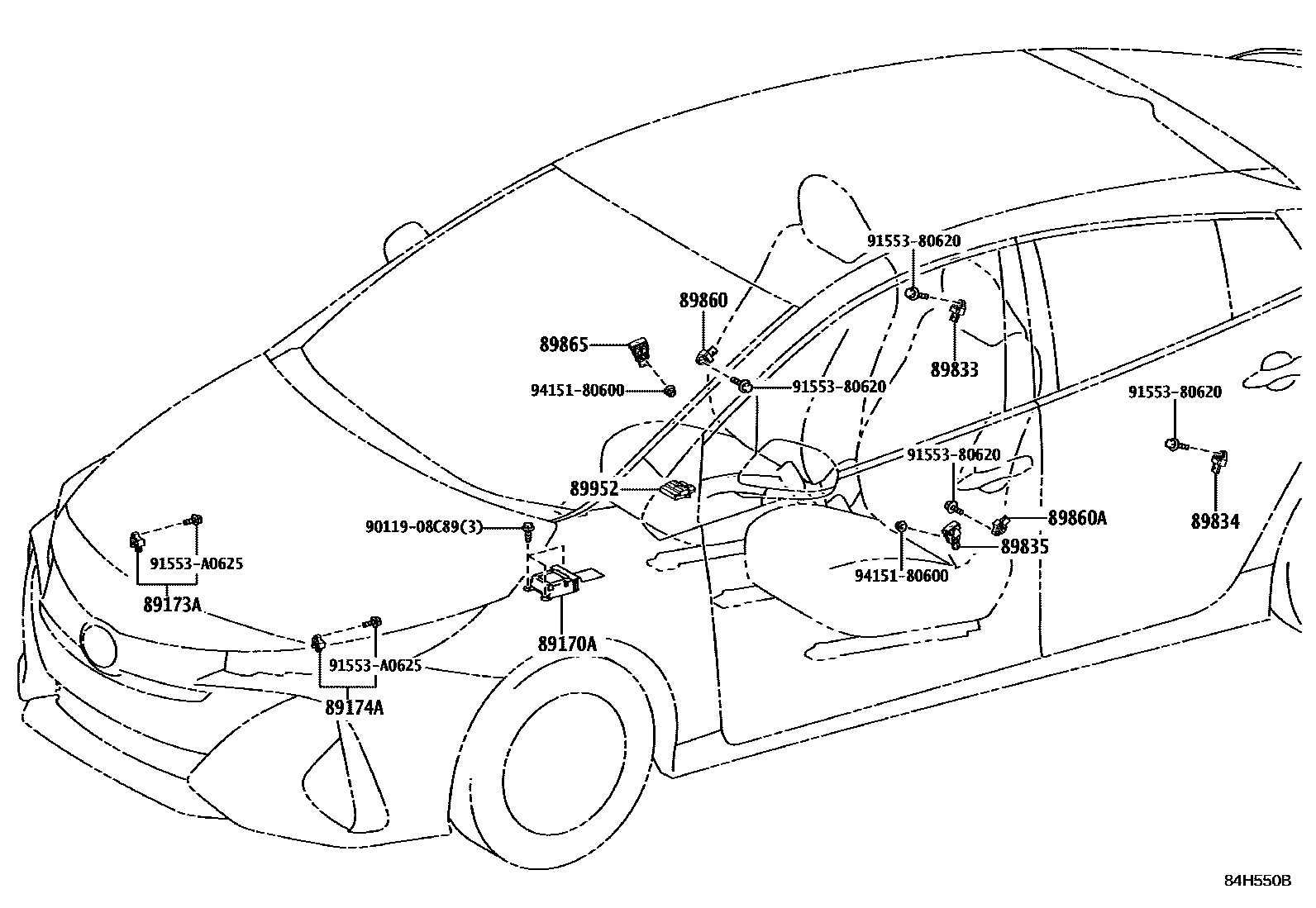

AIR BAG

0001 1 0002 1

89170ACOMPUTER ASSY, AIRBAG

main89170-47680iZVW52201609-201712

sub89170-47681

main89170-47681iZVW52201801-201812

main89170-47810iZVW52201905-202007

main89170-47860iZVW52201812-201904

main89170-47B10iZVW52202007

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iZVW52201609-201904

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iZVW52201609-201904

89833SENSOR, AIRBAG, REAR RH

main89831-28040iZVW52201609-201904

89834SENSOR, AIRBAG, REAR LH

main89831-28040iZVW52201609-201904

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-47010iZVW52201609-201904

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28030iZVW52201609-201904

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28030iZVW52201609-201904

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-47010iZVW52201609-201904

89952COMPUTER, OCCUPANT DETECTION

main89952-12030iZVW52201807-201904

main89952-47010iZVW52201609-201806

sub89952-12030

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
