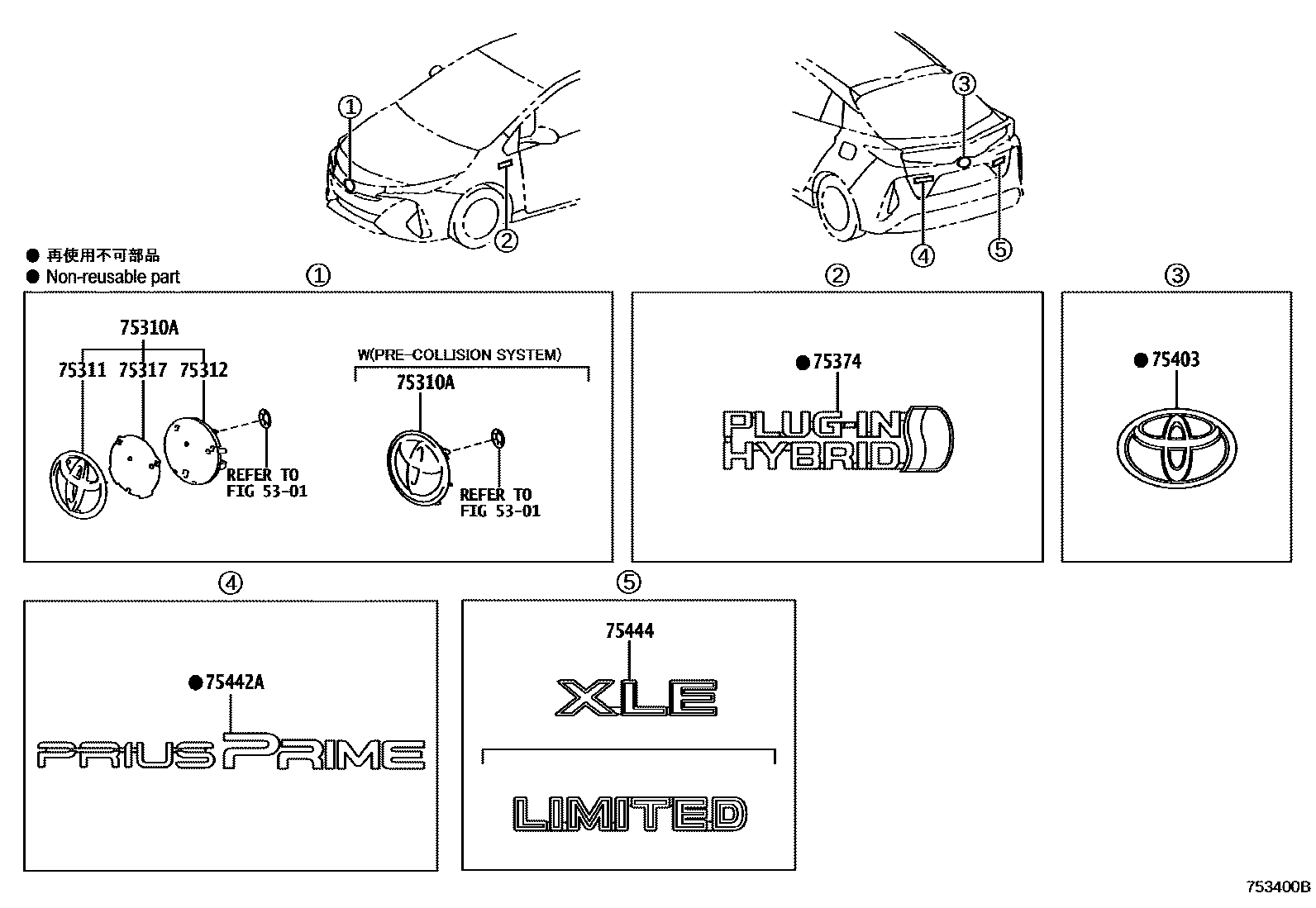

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-47030iZVW52¥17,500201609-202103

sub53141-47031¥17,500

main53141-47031iZVW52¥17,500202104

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02174¥2,780

75312BASE, RADIATOR GRILLE EMBLEM

main75311-47020¥1,390

75317PLATE, RADIATOR GRILLE ORNAMENT

main75317-47010¥480

75374EMBLEM, SIDE PANEL

main75374-47130iZVW52¥2,300201609-201904

RH

main75374-47190iZVW52¥2,300201609-201904

LH

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-12040iZVW52¥2,860201609-201904

75442APLATE, BACK DOOR NAME, NO.2

main75442-47180iZVW52201609-201904

PRIUS PRIME

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-47100iZVW52..G201905

XLE

9 parts on this diagram · 1 diagram in section
