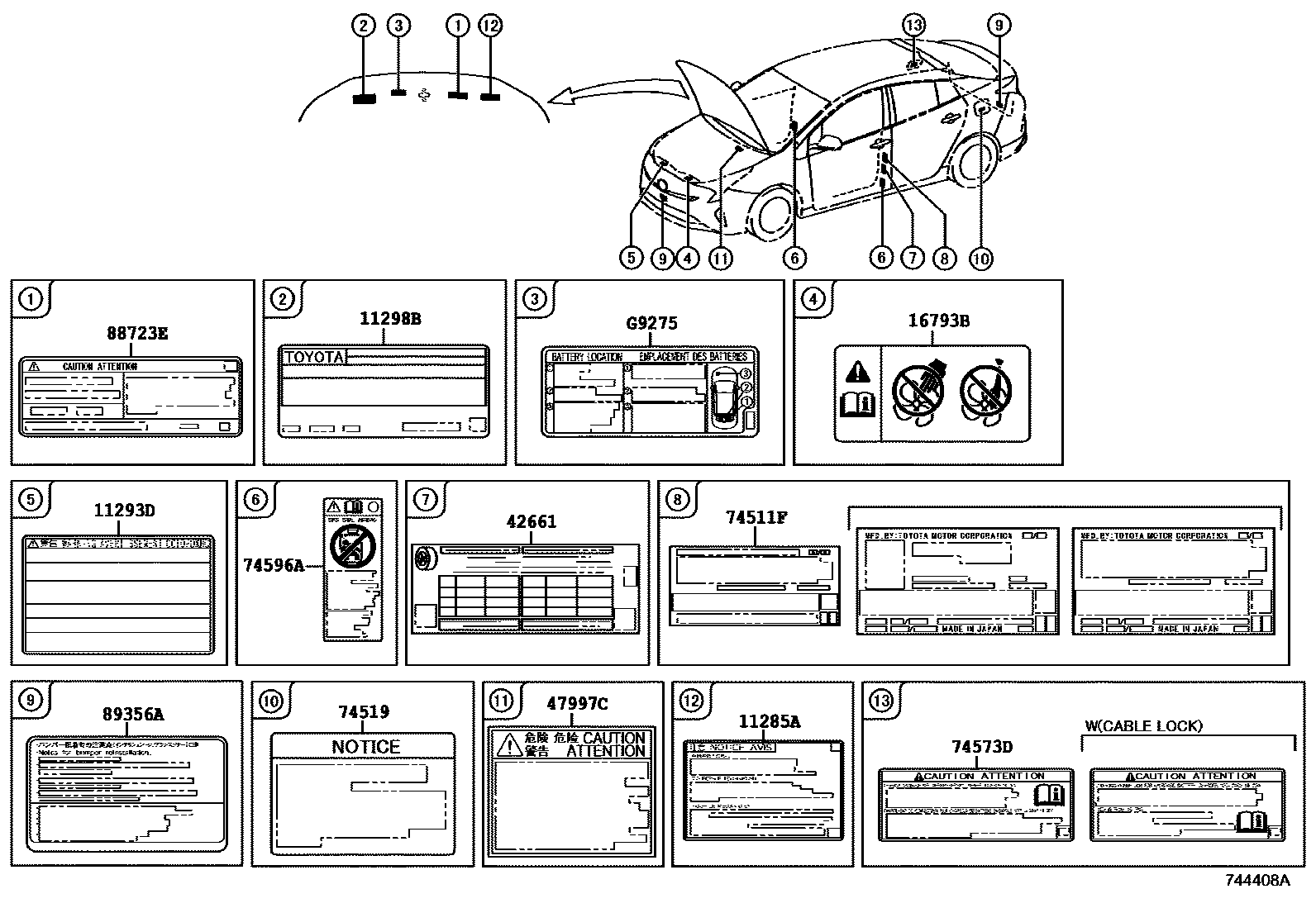

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-33030i2ZRFXE..ZVW52201609-202007

11293DLABEL, ENGINE CAUTION

main11293-36070i2ZRFXE..ZVW52201609-201904

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-37610i2ZRFXE..ZVW52201609-201801

main11298-37640i2ZRFXE..ZVW52202007-202106

main11298-37710i2ZRFXE..ZVW52201801-201812

main11298-37830i2ZRFXE..ZVW52202106

main11298-37840i2ZRFXE..ZVW52201812-201904

main11298-37880i2ZRFXE..ZVW52201905-202007

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i2ZRFXE..ZVW52201609-201904

42661LABEL, TIRE PRESSURE INFORMATION

main42661-47700iZVW52201609-201904

main42661-47A30iZVW52201905

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW52201609-201904

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74514-33010iZVW52201609-201904

*111

74519PLATE, FUEL CAUTION

main74559-47030iZVW52201707-201904

main74559-48010iZVW52201609-201706

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-47070iZVW52..G201609-201904

main74573-47090iZVW52..E201609-201904

74596ALABEL, SIDE AIRBAG CAUTION

main74596-78010iZVW52201609-201904

88723ELABEL, COOLER SERVICE CAUTION

main88723-47190iZVW52201609-202007

main88723-47240iZVW52202007

89356ALABEL, CLEARANCE WARNING INFORMATION

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547180iZVW52201609-201904

13 parts on this diagram · 2 diagrams in section
