SEAT BELT & CHILD RESTRAINT SEAT

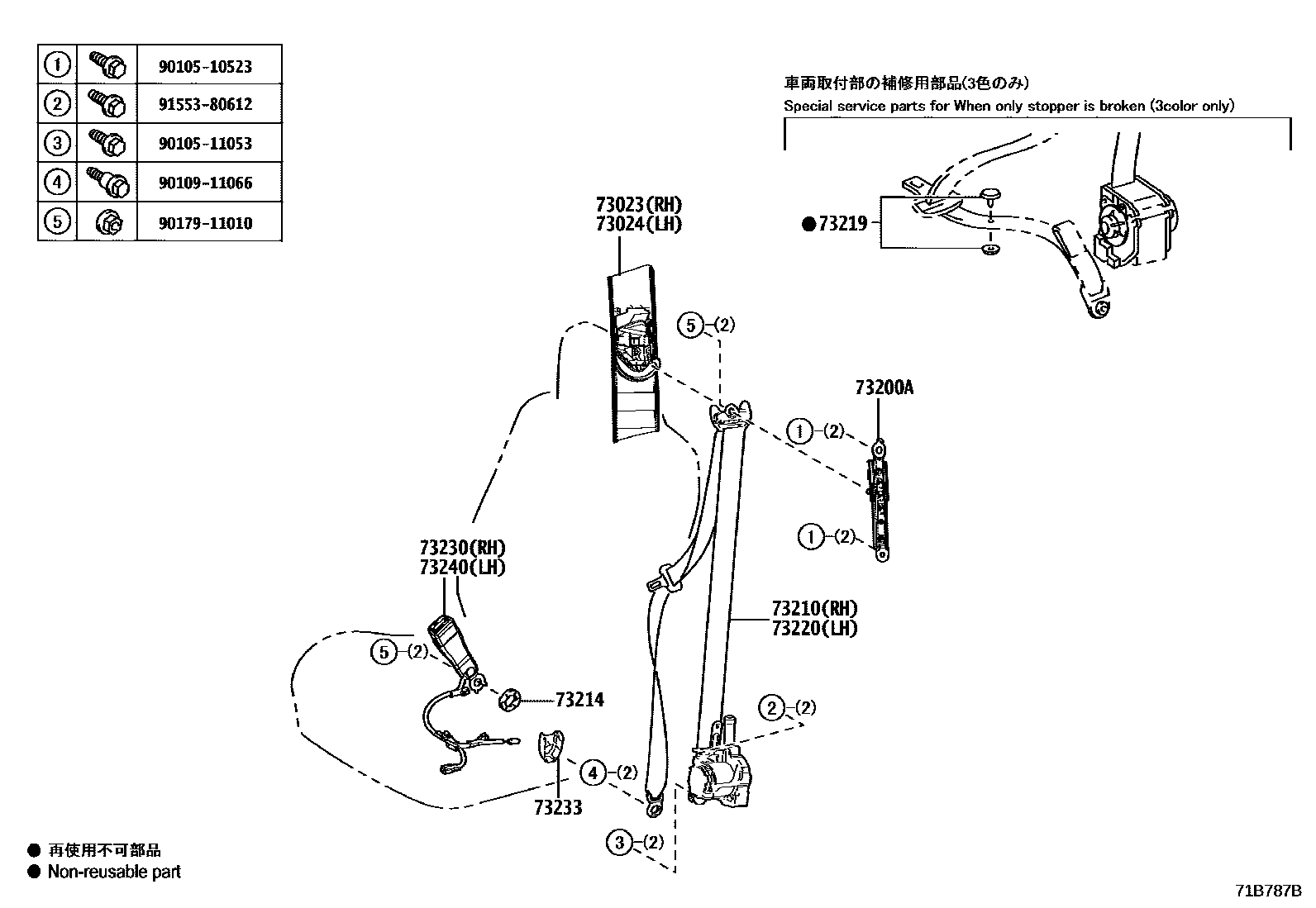

0001 1FRONT SEAT BELT 0002 1FRONT SEAT BELT(KOREA SPEC) 0003 1REAR SEAT BELT 0004 1REAR SEAT BELT 0005 1REAR SEAT BELT(KOREA SPEC)

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-C1iZVW52201609-201904

BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-C1iZVW52201609-201904

BLACK,TRIM1#,2#

sub73024-58010¥1,710

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iZVW52¥3,200201609-202007

main73200-42020iZVW52¥3,340202007

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47270-C2iZVW52201609-201610

BLACK,TRIM1#,2#

sub73210-47271

main73210-47271-C2iZVW52201611-201708

BLACK,TRIM1#,2#

sub73210-47271

sub73210-47272¥26,200

main73210-47271-C5iZVW52201708-201804

BLACK,TRIM1#,2#

sub73210-47271

sub73210-47272¥26,200

main73210-47272-C5iZVW52201805-202207

BLACK,TRIM1#,2#

sub73210-47273

main73210-47273-C5iZVW52202208

BLACK/BLACK,TRIM1#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iZVW52¥170201609-201904

73219STOPPER, TONGUE PLATE

main73219-02010iZVW52¥80201609-201904

BLACK

main73219-02020iZVW52¥80201609-201904

GRAY

main73219-02030iZVW52¥80201609-201904

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47220-C2iZVW52201609-201610

BLACK,TRIM1#,2#

sub73220-47221¥31,500

main73220-47221-C2iZVW52201611-201708

BLACK,TRIM1#,2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iZVW52201708-202207

BLACK,TRIM1#,2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47222-C7iZVW52202208

BLACK/BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47480-C0iZVW52201609-201712

BLACK,TRIM1#,2#

sub73230-47560

main73230-47560-C1iZVW52201801-201904

BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iZVW52201609-201904

BLACK,TRIM1#,2#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12C50-C0iZVW52..E201801-201904

BLACK,TRIM1#,2#

main73230-12C60-C0iZVW52..E201801-201904

BLACK,TRIM1#,2#

main73230-12C60-C0iZVW52..G201801-201904

KOREA SPEC&WITH(HEAD UP DISPLAY),BLACK,TRIM1#,2#

main73230-47430-C0iZVW52..E201609-201712

BLACK,TRIM1#,2#

sub73230-12C50

main73230-47440-C0iZVW52..G201609-201712

KOREA SPEC&WITH(HEAD UP DISPLAY),BLACK,TRIM1#,2#

sub73230-12C60

main73230-47440-C0iZVW52..E201609-201712

BLACK,TRIM1#,2#

sub73230-12C60

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911066

main90109-11066¥190

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

15 parts on this diagram · 5 diagrams in section
