FRONT SEAT & SEAT TRACK

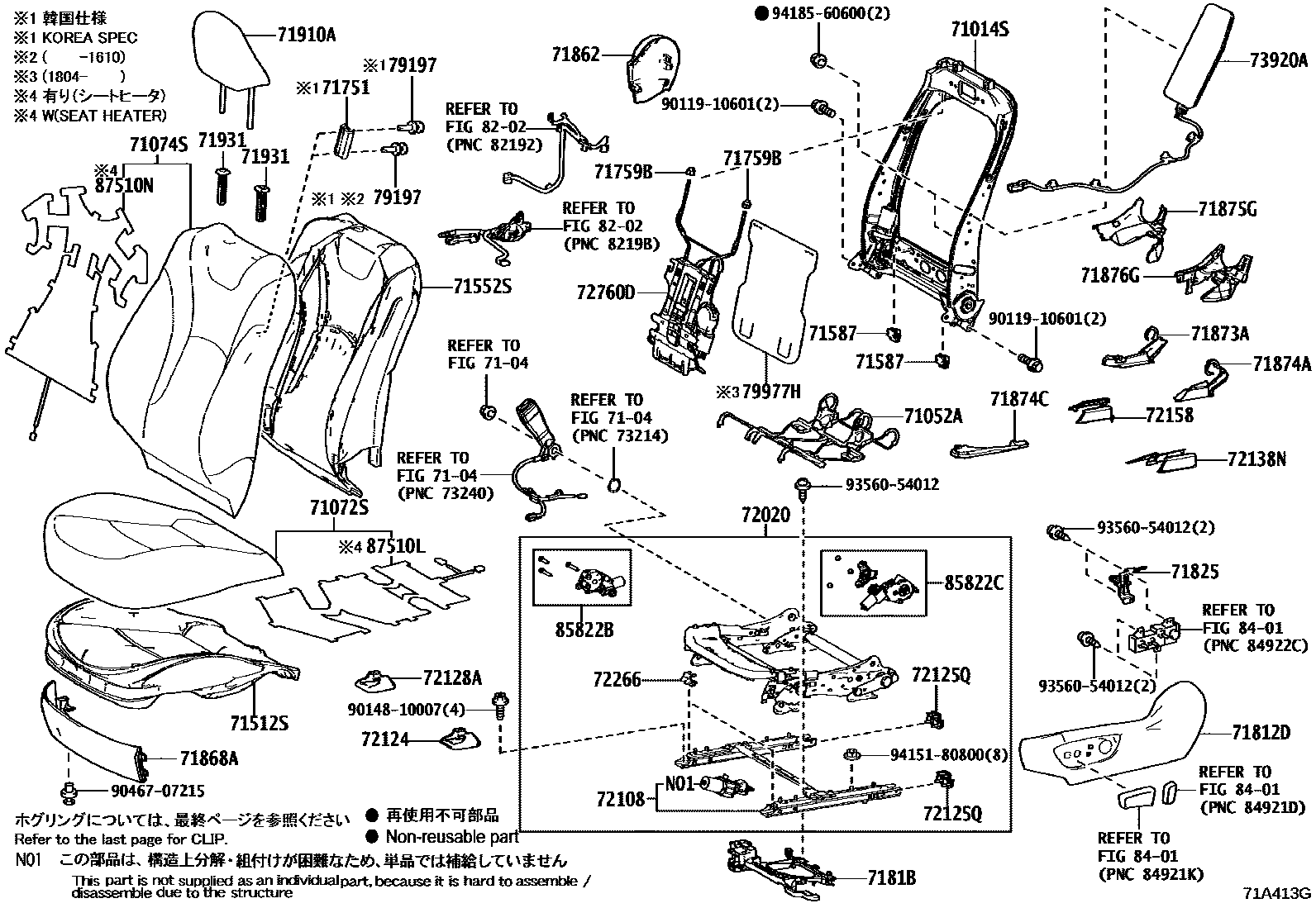

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-47150i¥17,100201609-202007
main71014-47160i201609-202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main71014-47180i202007
main71014-47200i202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i¥4,110201609-201904
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-47850-B6i201609-201904
COOL GRAY,TRIM1#
main71072-47850-B6i201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#
main71072-47850-C6i201609-201904
BLACK,TRIM2#
main71072-47850-C6i201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM2#
main71072-47A80-B2i201609-201904
COOL GRAY,TRIM1#
main71072-47A80-C2i201609-201904
BLACK,TRIM2#
main71072-47D90-B1i201905
COOL GRAY,TRIM1#
main71072-47D90-C1i201905
BLACK,TRIM2#
main71072-47E10-B2i201905
COOL GRAY,TRIM1#
main71072-47E10-B2i201905
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#
main71072-47E10-C2i201905
BLACK,TRIM2#
main71072-47E10-C2i201905
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-47610-B6i201609-201904
COOL GRAY,TRIM1#
sub71074-47610
main71074-47610-C5i201609-201904
BLACK,TRIM2#
sub71074-47610
main71074-47800-B0i201609-201904
COOL GRAY,TRIM1#
main71074-47800-C0i201609-201904
BLACK,TRIM2#
main71074-47870-B0i202007
COOL GRAY,TRIM1#
main71074-47870-C0i202007
BLACK,TRIM2#
main71074-47B10-B1i201905-202007
COOL GRAY,TRIM1#
main71074-47B10-C1i201905-202007
BLACK,TRIM2#
main71074-47C90-B9i201905-202007
COOL GRAY,TRIM1#
main71074-47C90-C9i201905-202007
BLACK,TRIM2#
main71074-47D10-B0i202007
COOL GRAY,TRIM1#
main71074-47D10-B0i202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#
main71074-47D10-C0i202007
BLACK,TRIM2#
main71074-47D10-C0i202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-47150i201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main71512-47160i201609-201904
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-47230i201609-202007
main71552-47300i202007
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010i¥200201609-201904
71751HANGER, SEAT COVER
main71751-47050¥530
71759BHOOK, FRONT SEATBACK
main71759-50040i¥130202007
main71759-52050i¥130201609-202007
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33400-C0i202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#
main71812-33400-C0i202007
BLACK,TRIM1#,2#
main71812-47130-C0i201609-201610
BLACK,TRIM1#,2#
sub71812-47130¥2,330
main71812-47130-C1i201610-201904
BLACK,TRIM1#,2#
sub71812-47130¥2,330
main71812-47150-C0i201609-201610
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#
sub71812-47150
main71812-47150-C0i201609-201610
BLACK,TRIM1#,2#
sub71812-47150
main71812-47150-C1i201610-202007
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#
sub71812-47150
main71812-47150-C1i201610-202007
BLACK,TRIM1#,2#
sub71812-47150
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33010i¥3,040201703-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main7181B-47010i¥1,220201609-201904
main7181B-47020i201609-201703
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
71825BRACKET, FRONT SEAT SIDE, NO.1 LH
main72714-47010i¥450201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C0i201609-201610
BLACK,TRIM1#,2#
sub71862-47090¥1,090
main71862-47090-C1i201610-201904
BLACK,TRIM1#,2#
sub71862-47090¥1,090
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-47010-C0i201609-201610
BLACK,TRIM1#,2#
main71868-47010-C0i201609-201610
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#
main71868-47010-C1i201610-201904
BLACK,TRIM1#,2#
main71868-47010-C1i201610-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-47080i¥920201609-201904
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i¥740201609-201904
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-47090i¥570201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-47080-C0i201609-201610
BLACK,TRIM1#,2#
sub71876-47080¥1,090
main71876-47080-C1i201610-201904
BLACK,TRIM1#,2#
sub71876-47080¥1,090
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47040-C0i201609-201610
BLACK,TRIM1#,2#
sub71876-47040¥1,170
main71876-47040-C1i201610-201904
BLACK,TRIM1#,2#
sub71876-47040¥1,170
71910AHEADREST ASSY, FRONT SEAT
main71910-47420-B1i201609-201904
COOL GRAY,TRIM1#
main71910-47420-B4i201905
COOL GRAY,TRIM1#
main71910-47420-C1i201609-201904
BLACK,TRIM2#
main71910-47420-C4i201905
BLACK,TRIM2#
main71910-47430-20i201905
BLACK,TRIM2#
main71910-47430-B1i201609-201904
COOL GRAY,TRIM1#
main71910-47430-B7i201905
COOL GRAY,TRIM1#
main71910-47430-C1i201609-201904
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-B0i201905
W(LOCK),COOL GRAY,TRIM10
main71930-47050-B0i201609-201904
W(LOCK),COOL GRAY,TRIM1#
main71930-47050-B9i201905
W(LOCK),GRAY,TRIM10
main71930-47050-C0i201609-201610
W(LOCK),BLACK,TRIM2#
main71930-47050-C5i201610-201904
W(LOCK),BLACK,TRIM2#
main71931-47030-B0i201609-201904
W/O(LOCK),COOL GRAY,TRIM1#
main71931-47030-B0i201905
W/O(LOCK),COOL GRAY,TRIM10
main71931-47030-C0i201609-201610
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4i201610-201904
W/O(LOCK),BLACK,TRIM2#
main71931-47030-P0i201905
W/O(LOCK),GRAY,TRIM10
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-47410i201609-201907
sub72020-47411
main72020-47411i201907
main72020-47440i201609-201703
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main72020-47441i201703-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
72108RAIL SUB-ASSY, SEAT TRACK, UPPER LH
main72108-33040i201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main72108-33040i201905
FRONT SEAT-*DRS(POWER SEAT)
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-47060i¥320201609-201904
72125QCOVER, SEAT TRACK, UPPER REAR NO.4
main72125-47010i¥450201803-201904
main72125-47020i¥160201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
sub72125-47010¥450
main72125-47020i¥160201609-201803
sub72125-47010¥450
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-47060i¥320201609-201904
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i¥430201609-201904
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-47080i¥460201609-201904
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010i¥160201609-201904
main72265-47020i¥160201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-33140i¥20,300201905
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main72760-11020i201804-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main72760-47030i201609-201803
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-47120i201609-202007
main73920-47150i202007
79197HOOK, SEATBACK COVER
main79197-47010¥70
79977HFELT, FRONT SEATBACK, LH
main79977-33030i¥1,080201804-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
8202
8401
85822BMOTOR ASSY, POWER SEAT TILT, LH
main85801-47040i¥13,600201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)
main85801-47060i¥13,600201905
KOREA SPEC&WITH(HEAD UP DISPLAY)
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
main85801-47030i¥13,600201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-47170i¥11,900201609-201904
KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT)
main87510-47190i¥11,900201609-201904
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-47040i¥11,900201609-201904
9011910601
main90119-10601¥90
9014810007
main90148-10007¥60
9046707215
main90467-07215¥80
9356054012
main93560-54012¥60
9415180800
main94151-80800¥80
9418560600
main94185-60600¥70

46 parts on this diagram · 6 diagrams in section
