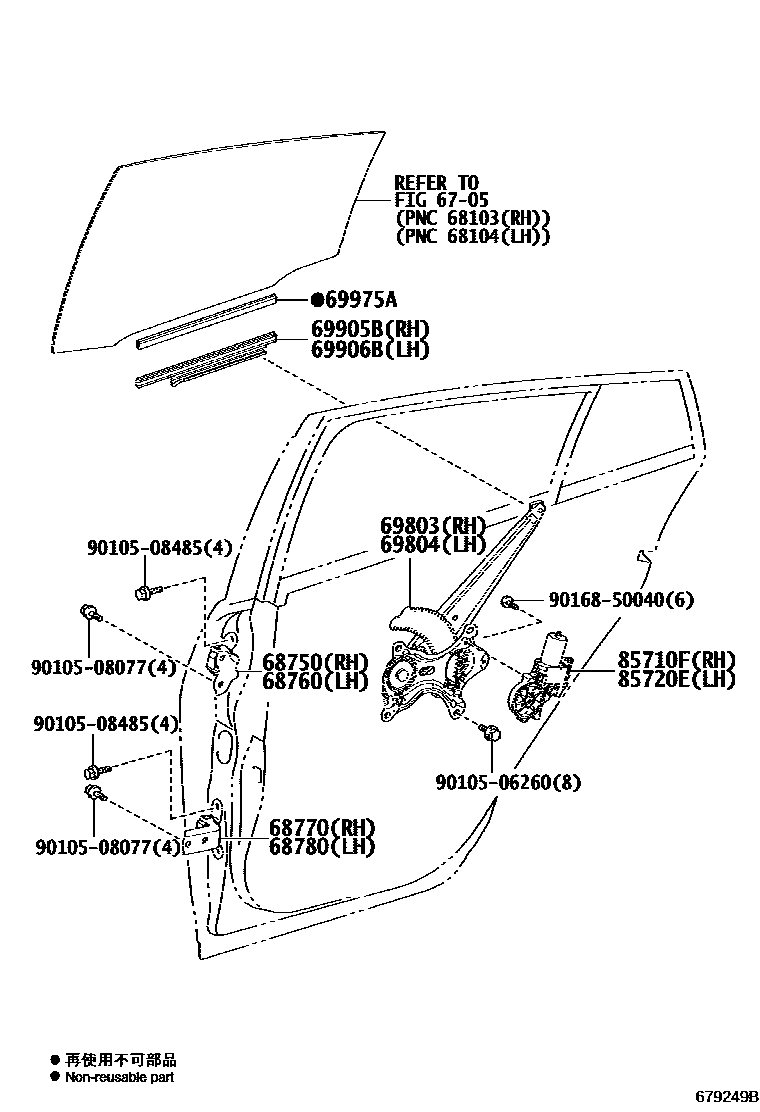

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iZVW52201609-201904

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iZVW52201609-201904

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZVW52201609-201904

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZVW52201609-201904

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-47020iZVW52201609-201904

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-47020iZVW52201609-201904

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iZVW52201609-201904

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iZVW52201609-201904

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-47020×2iZVW52201609-201904

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-47150iZVW52201609-201904

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-47150iZVW52201609-201904

9010506260

main90105-06260

9010508077

main90105-08077

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
