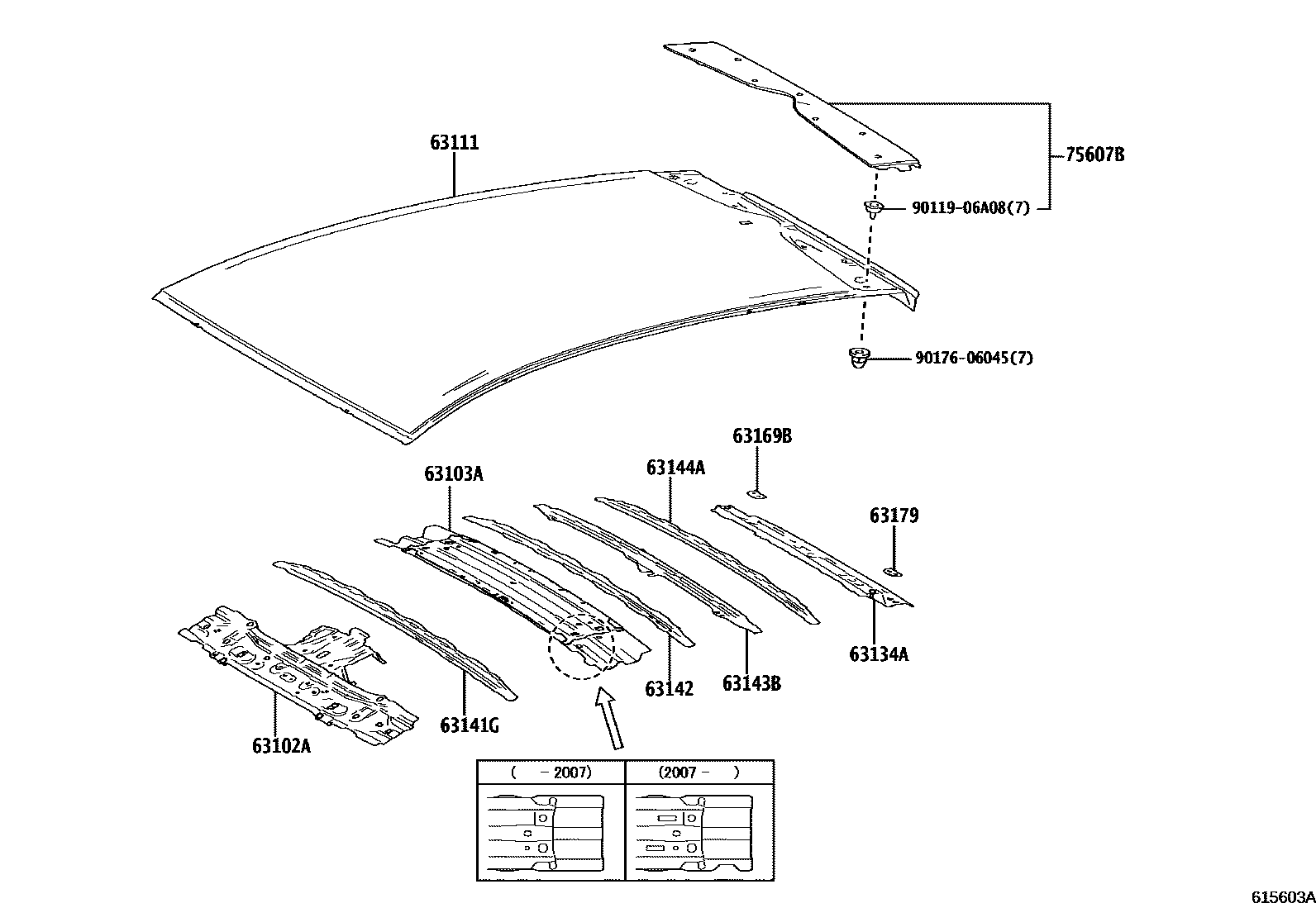

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47902iZVW52201609-201904

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47040iZVW52201609-202007

sub63103-47050

main63103-47050iZVW52202007

63111PANEL, ROOF

main63111-47060iZVW52201609-201904

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-47040iZVW52201609-201904

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-47040iZVW52201609-201904

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-47050iZVW52201609-201904

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-47050iZVW52201609-201904

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63177-47010iZVW52201609-201904

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iZVW52201609-201904

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iZVW52201609-201904

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-47010iZVW52201609-201904

9011906A08

main90119-06A08

9017606045

main90176-06045

13 parts on this diagram · 1 diagram in section
