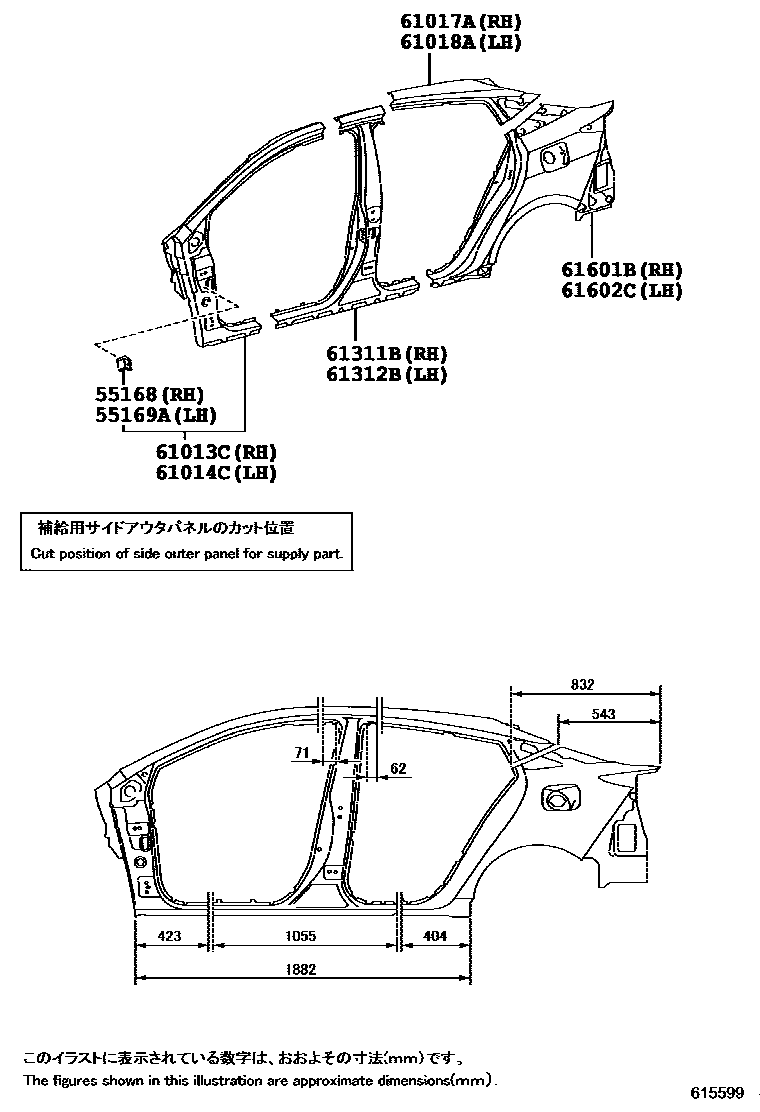

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

55168BRACKET, FRONT FENDER MOUNTING, RH

main53879-68020iZVW52201609-201904

55169ABRACKET, FRONT FENDER MOUNTING, LH

main53879-68020iZVW52201609-201904

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-47020iZVW52201609-201710

sub61013-47021

main61013-47021iZVW52201711-201908

sub61013-47022

sub90333-30008

main61013-47022iZVW52201908

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-47010iZVW52201609-201710

sub61014-47011

main61014-47011iZVW52201711-201908

sub61014-47012

sub61014-47020

sub90333-30008

main61014-47012iZVW52201908

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-47010iZVW52201609-201904

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-47010iZVW52201609-201904

61311BPILLAR, CENTER BODY, OUTER RH

main61311-47050iZVW52201609-201904

61312BPILLAR, CENTER BODY, OUTER LH

main61312-47040iZVW52201609-201904

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-47160iZVW52201609-202211

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-47160iZVW52201609-201812

main61602-47180iZVW52201812-202211

10 parts on this diagram · 3 diagrams in section
