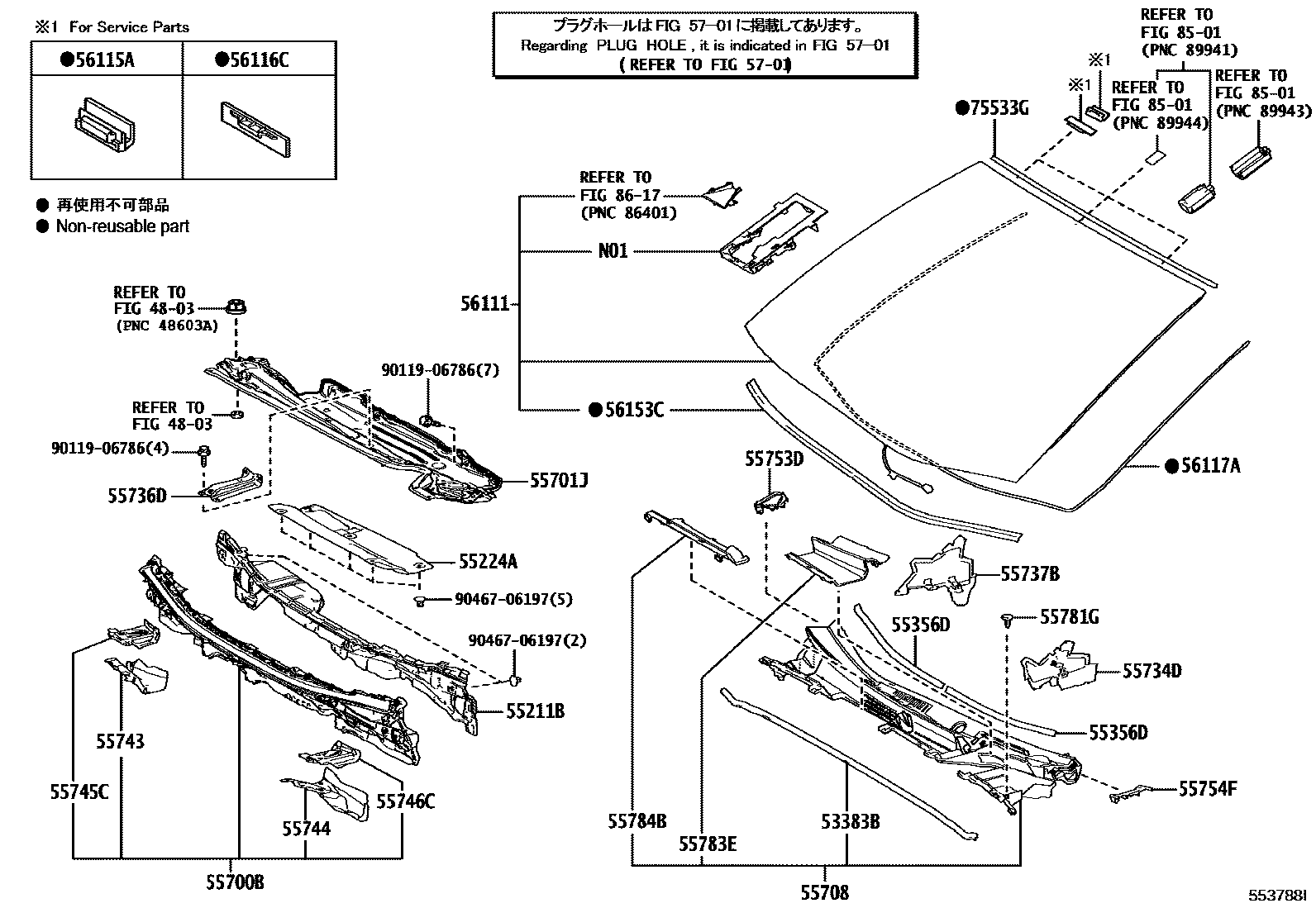

COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55734DPLATE, WATER GUARD
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55745CREINFORCEMENT, COWL TOP, INNER RH
55746CREINFORCEMENT, COWL TOP, INNER LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2947,KOREA SPEC&WITH(HEAD UP DISPLAY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-KOREA SPEC(*BT & USB & 6SPEAKER)
*D,L=2947,CANADA SPEC&WITH(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-11-INCH, AVN & WI-FI & *BT & USB & JBL
*D,L=2947,WITH(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-11-INCH, AVN & WI-FI & *BT & USB & JBL&TELEMATICS-WITH(USA)
*D,L=2947
*D,L=2947,HAWAII SPEC&WITH(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-11-INCH, AVN & WI-FI & *BT & USB & JBL
*D,L=2947,USA L2 PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-11INCH, AVN & JBL & SMARTPHONE
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8501
8617
9011906786
9046706197
31 parts on this diagram · 2 diagrams in section
