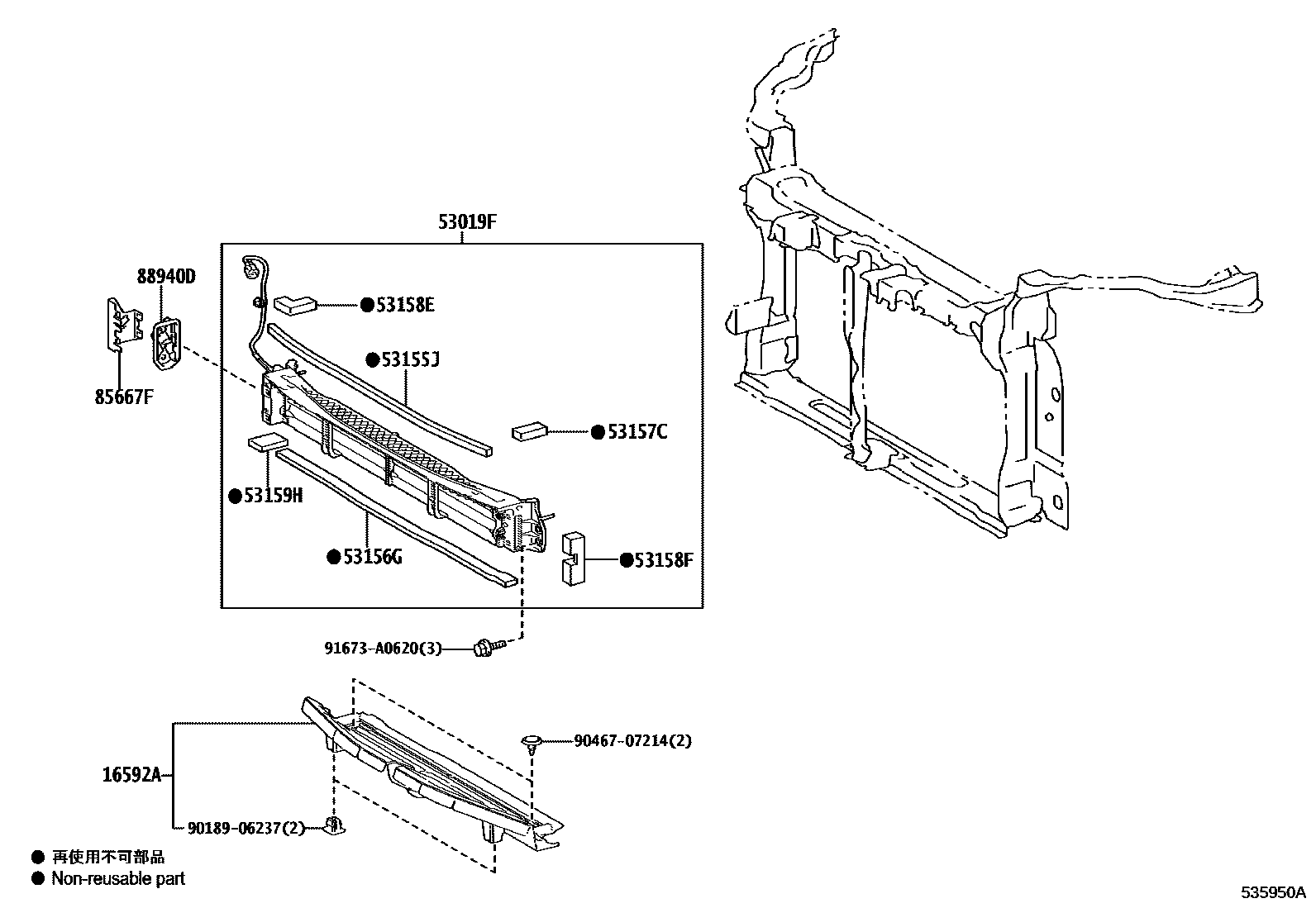

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1AIR GUIDE 0004 1RADIATOR SUPPORT & FENDER APR

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37010i2ZRFXE..ZVW52201609-201805

main16592-37110i2ZRFXE..ZVW52201805-201904

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-12010iZVW52201905

main53019-47010iZVW52201609-201707

main53019-47011iZVW52201707-201904

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-12100iZVW52201905

main53155-47030iZVW52201609-201904

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-12040iZVW52201905

main53156-47010iZVW52201609-201707

L=800

main53156-47030iZVW52201707-201904

L=775

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-12010iZVW52201905

main53157-47020iZVW52201609-201904

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-47010iZVW52201609-201904

53158FSEAL, RADIATOR GRILLE, NO.4

main53158-12010iZVW52201905

main53158-47020iZVW52201609-201904

53159HSEAL, RADIATOR GRILLE, NO.5

main53159-47030iZVW52201609-201904

85667FCOVER, MOTOR

main85667-47010iZVW52201609-201904

88940DACTUATOR ASSY, SWING GRILLE

main88940-47030iZVW52201609-201706

sub88940-47031

main88940-47031iZVW52201707-201904

main88940-47080iZVW52201905-202007

main88940-47081iZVW52202007

sub88940-47082

9018906237

main90189-06237

9046707214

main90467-07214

91673A0620

main91673-A0620

13 parts on this diagram · 4 diagrams in section
